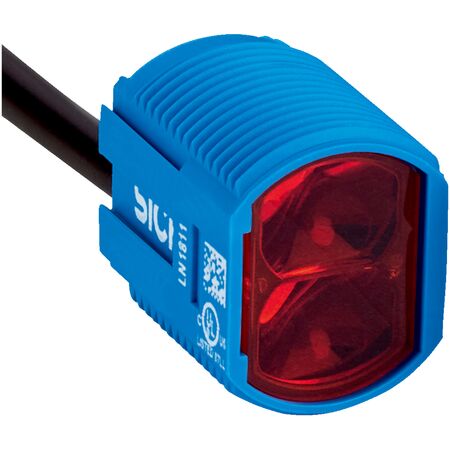

Photoelectric Retro-Reflective Sensor | IP67 Rated | 6.8m Sensing Range | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor ZLD18-6PZ1G2 is designed for industrial automation, offering a sensing range of up to 6.8 meters and a fast response time of ≤ 500 µs. With an IP67 rated enclosure, it ensures reliable performance in dusty and wet environments, making it ideal for manufacturing process control and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, light switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection: 4-wire cable, 2 m length, PVC insulation
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Wave length: 625 nm
- Light spot size: Ø 25 mm at 1000 mm distance
- Dimensions (H x L x W): 18mm x 23mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Sensing range up to 6.8 meters
- High switching frequency of 1,000 kHz and fast response time ≤ 500 µs
- IP67 rated enclosure for dust and water protection
- Wide operating temperature range from -40°C to +55°C
- Polarisation filter included to reduce interference
- M18 threaded housing with hybrid light emission design
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems requiring precise sensing
- Material handling and packaging lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLD18-6PZ1G2 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
