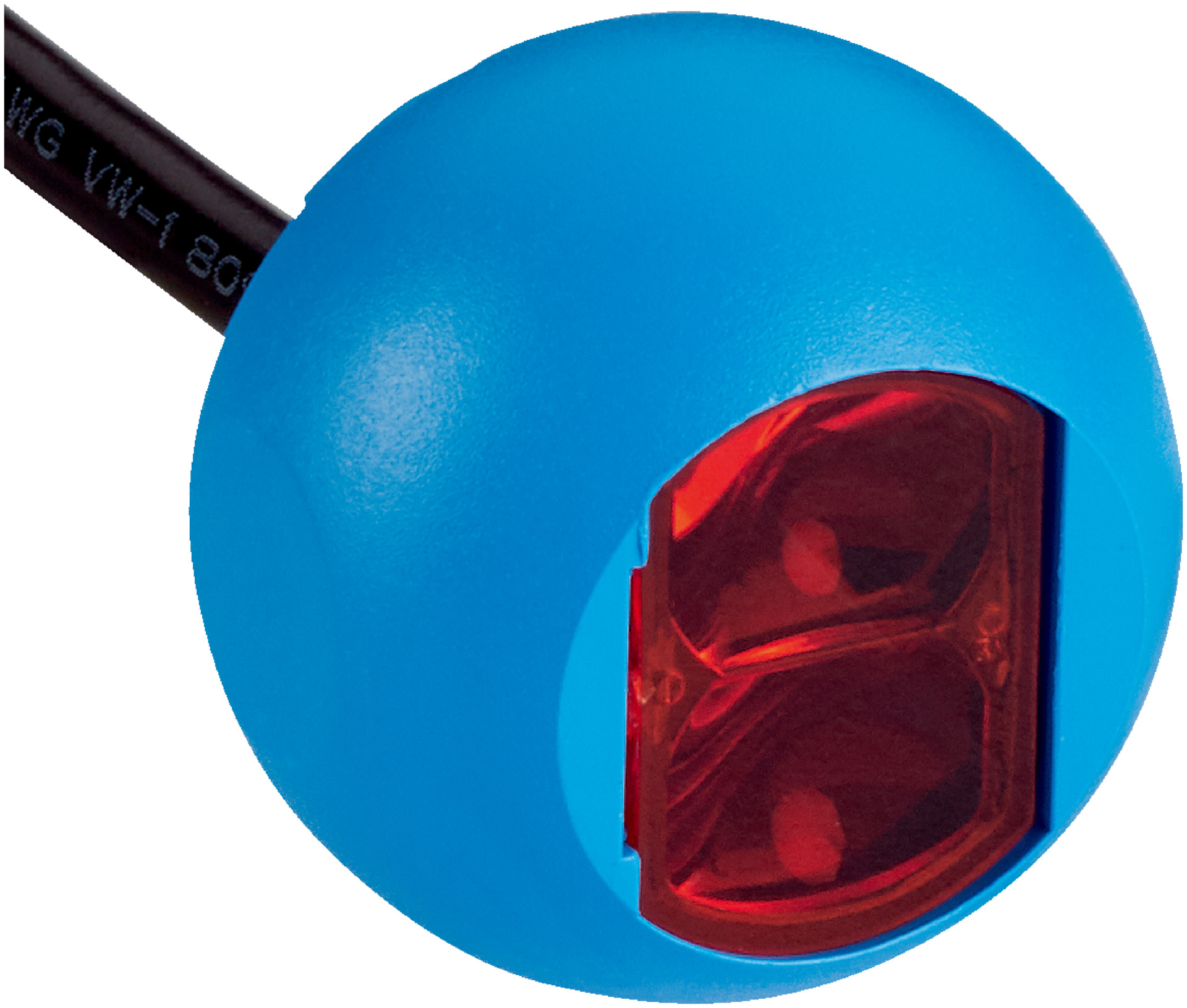

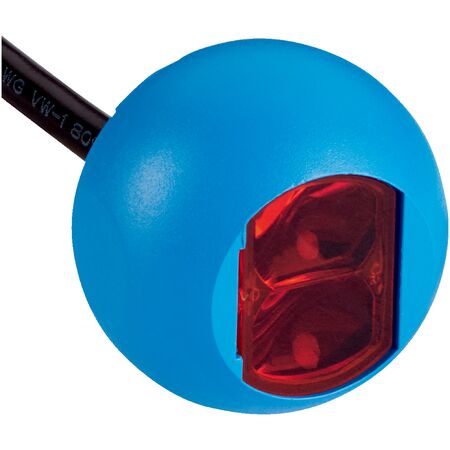

Photoelectric Retro-Reflective Sensor | IP67 Rated | 6.8m Sensing Range | 1000 kHz Switching Frequency | by SICK
The Photoelectric Retro-Reflective Sensor ZLD18-8AB1G2 is designed for industrial automation, featuring a sensing range of up to 6.8 meters and a high switching frequency of 1,000 kHz. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Output current max: 100 mA
- Switching output: Push-pull PNP/NPN
- Switching modes: Light switching and Dark switching
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Cable length: 2 m, 4-wire open end
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: –40 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Weight: 4.6 g
- Dimensions (H x L x W): 24mm x 26mm x 23mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light PinPoint LED with 625 nm wavelength
- Sensing range up to 6.8 m, maximum 7.8 m
- Push-pull PNP/NPN switching output with light and dark switching modes
- High switching frequency of 1,000 kHz and response time ≤ 500 µs
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from –40 °C to +55 °C
- Polarisation filter included to reduce false triggering
- Cable open end, 4-wire, 2 m length with plastic PVC insulation
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Material handling and packaging systems
- Safety and security systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- RoHS compliant, minimizing hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLD18-8AB1G2 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
