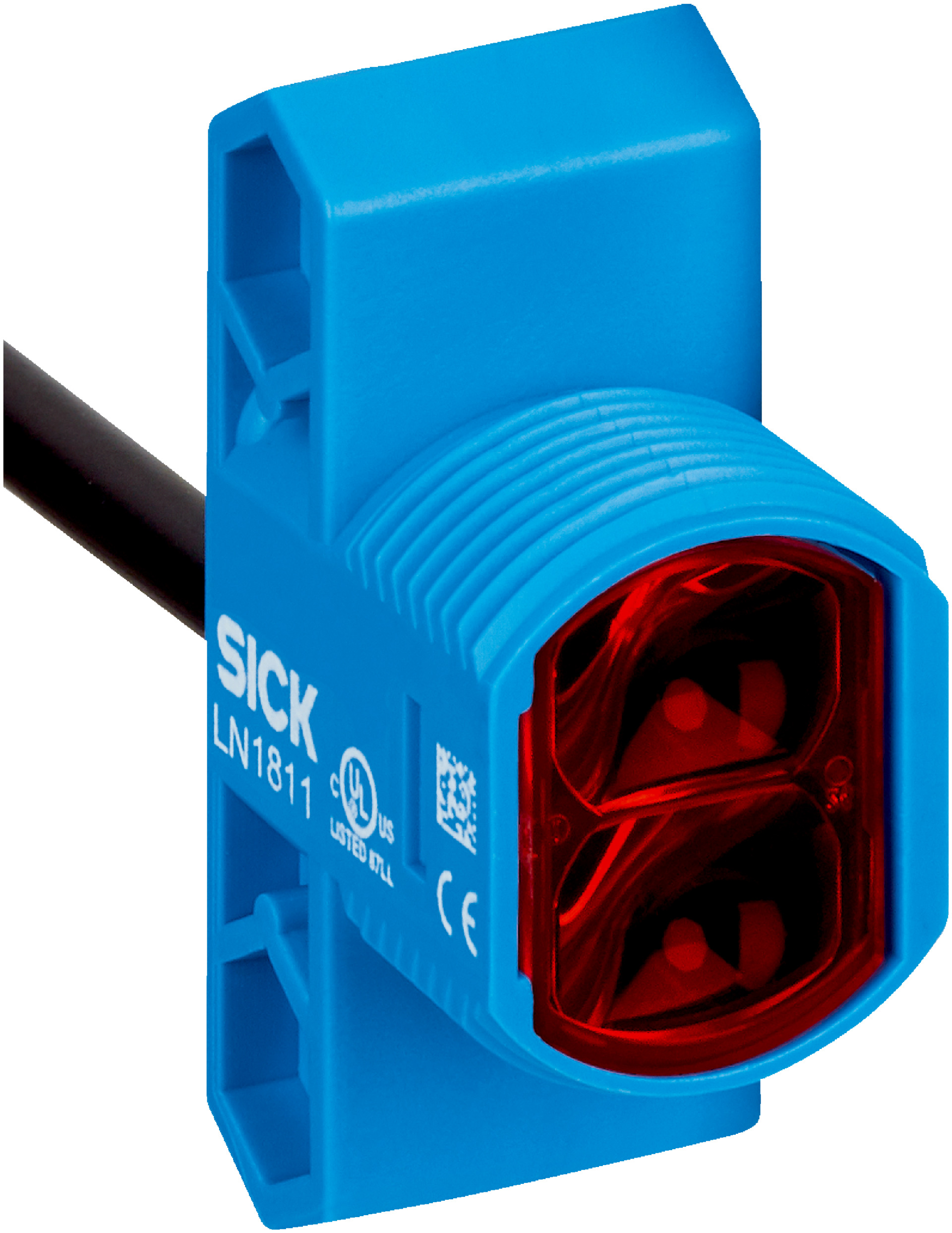

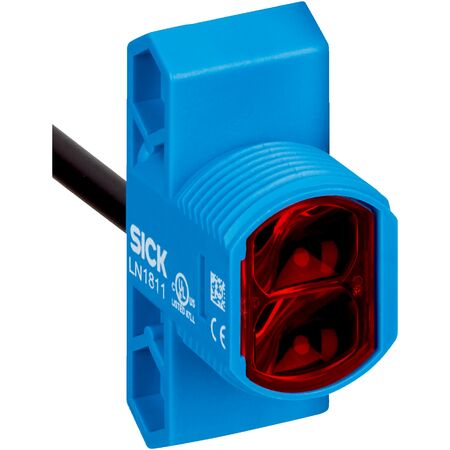

Photoelectric Retro-Reflective Sensor | IP67 Rated | 6.8m Sensing Range | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor ZLD18-1FZDG2 is designed for industrial automation, featuring a sensing range of up to 6.8 meters and an IP67 rated enclosure for dust and water protection. With a fast response time of ≤ 500 µs and a dual lens system, it ensures precise object detection in manufacturing and safety applications, making it ideal for material handling and process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, dark switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Cable: Plastic PVC, 2 m length, 0.13 mm² conductor cross section
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Wave length: 625 nm
- Light spot size at 1000 mm: Ø 25 mm
- Polarisation filter included
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 34.8mm x 23mm x 13.6mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Sensing range up to 6.8 meters
- Hybrid housing design with M18 thread diameter
- IP67 rated enclosure for dust and water protection
- Dark switching PNP output with fast response time ≤ 500 µs
- Operating temperature range from -40 °C to +55 °C
- Terminal connection Wago 733-104, 4-pin, 2 m cable included
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems requiring precise sensing
- Material handling and packaging lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLD18-1FZDG2 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
