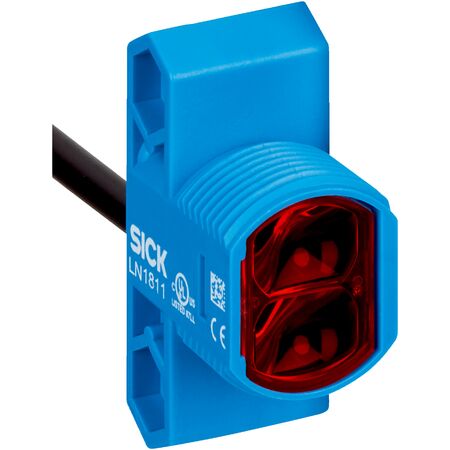

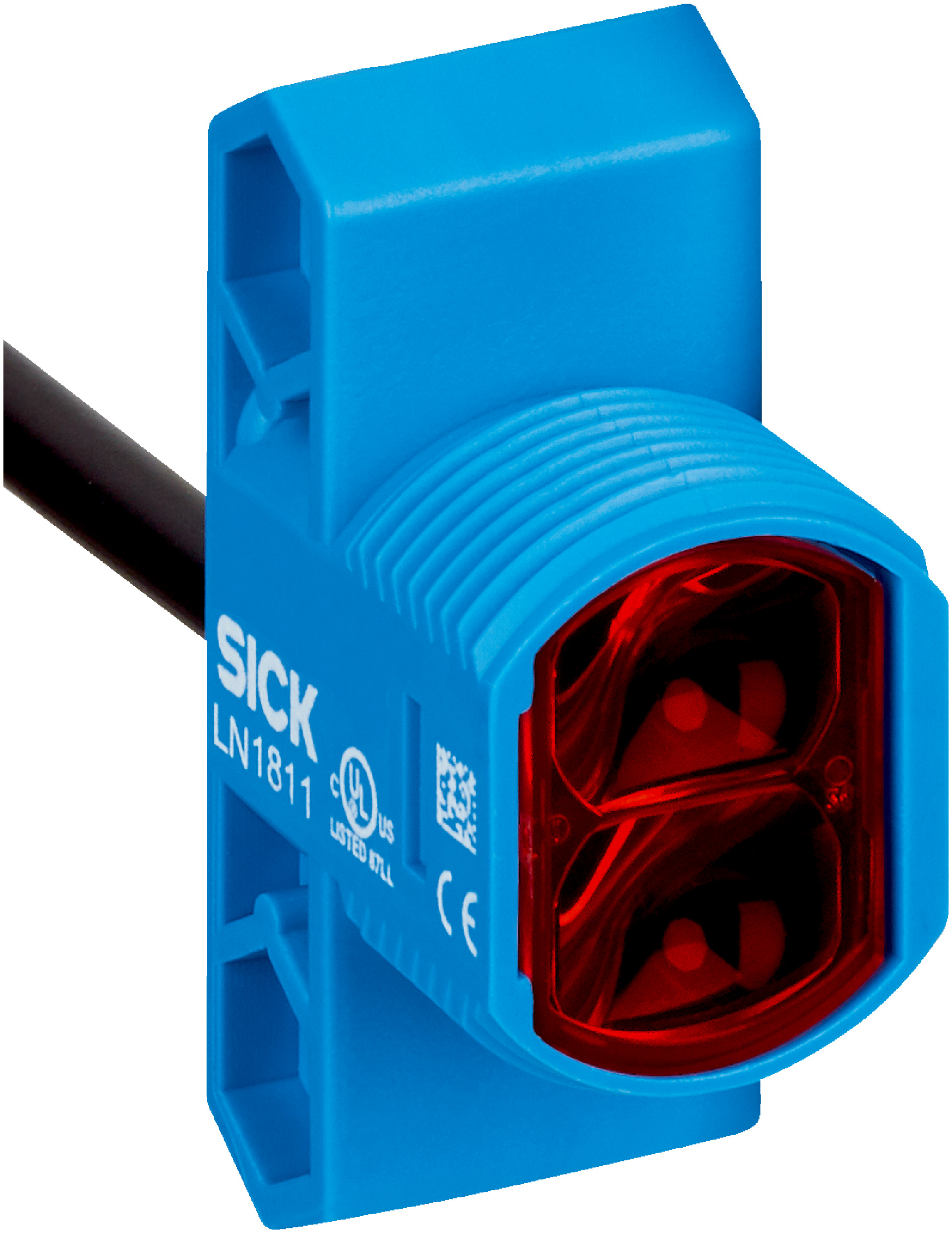

Photoelectric Retro-Reflective Sensor | IP67 Rated | 6.8m Sensing Range | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor ZLD18-1FZCE2 is designed for industrial automation, featuring a sensing range of up to 6.8 meters and a fast response time of ≤ 500 µs. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for manufacturing process control and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, dark switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Light wavelength: 625 nm
- Light spot size at 1000 mm: Ø 25 mm
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Cable material: Plastic PVC
- Conductor cross section: 0.13 mm²
- Enclosure rating: IP67
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 35mm x 23mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Sensing range up to 6.8 meters
- Hybrid housing design with blue color
- M18 mounting system for head or side installation
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40°C to +55°C
- Fast response time of ≤ 500 µs and switching frequency of 1,000 kHz
- PNP switching output with dark switching mode
- Terminal connection Wago 733-103, 3-pin, 1 meter cable
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLD18-1FZCE2 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
