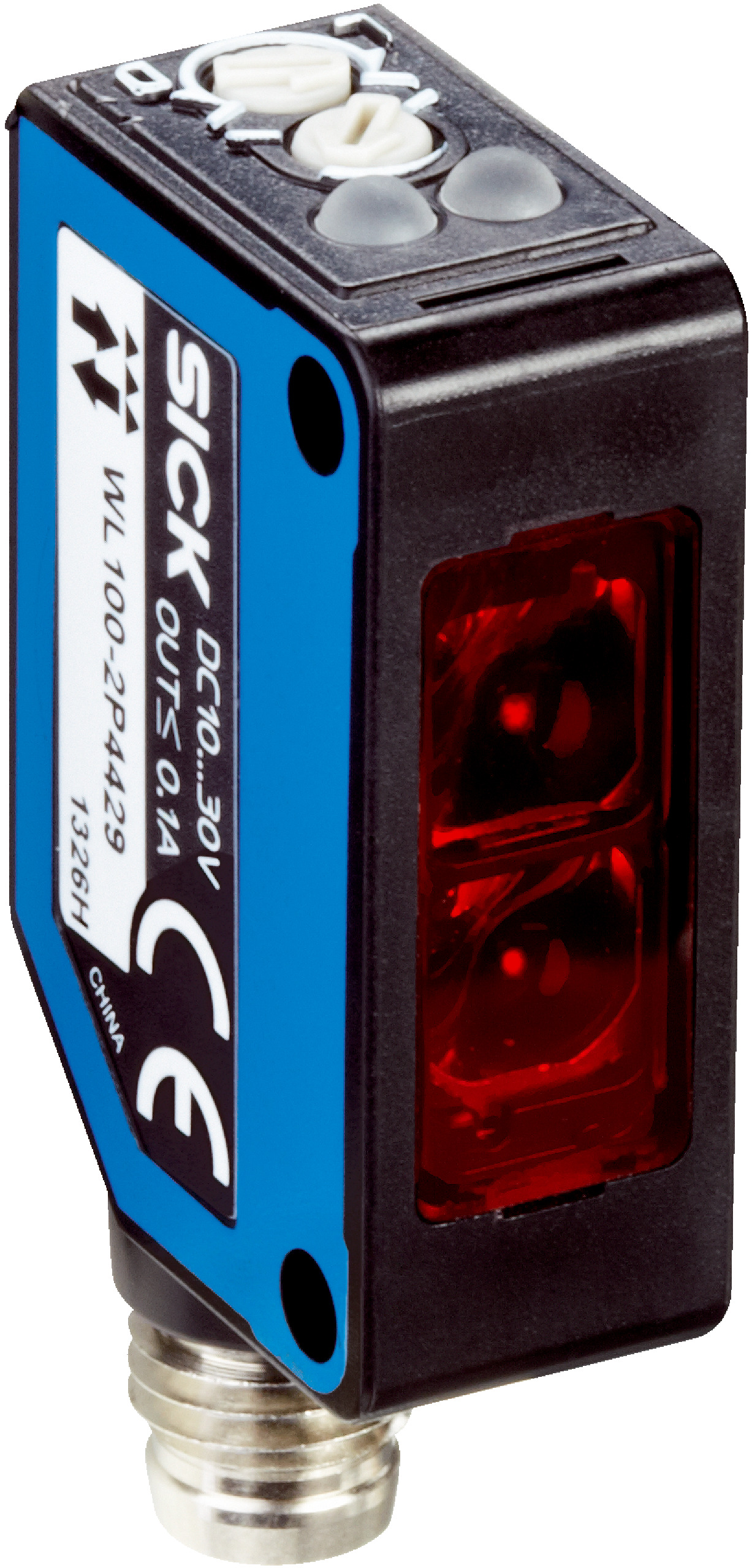

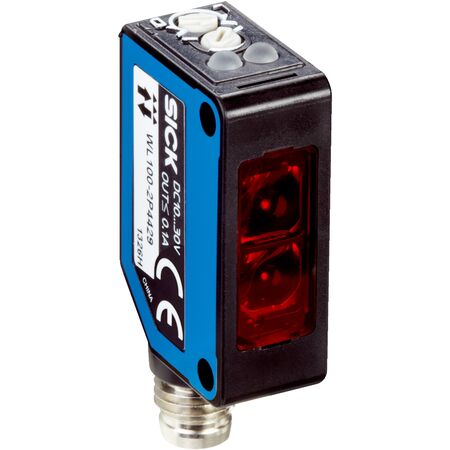

Photoelectric Retro-Reflective Sensor WL100-2P4429 | IP67 Rated | Dual Lens System | 0.01m to 2.5m Range | by SICK
The Photoelectric Retro-Reflective Sensor WL100-2P4429 is designed for precise object detection in industrial automation. With a sensing range of 0.01m to 2.5m and a dual lens system, it excels in detecting transparent objects on conveyor systems and packaging lines. Its IP67 rated enclosure ensures durability against dust and water, making it ideal for various manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Switching mode: Light/dark selectable
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: Male connector M8, 4-pin
- Protection class: III
- Housing material: Plastic (ABS/PC/POM)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Visible red light LED with wavelength 632 nm
- Sensing range from 0.01 m to 2.5 m
- Potentiometer for sensitivity adjustment
- Selectable light/dark switching mode
- IP67 rated enclosure for dust and water protection
- Includes mounting bracket and reflector
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing
- Use in conveyor systems and packaging lines
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 housing reduces waste by extending product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WL100-2P4429 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
