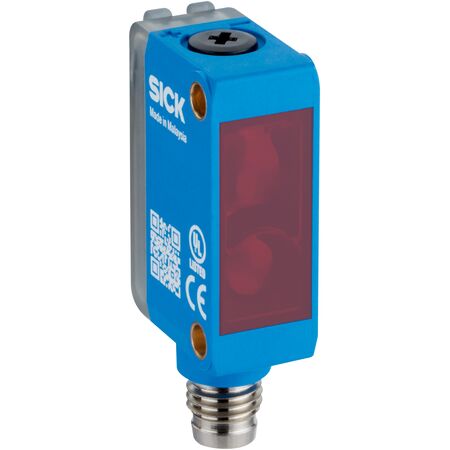

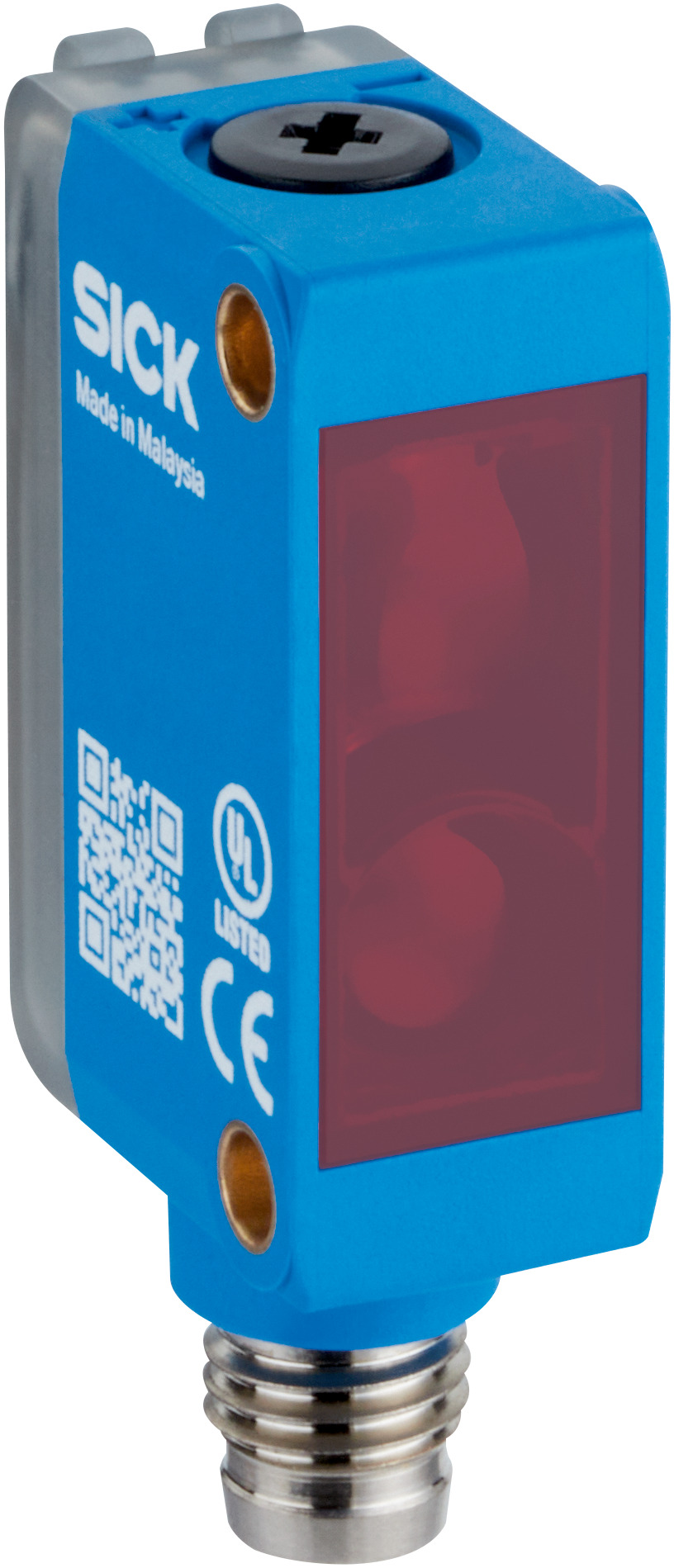

Photoelectric Retro-Reflective Sensor | IP67 Rated | Dual Lens System | 0.03m to 6m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor GLD6SP-22812170ZZZ is designed for industrial automation, featuring a dual lens system for precise object detection. With a sensing range of 0.03m to 6m and an IP67 rating for dust and water protection, this sensor is perfect for safety and presence detection in manufacturing lines and material handling systems. Its robust design ensures reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA without load at 24 V
- Protection class: III
- Digital output: 1 PNP output with light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 625 µs
- Switching frequency: 1,000 Hz
- Enclosure rating: IP67
- Operating temperature: -30°C to +55°C
- Storage temperature: -40°C to +70°C
- Material: Plastic ABS housing, PMMA front screen, metal copper alloy connector
- Weight: Approx. 10 g
- Dimensions (H x L x W): 31.6mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.03 m to 6 m with recommended best performance range of 0.25 m to 1.6 m
- PinPoint LED visible red light with point-shaped light spot of Ø 11.5 mm at 350 mm
- Polarisation filter included to reduce interference
- LED risk group marking: Free group with wavelength 640 nm
- Average LED service life of 100,000 hours at 25°C
- Digital PNP output with light/dark switching mode and max output current of 100 mA
- Protection against reverse polarity, overcurrent, and short-circuit
- Response time ≤ 625 µs and switching frequency up to 1,000 Hz
- Robust plastic ABS housing with IP67 rating for dust and water protection
- Operating temperature range from -30°C to +55°C
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper electrical connections and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and presence detection in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation with low current consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GLD6SP-22812170ZZZ Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety detection applications.
