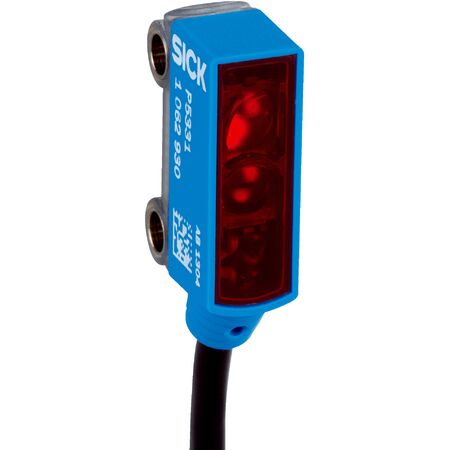

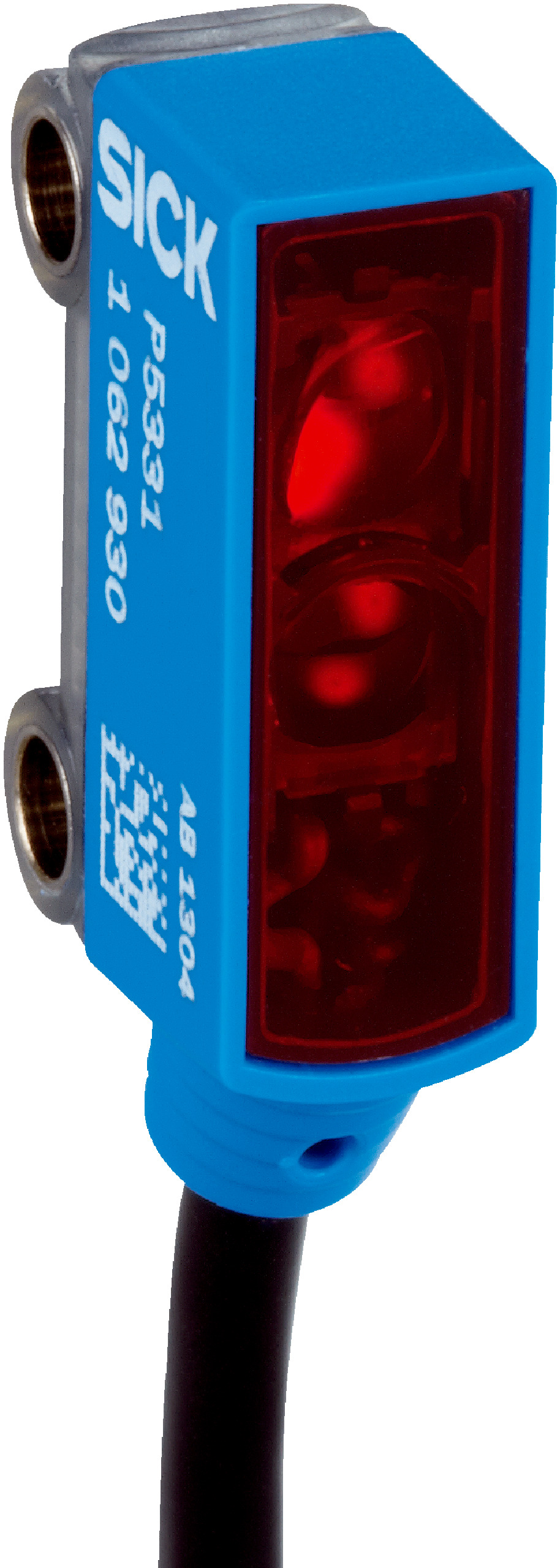

Photoelectric Retro-Reflective Sensor | IP67 Rated | Fast Response Time | Compact Design | by SICK
The Photoelectric Retro-Reflective Sensor WL2SG-2N1135 is designed for reliable object detection in industrial automation, featuring a sensing range of up to 1.2 meters and a fast response time of under 0.5 ms. With its IP67 rated enclosure, this sensor is perfect for detecting transparent objects in manufacturing and packaging applications, ensuring optimal performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN, light switching mode
- Maximum output current: ≤ 50 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Cable diameter: 3 mm
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Operating temperature range: -20 °C to +50 °C
- Storage temperature range: -40 °C to +75 °C
- Enclosure rating: IP67
- Wave length: 640 nm
- Light spot size: Ø 12 mm at 250 mm distance
- MTTFD: 2001 years
- Dimensions (H x L x W): 21.8mm x 13.5mm x 7.7mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red light with PinPoint LED light source
- Sensing range up to 1.2 meters
- AutoAdapt feature for optimized detection
- Polarisation filter for reliable detection of transparent objects
- Compact rectangular housing design
- IP67 rated enclosure for dust and water protection
- Fast response time under 0.5 ms and switching frequency of 1000 Hz
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards to ensure proper operation and compliance.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing
- Use in conveyor systems and packaging lines
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK WL2SG-2N1135 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and transparent object detection applications.
