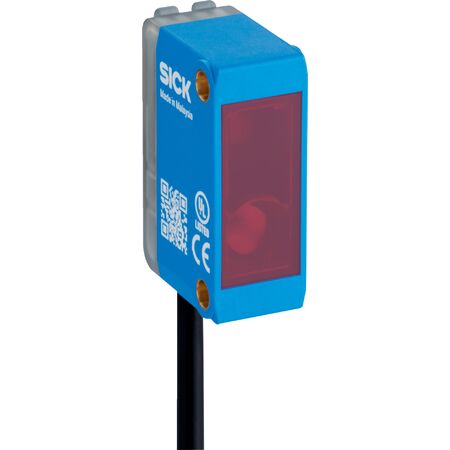

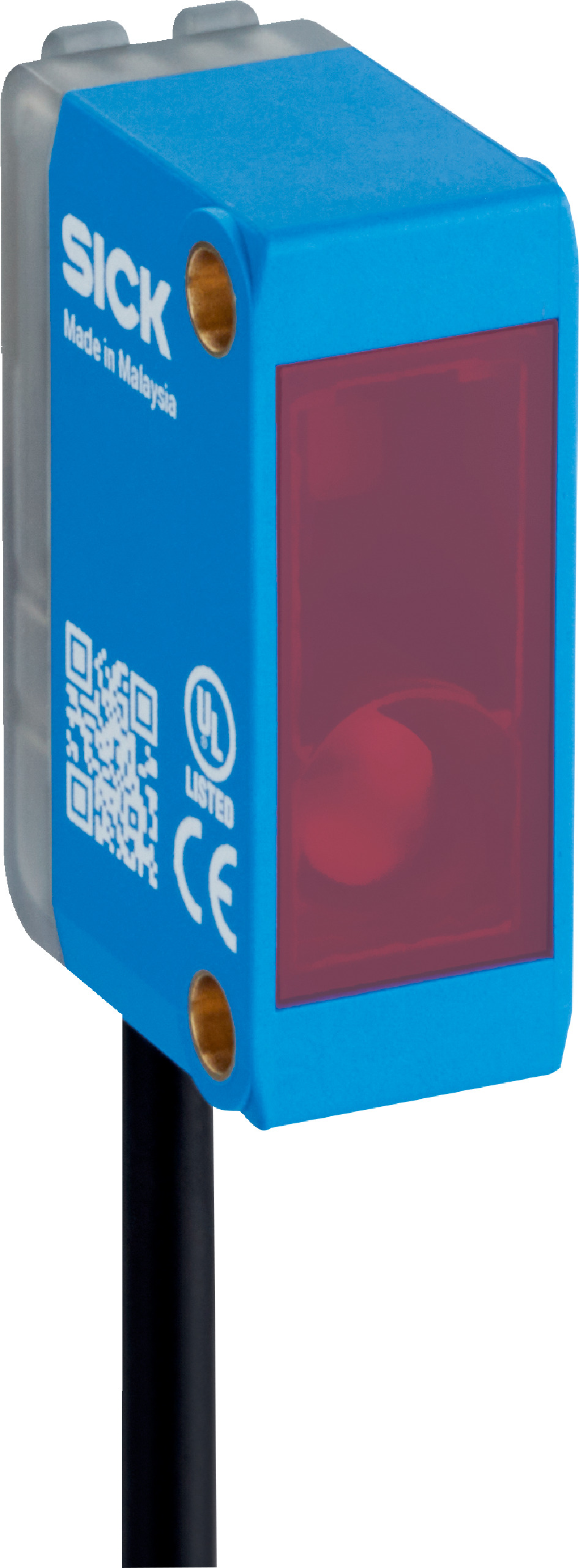

Photoelectric Retro-Reflective Sensor | IP67 Rated | Fast Response Time | Dual Lens System | by SICK
The GLD6SP-1GE121AEZZZ photoelectric retro-reflective sensor is designed for industrial automation, featuring a dual lens system for precise object detection. With an IP67 rating for dust and water protection, it operates effectively in harsh environments. Its fast response time of ≤ 625 µs and a sensing range of up to 6 m make it ideal for manufacturing process control and safety monitoring in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA at 24 V
- Output type: 1 x NPN open collector, light switching
- Output current max: ≤ 100 mA
- Response time: ≤ 625 µs
- Switching frequency: 1,000 Hz
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -30 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Cable: 3-wire, 2 m length, Ø 3.4 mm
- Housing material: Plastic ABS
- Front screen material: Plastic PMMA
- Dimensions (H x L x W): 31.6mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Sensing range from 0.03 m to 6 m with recommended best performance range of 0.25 m to 1.6 m
- Visible red light PinPoint LED with 640 nm wavelength and 100,000 hours average service life
- Polarisation filter included to reduce interference
- IP67 rated enclosure for dust and water protection
- Fast response time of ≤ 625 µs and switching frequency up to 1,000 Hz
- Reverse polarity, overcurrent, and short-circuit protected outputs
- Supplied with mounting bracket BEF-W100-A and Reflector P250
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor equipment to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Long LED service life reduces waste and replacement frequency
- Energy-efficient operation minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GLD6SP-1GE121AEZZZ photoelectric retro-reflective sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
