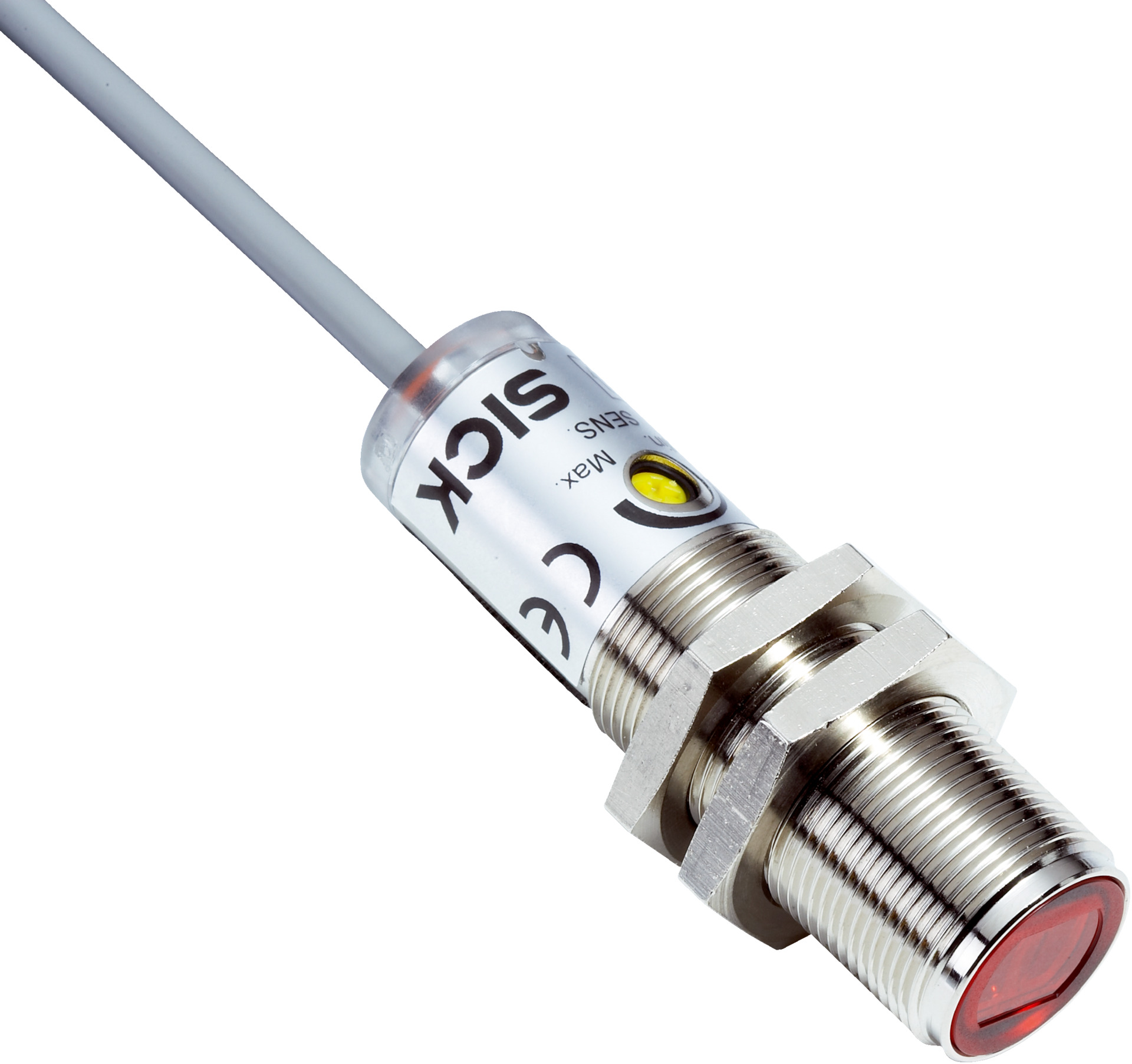

Photoelectric Retro-Reflective Sensor VL180-2N41131 | IP67 Rated | Fast Response Time | Dual Lens System | by SICK
The VL180-2N41131 Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a dual lens system for precise object detection and a fast response time of ≤ 0.5 ms. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for safety and presence detection in manufacturing lines, material handling, and robotics applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN transistor
- Switching mode: Light/dark switching selectable
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 4-wire cable, 2 m length, PVC insulation
- Protection class: III
- Operating temperature range: -25 °C to +55 °C
- Storage temperature range: -40 °C to +70 °C
- Housing material: Metal (nickel-plated brass) and plastic (PC)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Polarisation filter included
- Dimensions (H x L x W): 18mm x 63mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 645 nm
- Sensing range from 0.05 m to 6 m (max 7 m)
- Potentiometer adjustment with 270° sensitivity control
- Robust metal housing with nickel-plated brass and PC
- IP67 rated enclosure for dust and water protection
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Selectable light/dark switching mode via control cable
- Includes reflector P250 and fastening nuts
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct sensor alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Safety and presence detection in manufacturing lines
- Material handling and packaging systems
- Robotics and conveyor systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable construction minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK VL180-2N41131 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
