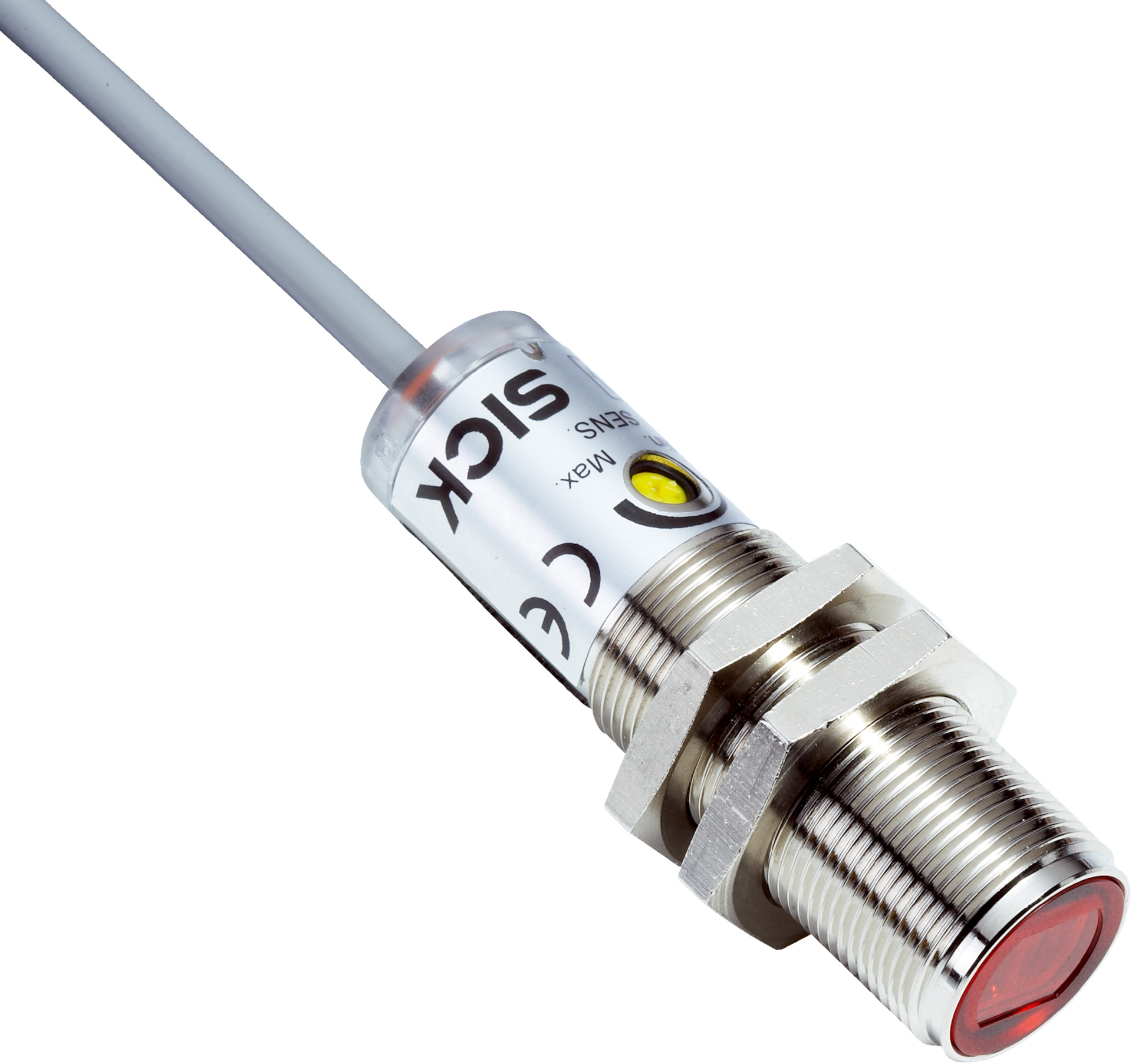

Photoelectric Retro-Reflective Sensor | IP67 Rated | Fast Response Time | Dual Lens System | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a dual lens system for precise object detection and a fast response time of ≤ 0.5 ms. With an IP67 rating for dust and water protection, this sensor is perfect for safety and monitoring in manufacturing processes, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Nickel-plated brass and PC
- Optics material: PMMA plastic
- Polarisation filter included
- Dimensions (H x L x W): 18mm x 63mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with wavelength of 645 nm
- Sensing range from 0.05 m to 6 m, max 7 m
- Potentiometer adjustment with 270° sensitivity control
- Selectable light/dark switching mode via control cable
- Robust metal housing with nickel-plated brass and PC
- IP67 rated enclosure for dust and water protection
- Polarisation filter and special device included
- Fast response time of ≤ 0.5 ms and switching frequency of 1000 Hz
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable metal housing extends product life reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK VL180-2N41131S02 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
