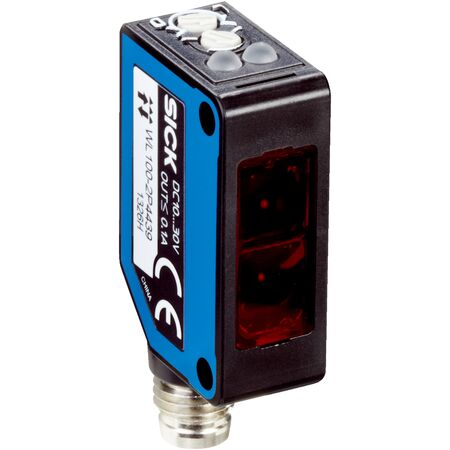

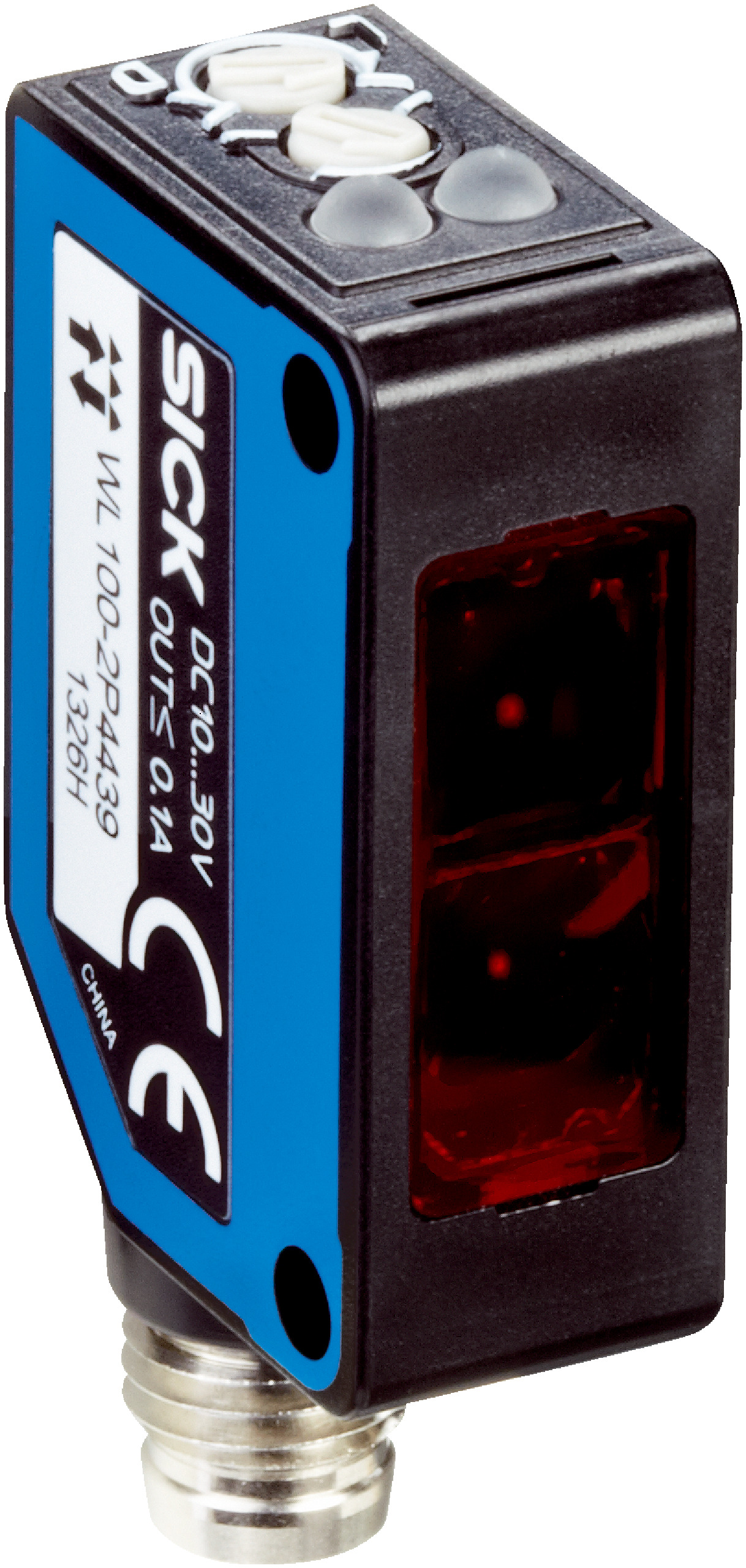

Photoelectric Retro-Reflective Sensor WL100-2P4439 | IP67 Rated | Fast Response Time | PNP Output | by SICK
The Photoelectric Retro-Reflective Sensor WL100-2P4439 is designed for industrial automation, featuring a dual lens system for precise object detection. With an IP67 rating for dust and water protection, this sensor operates efficiently in challenging environments. Its fast response time of ≤ 0.5 ms and selectable light/dark switching mode make it ideal for safety monitoring and material handling applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Switching mode: Light/dark selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Protection class: III
- Polarisation filter included
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP67
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 632 nm
- Sensing range from 0.01 m to 7.2 m
- Potentiometer for sensitivity adjustment
- IP67 rated enclosure for dust and water protection
- Plastic housing made of ABS/PC/POM and optics made of PMMA
- Selectable light/dark switching mode via rotary switch
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Male connector M8, 4-pin connection type
- Includes mounting bracket BEF-W100-A and reflector P250
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL100-2P4439 Photoelectric Retro-Reflective Sensor is available now for immediate purchase. Ideal for industrial automation and safety monitoring applications.
