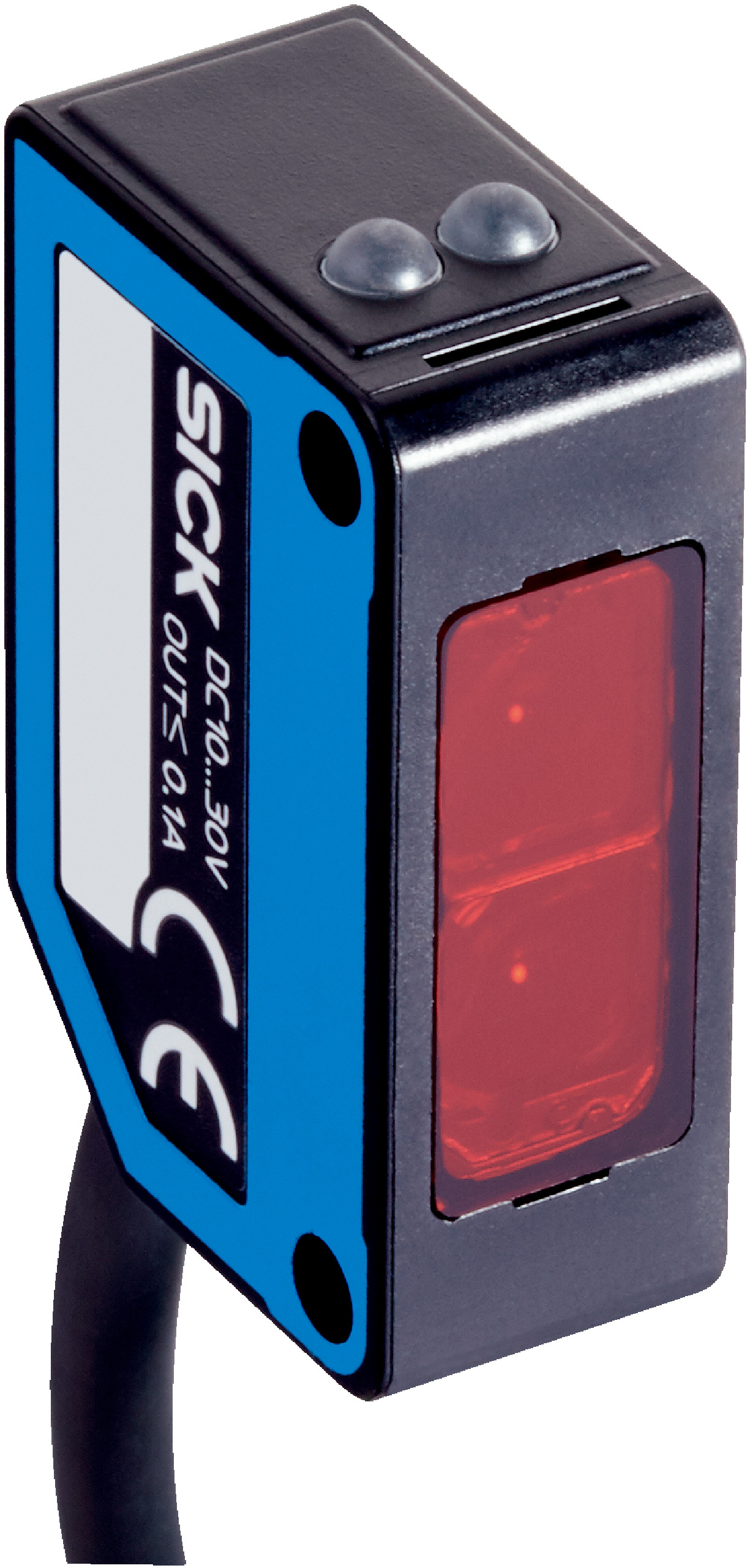

Photoelectric Retro-Reflective Sensor | IP67 Rated | Fast Response Time | PNP Output | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a fast response time of ≤ 0.5 ms and a sensing range of 0.01 m to 7.2 m. With an IP67 enclosure rating and a dual lens system, it ensures reliable object detection in various applications, including safety systems and manufacturing process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP, light switching mode
- Signal voltage PNP HIGH/LOW: UV - 1.8 V / approx. 0 V
- Maximum output current: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 3-wire cable, 3 m length, PVC material
- Conductor cross section: 0.18 mm²
- Circuit protection: Types A, B, D
- Protection class: III
- Housing material: Plastic ABS/PC/POM
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Light source: LED, visible red light, wavelength 632 nm
- Light spot size at 4 m distance: Ø 280 mm
- Polarisation filter included
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 632 nm
- Sensing range from 0.01 m to 7.2 m
- Rectangular housing design with IP67 enclosure rating
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- PNP switching output with light switching mode
- Polarisation filter included for improved detection reliability
- Wide ambient operating temperature range from –25 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Safety and security systems
- Material handling and packaging lines
- Manufacturing process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

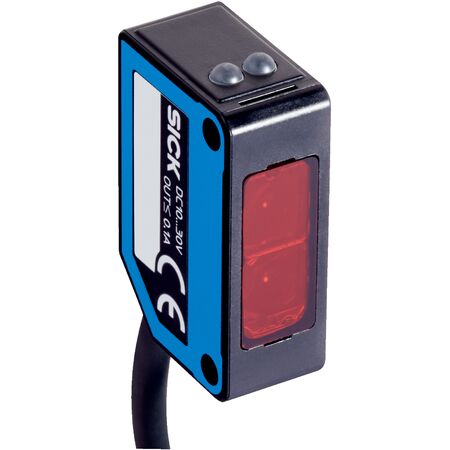

The SICK WL100-2P1332S07 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety system applications.
