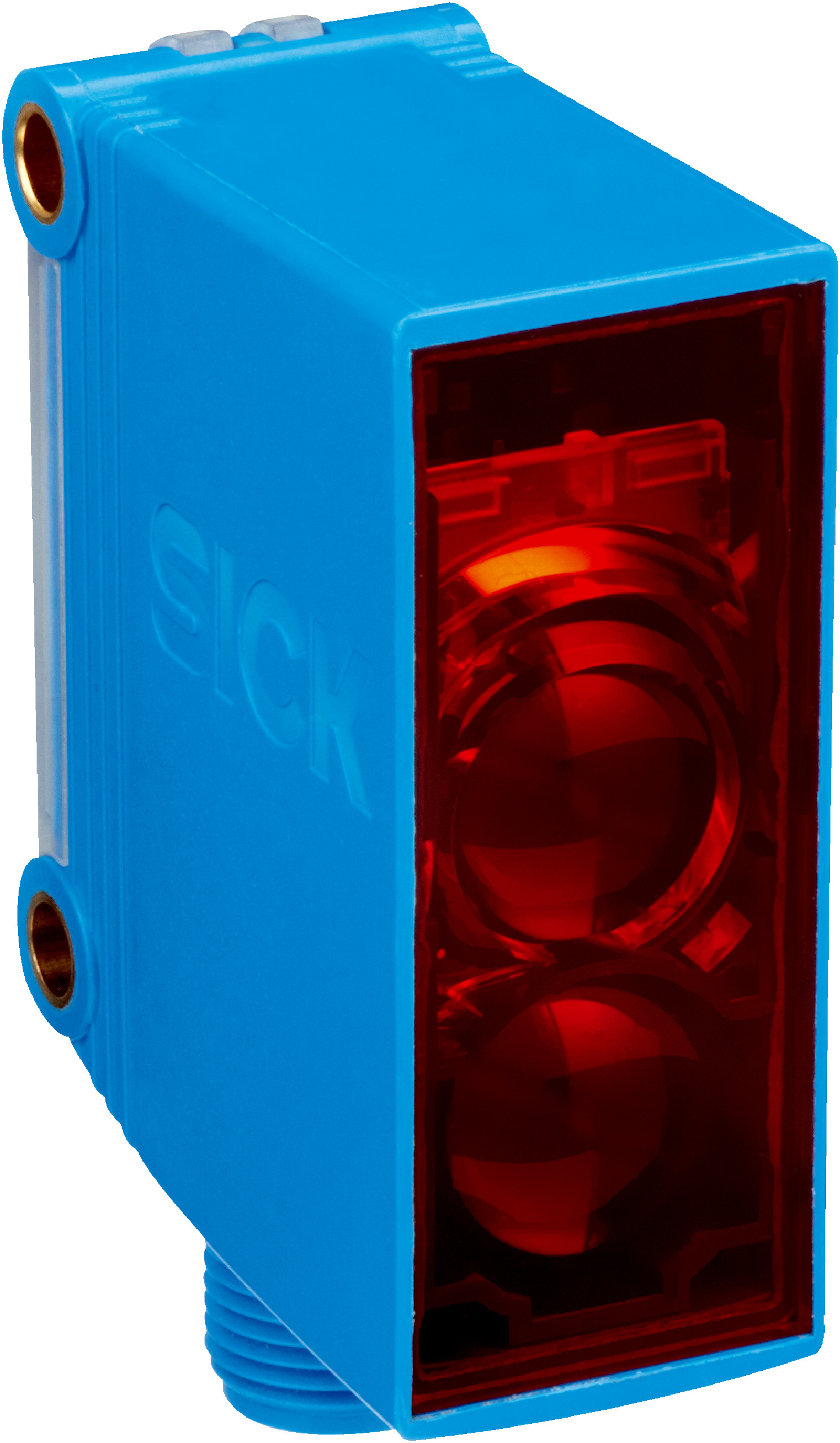

Photoelectric Retro-Reflective Sensor GL10-P4311 | IP67 Rated | Fast Response Time | PNP Output | by SICK
The GL10-P4311 Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of 0.08 m to 15 m and a fast response time of ≤ 500 µs. With an IP67 enclosure rating and a durable plastic housing, this sensor is perfect for safety and presence detection in manufacturing lines and material handling systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, dark switching
- Max output current: ≤ 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Housing material: Plastic (ABS/PMMA)
- Enclosure rating: IP67
- Light source: PinPoint LED, 625 nm wavelength
- Sensing range max: 0.08 m to 15 m
- Operating temperature: –30 °C to +60 °C
- EMC standard: EN 60947-5-2
- Dimensions (H x L x W): 50mm x 39mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED at 625 nm wavelength
- Sensing range from 0.08 m up to 15 m depending on reflector
- Rectangular plastic housing with IP67 enclosure rating
- Dark switching PNP output with max output current ≤ 100 mA
- Fast response time ≤ 500 µs and switching frequency up to 1,000 Hz
- Polarizing filter included to reduce interference
- Wide ambient operating temperature range from –30 °C to +60 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper electrical connection and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and presence detection in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK GL10-P4311 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety detection applications.
