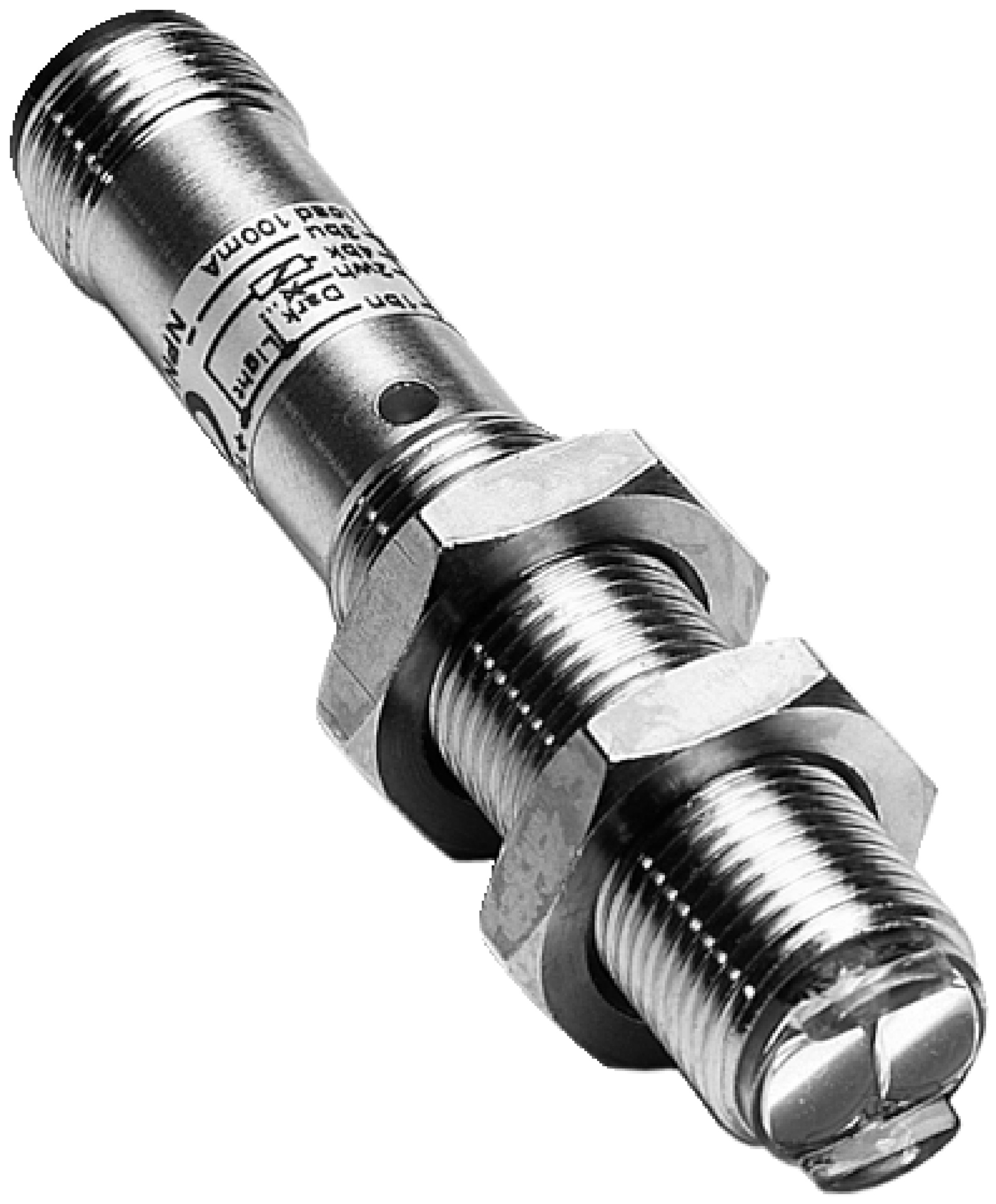

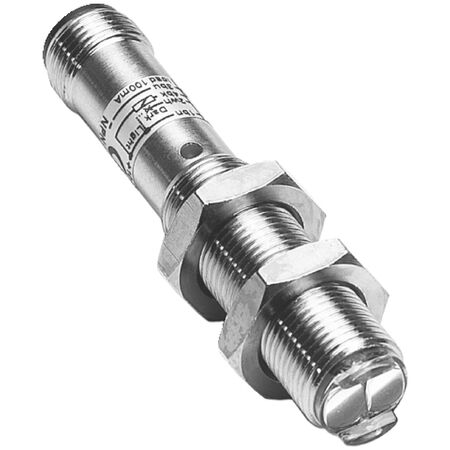

Photoelectric Retro-Reflective Sensor VL12-2N132 | IP67 Rated | Fast Response Time | Selectable Light/Dark Mode | by SICK
The VL12-2N132 Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of up to 2.3 m and a fast response time of ≤ 1.25 ms. With an IP67 rating for dust and water protection, this sensor is perfect for manufacturing process control and safety systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN transistor
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 1.25 ms
- Switching frequency: 400 Hz
- Connection: 4-wire cable, 2 m length, PVC insulation
- Protection class: III
- Enclosure rating: IP67
- Operating temperature range: -25 °C to +70 °C
- Housing material: Metal, nickel-plated brass with plastic PMMA optics
- Light source: LED, visible red light at 660 nm
- Sensing range max: 2.8 m
- Focus angle: Approx. 2.3°
- Light spot size at 2 m: Ø 80 mm
- Dimensions (H x L x W): 12mm x 55mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensing principle
- Visible red LED light source with 660 nm wavelength
- Sensing range from 0.03 m to 2.3 m
- Compact cylindrical metal housing with nickel-plated brass
- IP67 rated for dust and water protection
- Selectable light/dark switching mode via control cable
- Fast response time of ≤ 1.25 ms and switching frequency of 400 Hz
- Polarisation filter included to reduce false triggering
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- Complies with AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable metal housing extends product life reducing waste
- IP67 rating ensures protection against environmental contaminants
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK VL12-2N132 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control.
