Photoelectric Retro-Reflective Sensor | IP67 Rated | Fast Response Time | Selectable Light/Dark Mode | by SICK

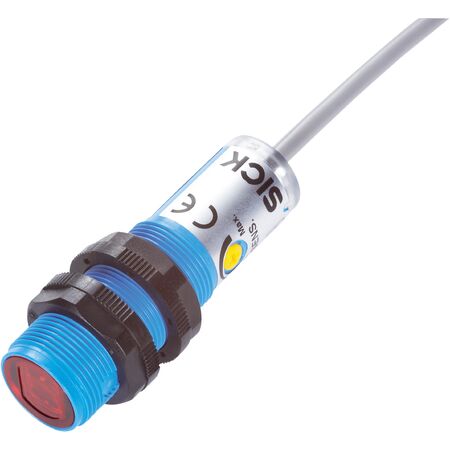

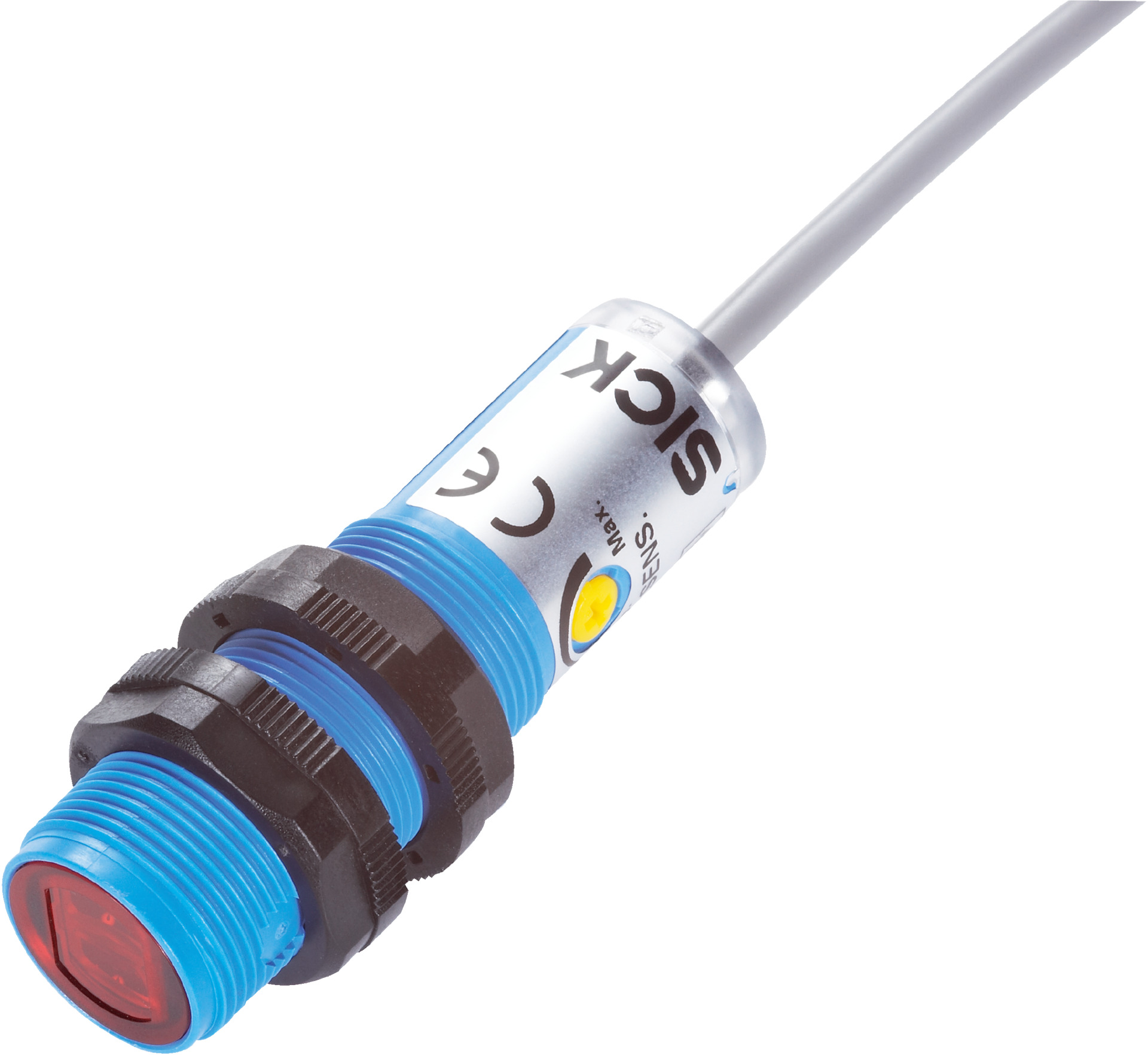

The Photoelectric Retro-Reflective Sensor VL180-2P41136 is designed for industrial automation, featuring a fast response time of ≤ 0.5 ms and a sensing range of 0.05 m to 7 m. With an IP67 rated enclosure, it ensures reliable performance in dust and water environments, making it ideal for material handling and safety systems. Its dual lens system and potentiometer adjustment provide precise detection for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Cable: 4-wire, 2 m length, PVC material
- Protection class: III
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Weight: 62 g
- Dimensions (H x L x W): 18mm x 63mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 645 nm
- Sensing range from 0.05 m to 7 m
- Potentiometer adjustment with 270° sensitivity control
- IP67 rated enclosure for dust and water protection
- Plastic housing with M18 x 1 thread diameter
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Selectable light/dark switching mode via control cable
- Includes reflector P250 and fastening nuts
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Material handling and conveyor systems
- Safety and security systems requiring precise sensing
- Manufacturing process control
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK VL180-2P41136 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
