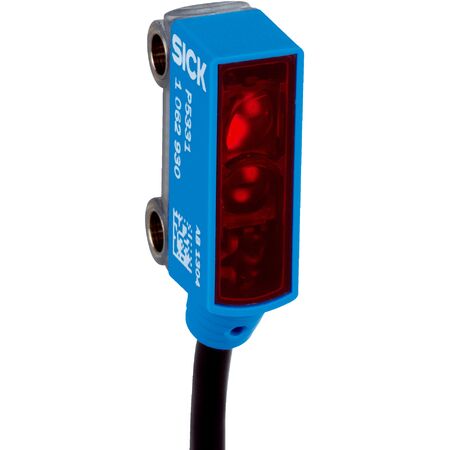

Photoelectric Retro-Reflective Sensor WL2SG-2F3235 | IP67 Rated | Fast Response Time < 0.5 ms | by SICK
The Photoelectric Retro-Reflective Sensor WL2SG-2F3235 is designed for precise object detection in industrial automation, featuring a sensing range of up to 1.2 meters without a reflector. With its fast response time of less than 0.5 ms and IP67 rated housing, this sensor is perfect for detecting transparent objects and ensuring safety in control systems. Built for durability and low power consumption, it’s an essential tool for manufacturing environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, dark switching mode
- Maximum output current: ≤ 50 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection: Cable with M8 male connector, 4-pin, 200 mm length
- Cable material: Plastic, PVC
- Cable diameter: 3 mm
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature range: -20 °C to +50 °C
- Storage temperature range: -40 °C to +75 °C
- Wave length: 640 nm
- Light spot size: Ø 12 mm at 250 mm distance
- MTTFD: 1,987 years
- Dimensions (H x L x W): 22mm x 14mm x 8mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red light with PinPoint LED light source
- Sensing range up to 1.2 meters without reflector
- AutoAdapt feature for optimized sensing
- Dark switching PNP output with fast response time under 0.5 ms
- IP67 rated housing for dust and water protection
- Polarisation filter included for enhanced detection
- Cable connection with M8 male connector, 4-pin
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing
- Safety and control systems requiring precise sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WL2SG-2F3235 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
