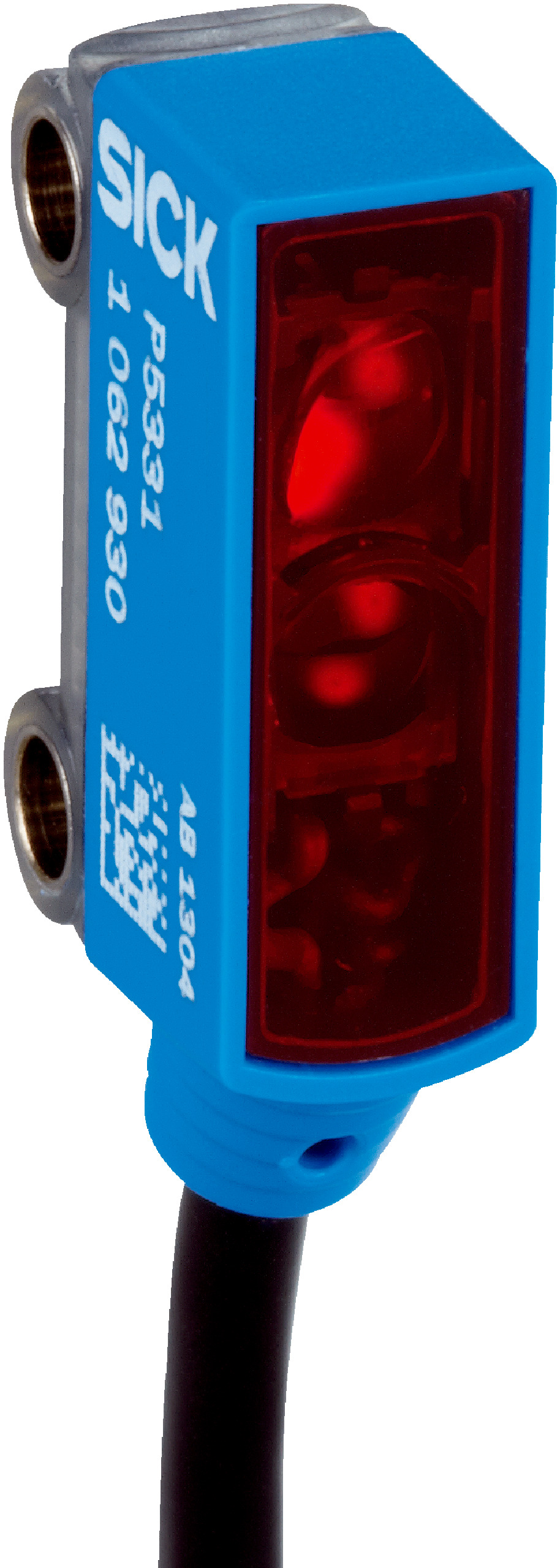

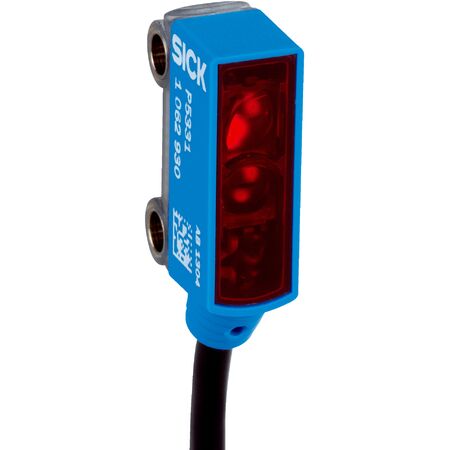

Photoelectric Retro-Reflective Sensor WL2SG-2P3235 | IP67 Rated | Fast Response Time | by SICK
The WL2SG-2P3235 Photoelectric Retro-Reflective Sensor is designed for precise object detection in industrial automation. With a sensing range of up to 1.2 m and a fast response time of under 0.5 ms, it’s perfect for detecting transparent objects. Its IP67 rated enclosure ensures durability in harsh environments, making it an ideal choice for manufacturing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 50 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection: Cable with M8 male connector, 4-pin, 200 mm
- Cable material: Plastic, PVC
- Cable diameter: 3 mm
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Enclosure rating: IP67
- Wave length: 640 nm
- Light spot size: Ø 12 mm at 250 mm distance
- MTTFD: 1,987 years
- Dimensions (H x L x W): 22mm x 14mm x 8mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red light with PinPoint LED light source
- Sensing range up to 1.2 m without reflector, 0 to 0.55 m with reflector
- AutoAdapt feature for optimized sensing
- Polarisation filter included to reduce interference
- IP67 rated enclosure for dust and water protection
- Fast response time under 0.5 ms and switching frequency of 1000 Hz
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing
- Use in environments requiring precise sensing with visible red light
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WL2SG-2P3235 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
