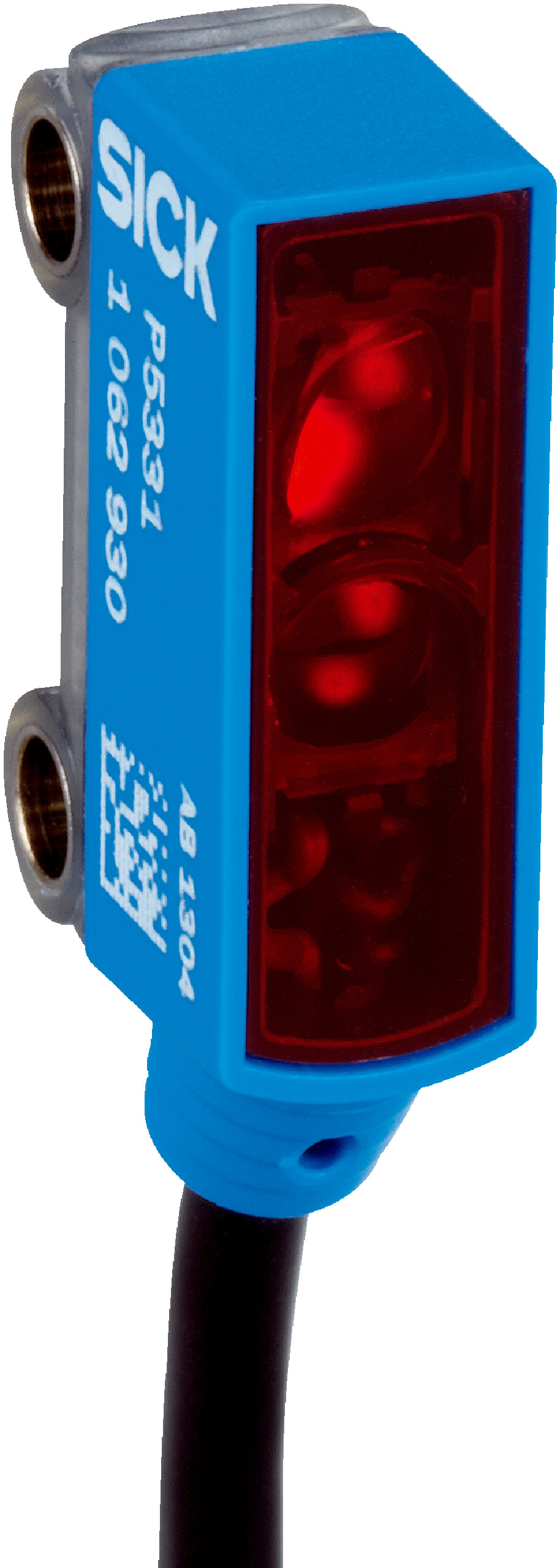

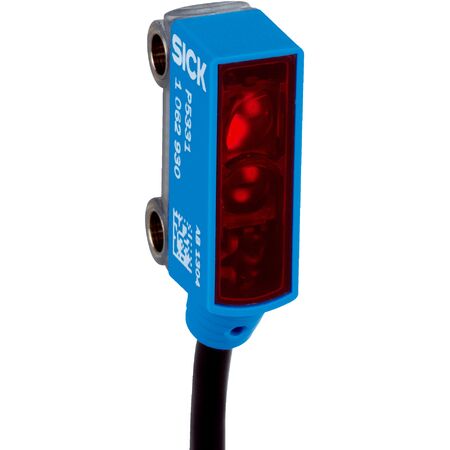

Photoelectric Retro-Reflective Sensor WL2SG-2P3236 | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor WL2SG-2P3236 is designed for precise object detection in industrial automation. With a sensing range of up to 1.2 meters and a fast response time of under 0.5 ms, this sensor is perfect for detecting transparent objects in manufacturing. Its IP67 rated enclosure ensures durability against dust and water, making it ideal for safety and control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, max output current ≤ 50 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Light source: PinPoint LED, wavelength 640 nm
- Light spot size: Ø 12 mm at 250 mm distance
- Connection: Cable with M8 male connector, 4-pin, 355 mm length
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Circuit protection: A, B, D
- Polarisation filter included
- Dimensions (H x L x W): 22mm x 14mm x 8mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red light with PinPoint LED light source
- Sensing range up to 1.2 meters without reflector
- AutoAdapt feature for optimized sensing
- Polarisation filter to reduce interference
- IP67 rated enclosure for dust and water protection
- Fast response time under 0.5 ms and switching frequency of 1000 Hz
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connections.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing
- Safety and control systems requiring precise sensing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WL2SG-2P3236 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
