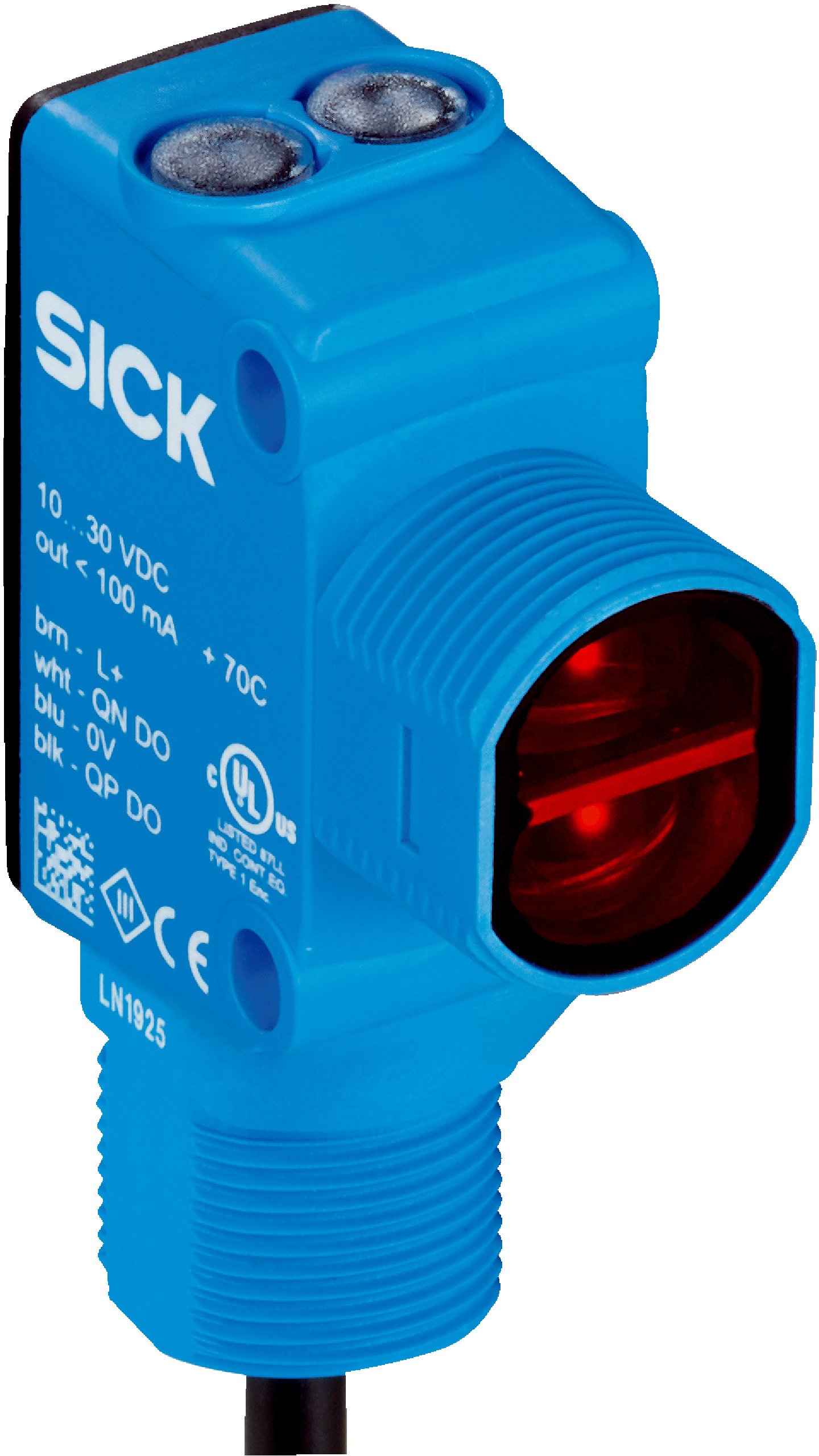

Photoelectric Retro-Reflective Sensor | IP67 & IP69K Rated | 1000 Hz Switching Frequency | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a robust IP67 and IP69K rated housing for harsh environments. With a high switching frequency of 1000 Hz and a response time of ≤ 0.5 ms, it excels in detecting transparent objects and ensuring reliable performance. Ideal for manufacturing applications, this sensor offers low power consumption and a sensing range of up to 2.5 m.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 20 mA
- Switching output: Push-pull PNP/NPN complementary
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Connection: Cable with M12 male connector, 4-pin, 150 mm
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP67, IP69K
- Operating temperature: -40 °C to +70 °C
- Light source: PinPoint LED, 631 nm wavelength
- Sensing range: 0.1 m to 2.5 m (max 3 m)
- Mounting: M18 thread diameter
- Dimensions (H x L x W): 50.1mm x 31.4mm x 16.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system
- Visible red light PinPoint LED with 631 nm wavelength
- Sensing range from 0.1 m to 2.5 m (max 3 m)
- AutoAdapt signal strength light bar for easy adjustment
- Light/dark switching with teach-in potentiometer
- Push-pull PNP/NPN complementary switching outputs
- High switching frequency of 1000 Hz and response time ≤ 0.5 ms
- Robust plastic VISTAL® housing with IP67 and IP69K protection
- Operating temperature range from -40 °C to +70 °C
- Polarizing filter included for enhanced detection
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing
- Use in harsh environments requiring IP67/IP69K protection
Standards & Compliance
- AS/NZS 60950 – Safety of IT and Communication Equipment
Environmental Benefits
- Low power consumption with ≤ 20 mA current draw
- Durable housing reduces waste through extended product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now

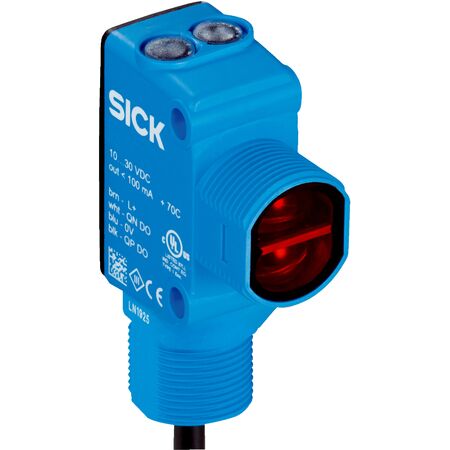

The SICK HL18BG-F4B3BP Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
