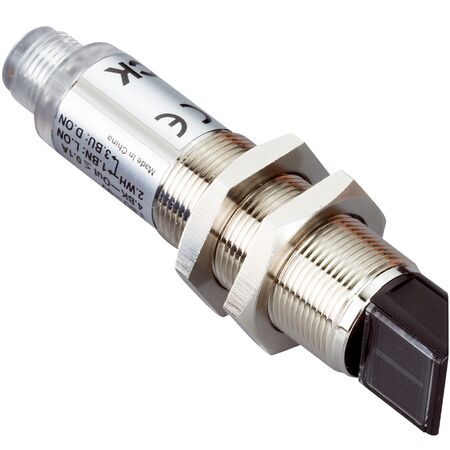

Photoelectric Retro-Reflective Sensor VL180-2N41133 | IP67 Rated | NPN Output & 1000 Hz Frequency | by SICK
The Photoelectric Retro-Reflective Sensor VL180-2N41133 is designed for industrial automation, featuring a robust IP67-rated housing and a high switching frequency of 1,000 Hz. With a sensing range of up to 5.5 m and a response time of ≤ 0.5 ms, it's perfect for object detection and safety monitoring in manufacturing processes. Built for reliability, this sensor ensures efficient operation in various environments, making it an essential tool for material handling and packaging systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN, light/dark switching
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Housing material: Metal (nickel-plated brass) and PC
- Optics material: Plastic (PMMA)
- Polarisation filter included
- Ambient operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- Dimensions (H x L x W): 18mm x 77mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 645 nm
- Sensing range from 0.05 m to 4.5 m, max 5.5 m
- Radial optical axis with approx. 4.5° angle of dispersion
- Potentiometer adjustment with 270° sensitivity control
- NPN switching output with light/dark switching mode
- High switching frequency of 1,000 Hz and response time ≤ 0.5 ms
- Robust metal housing with nickel-plated brass and PC, IP67 rated
- Includes reflector P250
- Wide ambient operating temperature range from –25 °C to +55 °C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper alignment and electrical connection according to safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Long service life minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK VL180-2N41133 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
