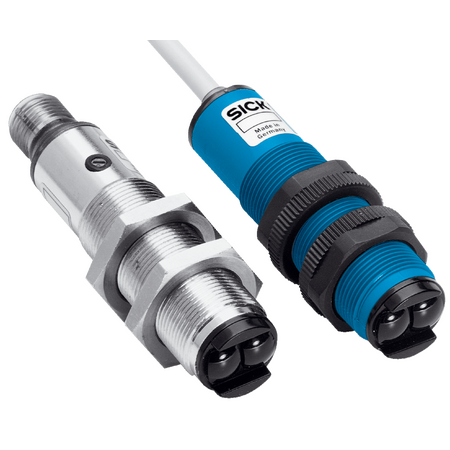

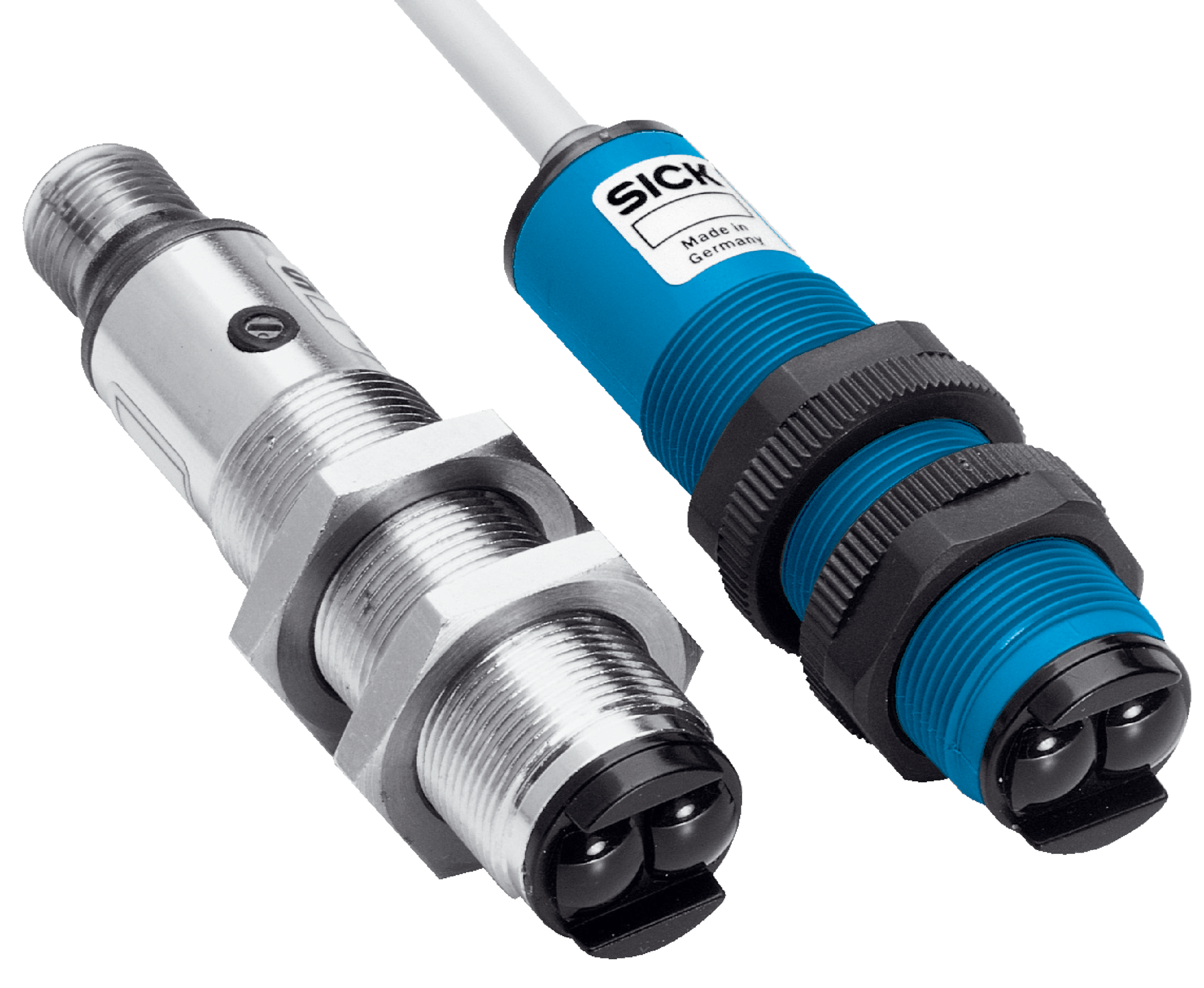

Photoelectric Retro-Reflective Sensor VL18-3P3640 | IP67 Rated | PNP Output | 3.7m Sensing Range | by SICK
The VL18-3P3640 Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of up to 3.7 meters and a fast response time of ≤ 2 ms. With an IP67 enclosure rating and robust plastic housing, it ensures reliable performance in harsh environments, making it ideal for safety and monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, PNP sensor, Industrial object sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, dark switching
- Max output current: ≤ 100 mA
- Response time: ≤ 2 ms
- Switching frequency: 250 Hz
- Connection type: Male connector M12, 4-pin
- Protection class: III
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: –25 °C to +70 °C
- Polarizing filter: Yes
- Dimensions (H x L x W): 18mm x 78mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with visible red light
- Axial optical axis with approx. 2.8° focus and angle of dispersion
- Sensing range up to 3.7 meters
- Dark switching PNP output with max output current ≤ 100 mA
- High switching frequency of 250 Hz and fast response time ≤ 2 ms
- Robust plastic housing with IP67 enclosure rating
- Wide ambient operating temperature range from –25 °C to +70 °C
- Polarizing filter included for reliable detection
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable design reduces waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK VL18-3P3640 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
