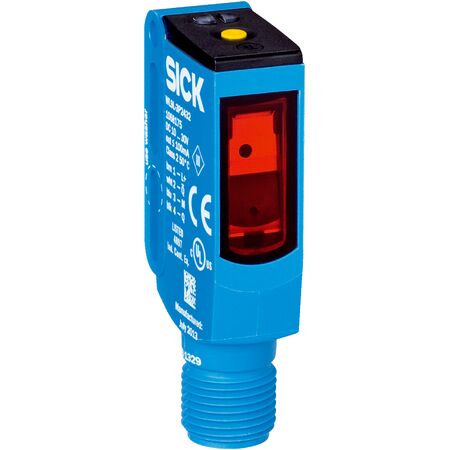

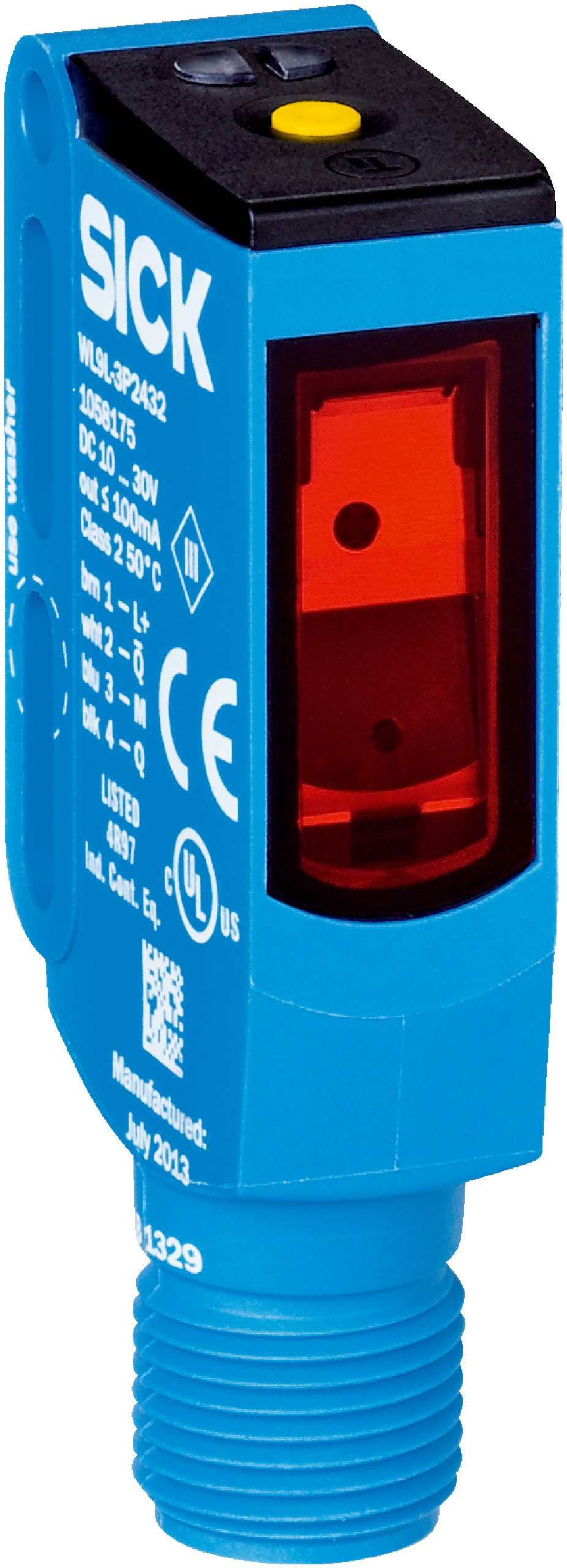

Photoelectric Retro-Reflective Sensor | Laser 650nm | 4.5m Sensing Range | IP66/IP67/IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL9LGC-3P2232B01 features a powerful laser light source with a 650 nm wavelength, providing a sensing range of up to 4.5 meters without a reflector. Designed for industrial automation, this sensor is perfect for detecting small and transparent objects, ensuring high performance with a switching frequency of up to 1000 Hz. Its robust IP66/IP67/IP69K rated enclosure makes it ideal for harsh environments, while the IO-Link communication interface enhances connectivity and functionality.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor
- Light source: Laser, 650 nm wavelength
- Sensing range max: 0 m to 4.5 m without reflector, 0 m to 2 m with reflector
- Laser class: 1 (IEC 60825-1 / CDRH 21 CFR 1040.10 & 1040.11)
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: up to 1000 Hz
- Connection type: Male M8, 4-pin connector
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -10 °C to +50 °C (standard), -30 °C to +55 °C (extended)
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Cycle time: 2.3 ms
- AutoAdapt feature included
- Mounting hole: M3
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red laser light source with 650 nm wavelength
- Sensing range up to 4.5 m without reflector, 2 m with reflector
- IO-Link communication interface V1.1 with 2.3 ms cycle time
- High switching frequency up to 1000 Hz
- IP66, IP67, and IP69K rated enclosure for harsh environments
- Plastic VISTAL® housing with PMMA optics
- Multiple output functions including complementary PNP switching
- AutoAdapt feature for optimized detection
- Deactivation delay of 50 ms
- Operating temperature range from -30 °C to +55 °C extended
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician familiar with industrial sensor systems and IO-Link communication protocols.
Applications
- Industrial automation for object detection
- Detecting small and transparent objects
- Machine safety and process control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP69K rated housing minimizes environmental impact by extending product life
- Compliant with China-RoHS and ECOLAB standards ensuring reduced hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WL9LGC-3P2232B01 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
