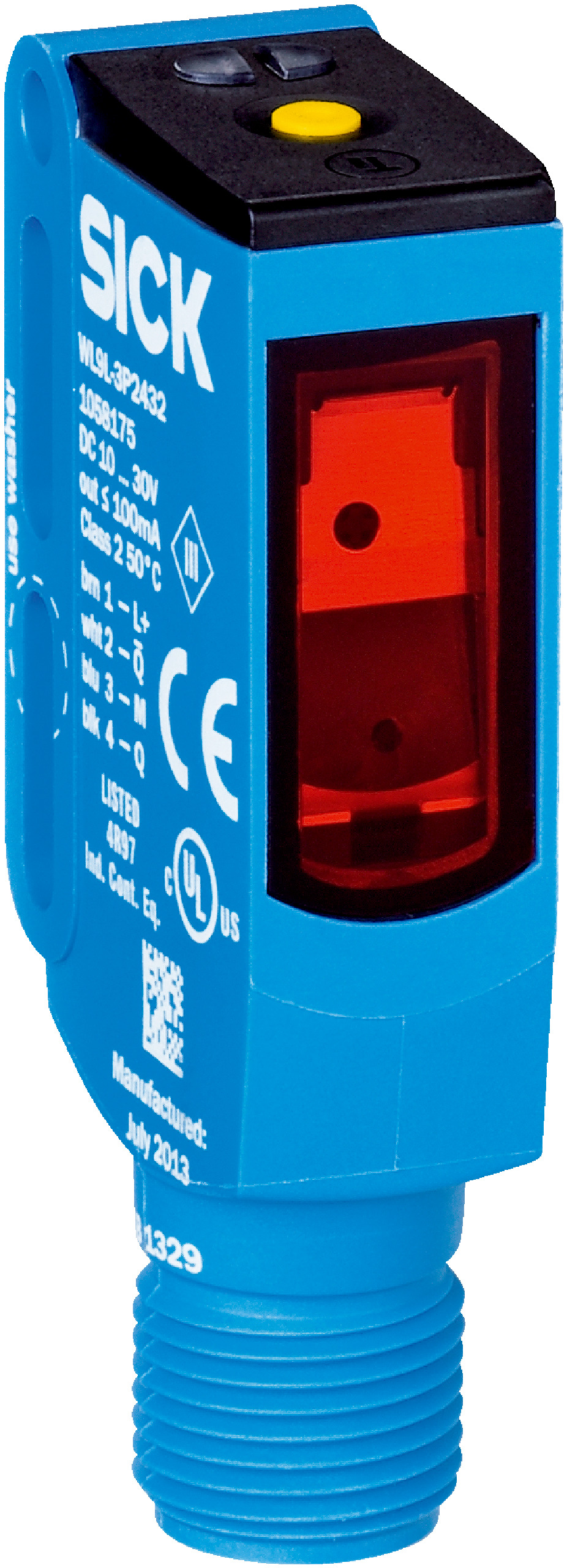

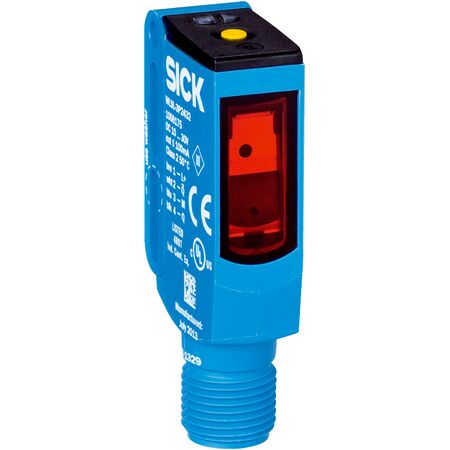

Photoelectric Retro-Reflective Sensor | Laser Class 1 | IP66/IP67/IP69K Rated | 3.5m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor WL9LGC-3P2452A00 is designed for precise object detection in industrial automation. With a robust IP66/IP67/IP69K rated housing and a sensing range of up to 3.5 meters, it ensures reliable performance even in challenging environments. Featuring a visible red laser light source and IO-Link communication, this sensor is perfect for detecting small and transparent objects, enhancing machine safety and process control.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Response time: ≤ 0.5 ms
- Switching frequency: up to 1000 Hz
- Connection: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -30°C to +55°C (extended)
- Light source: Laser, 650 nm wavelength
- Laser class: 1 (IEC 60825-1)
- Housing material: Plastic (VISTAL®)
- Optics material: Plastic (PMMA)
- Communication interface: IO-Link V1.1
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red laser light source with 650 nm wavelength
- Sensing range up to 3.5 meters without reflector
- Laser class 1 safety certified (IEC 60825-1)
- IO-Link communication interface with V1.1 standard
- High switching frequency up to 1000 Hz
- Robust plastic housing with IP66, IP67, and IP69K protection ratings
- Operating temperature range from -30°C to +55°C (extended)
- Multiple output functions including complementary PNP switching
- Integrated AutoAdapt and polarizing filter for reliable detection
Professional Installation Requirements
- Professional installation by a qualified technician or electrician is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Detecting small and transparent objects
- Machine safety and process control
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient laser technology reduces power consumption
- Durable IP69K rated housing minimizes environmental impact by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WL9LGC-3P2452A00 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
