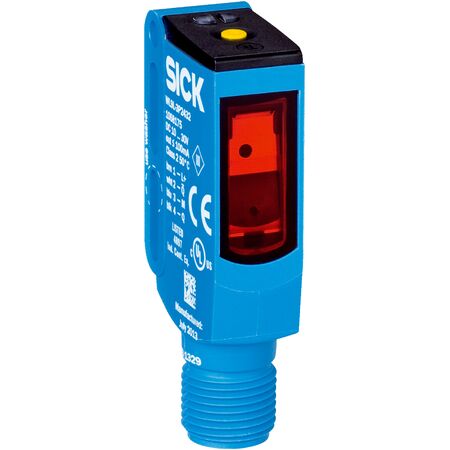

Photoelectric Retro-Reflective Sensor | Laser Light Source | IP66/IP67/IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL9LC-3P2432A70 features a visible red laser light source with a 650 nm wavelength, ensuring precise object detection in industrial automation. With a robust IP66/IP67/IP69K rated housing and a fast response time of ≤ 0.5 ms, it's perfect for factory automation and machine safety applications, providing reliable performance even in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP complementary
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Light source: Laser, 650 nm wavelength
- Laser class: 1 (IEC 60825-1)
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -30 °C to +55 °C (extended)
- Connection: M12 4-pin male connector
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Communication interface: IO-Link V1.1, COM2 (38.4 kBaud)
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red laser light source with 650 nm wavelength
- Sensing range up to 12 meters without reflector
- Laser class 1 safety certified (IEC 60825-1)
- IO-Link communication interface for easy integration and configuration
- High switching frequency up to 1000 Hz with fast response time ≤ 0.5 ms
- Robust plastic VISTAL® housing with IP66, IP67, and IP69K protection ratings
- Operating temperature range from -30 °C to +55 °C (extended)
- Complementary PNP switching output with light/dark switching mode
- M12 4-pin male connector for reliable connection
Professional Installation Requirements
- Installation by a qualified electrician or automation technician is recommended to ensure proper wiring, configuration, and compliance with safety standards.
Applications
- Industrial automation for detecting small objects
- Factory automation requiring precise object detection
- Machine safety and process control systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient laser light source reduces power consumption
- Durable IP69K rated housing minimizes environmental damage and waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Warranty details available upon request from manufacturer or authorized distributor.
Available Now
The SICK WL9LC-3P2432A70 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and precise object detection applications.
