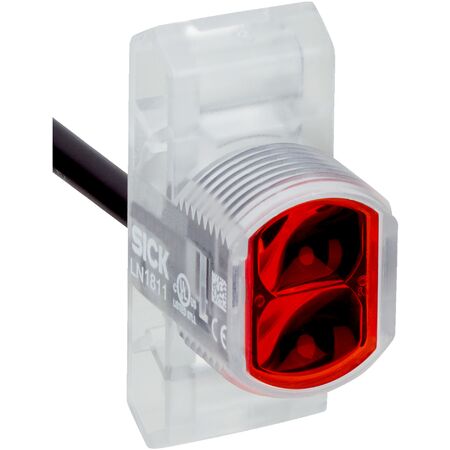

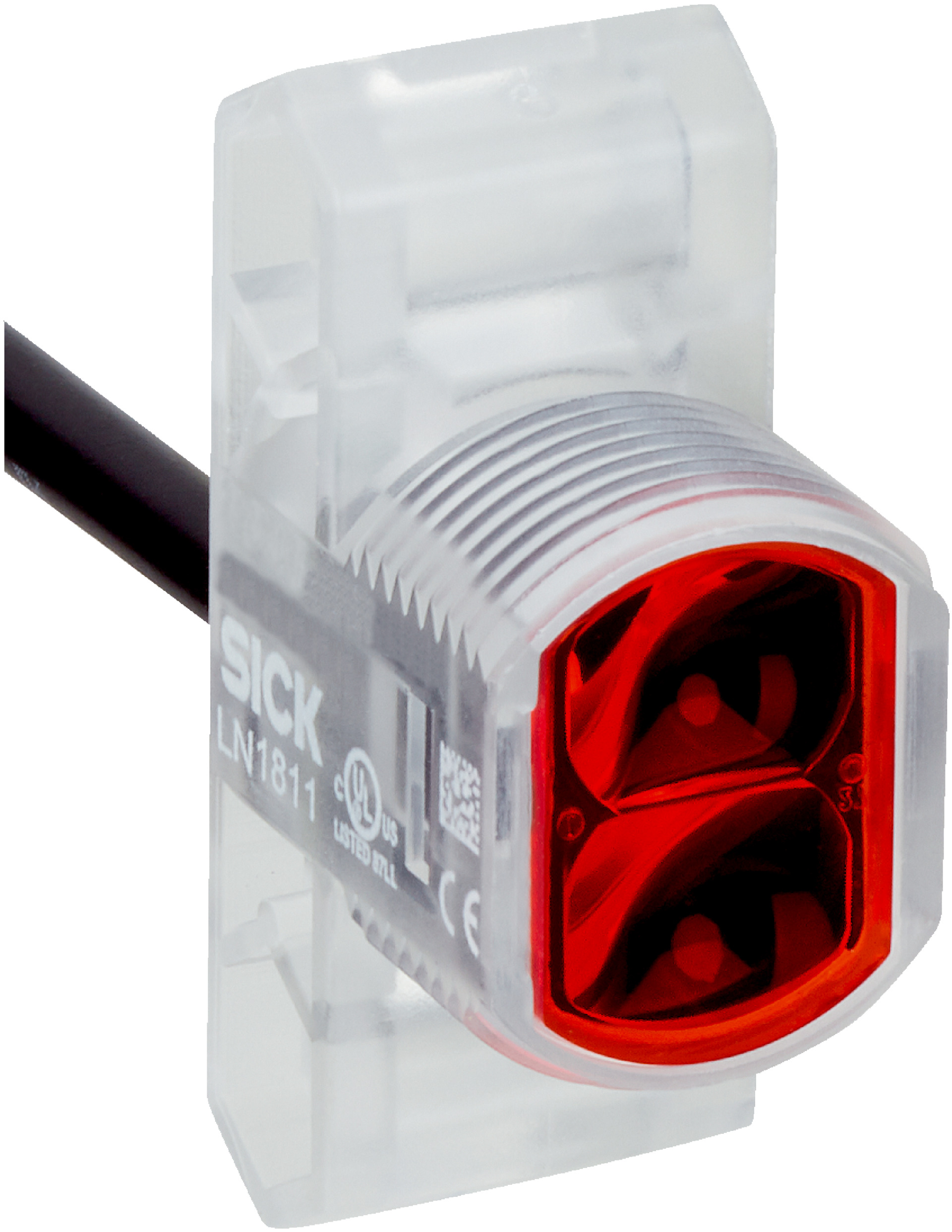

Photoelectric Retro-Reflective Sensor | M18 Threaded Housing | IP67 Rated | 4.2m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a robust M18 threaded housing and an impressive sensing range of up to 4.2 meters. With a fast response time of ≤ 500 µs and an IP67 rating for dust and water protection, this sensor is perfect for manufacturing process control and safety monitoring in production lines.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, light switching
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection: 4-wire cable, 3 m length, PVC insulation
- Housing material: ABS plastic
- Optics material: PMMA plastic
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Light spot size at 1000 mm: Ø 125 mm
- Thread diameter: M18
- Dimensions (H x L x W): 34.8mm x 23mm x 13.6mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with 625 nm wavelength
- Sensing range up to 4.2 meters
- M18 threaded housing with hybrid light emission design
- IP67 rated enclosure for dust and water protection
- Polarisation filter included to reduce false triggering
- Fast response time of ≤ 500 µs and switching frequency up to 1,000 kHz
- PNP switching output with max output current of 100 mA
- Wide operating temperature range from -40 °C to +55 °C
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZLD18-APZ1K8 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
