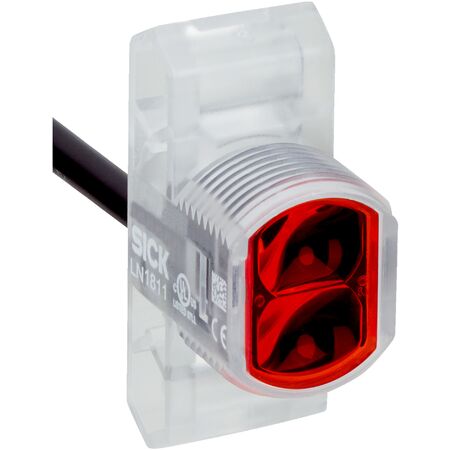

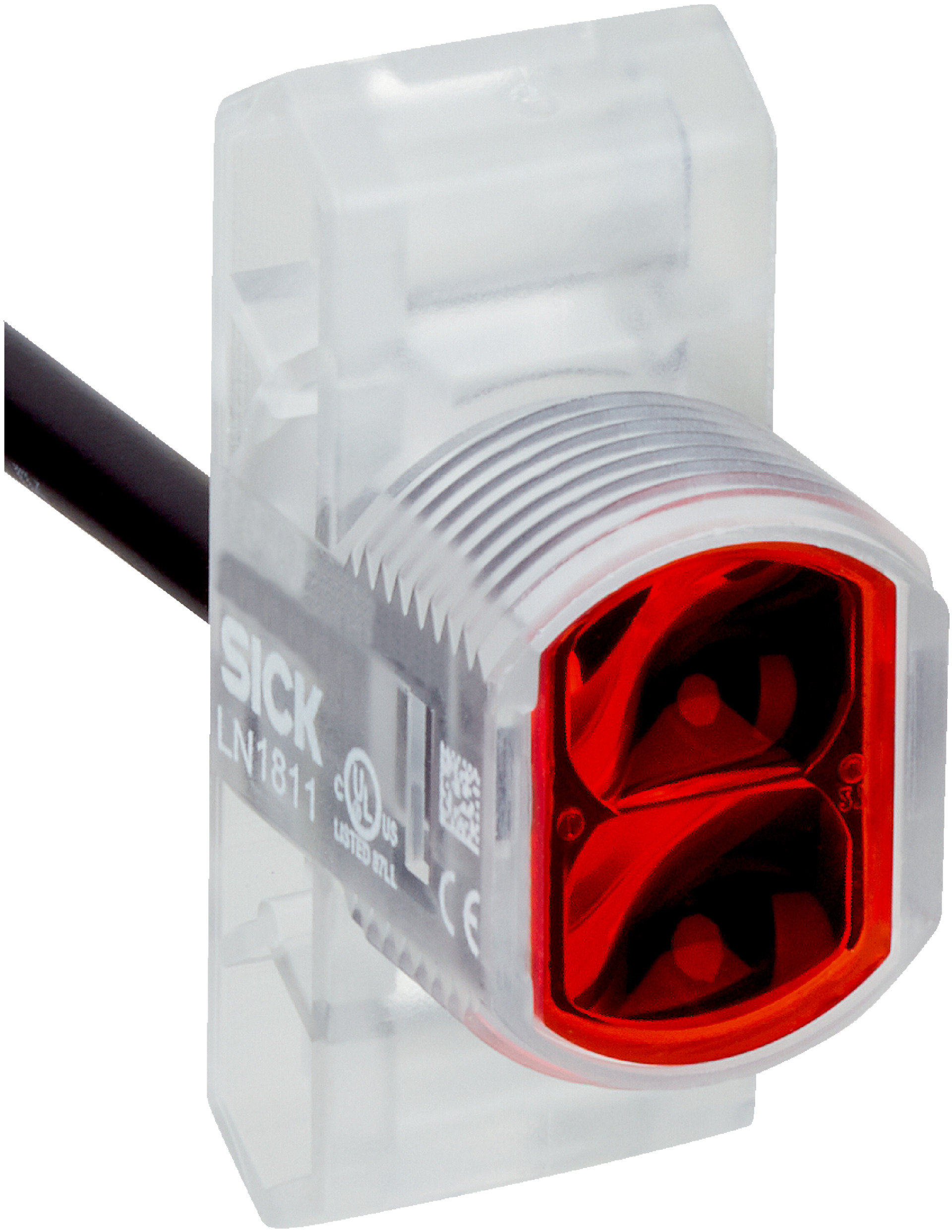

Photoelectric Retro-Reflective Sensor | M18 Threaded Housing | IP67 Rated | Sensing Range up to 4.2m | by SICK
The Photoelectric Retro-Reflective Sensor ZLD18-APZAK8 is designed for industrial automation, featuring a dual lens system and a sensing range of up to 4.2 meters. With an IP67 rated enclosure, it ensures reliable performance in harsh environments, making it ideal for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, light switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Cable material: Plastic, PVC
- Conductor cross section: 0.13 mm²
- Protection class: III
- Housing material: Plastic, ABS
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Dimensions (H x L x W): 35mm x 23mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with 625 nm wavelength
- Sensing range up to 4.2 meters
- M18 threaded housing with hybrid light emission design
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40°C to +55°C
- Cable with RJ11 6-pin connector, 3 meters long
- Polarisation filter included
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and conveyor systems
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK ZLD18-APZAK8 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
