Photoelectric Retro-Reflective Sensor | NPN Output | IP66/IP67/IP69K Rated | 1000 Hz Switching Frequency | by SICK

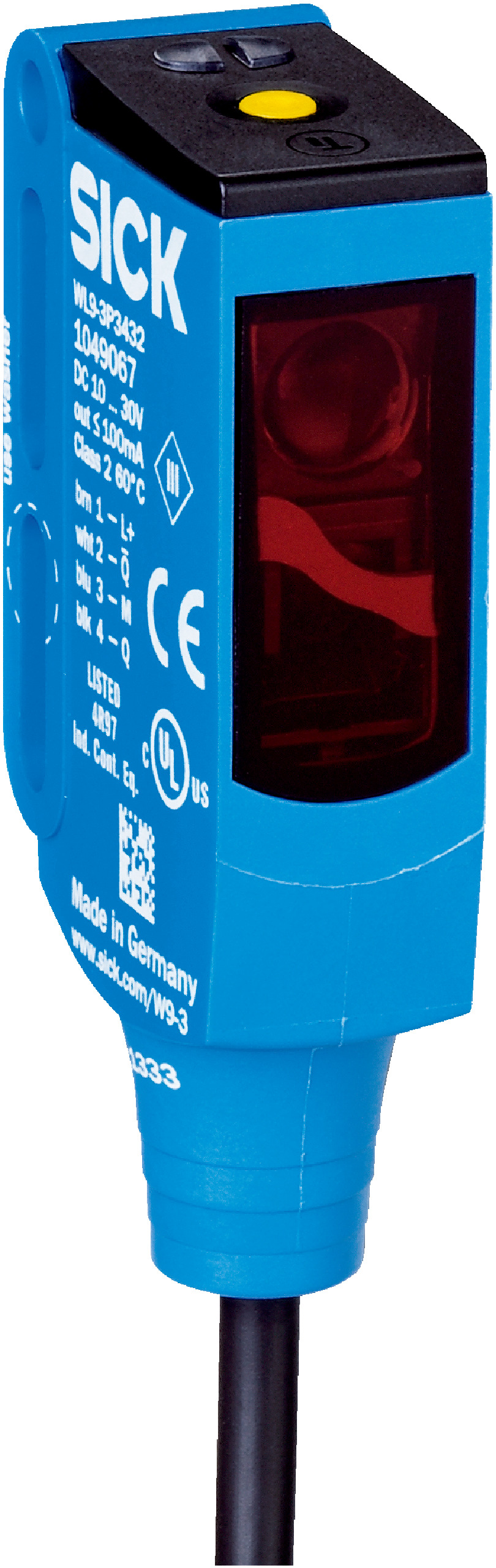

The Photoelectric Retro-Reflective Sensor WL9G-3N1132P11 is designed for industrial automation, featuring a high switching frequency of 1,000 Hz and an impressive response time of less than 0.5 ms. With its robust IP66/IP67/IP69K enclosure rating, it excels in detecting transparent objects even in harsh environments, making it ideal for manufacturing processes and object detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN, complementary
- Output current max: ≤ 100 mA
- Switching mode: Light/dark switching
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: 4-wire cable, 2 m length
- Cable material: Plastic, PVC
- Conductor cross section: 0.14 mm²
- Circuit protection: Types A, B, C
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Ambient operating temperature: -40 °C to +60 °C
- Ambient storage temperature: -40 °C to +75 °C
- MTTFD: 1,232 years
- Mission time: 20 years
- Dimensions (H x L x W): 50mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red light with 650 nm wavelength
- PinPoint LED light source
- Single teach-in button for easy adjustment
- AutoAdapt feature for optimized detection
- Detects transparent objects
- High switching frequency of 1,000 Hz
- Response time less than 0.5 ms
- Complementary NPN switching output
- Polarizing filter included
- Robust plastic VISTAL® housing with PMMA optics
- Enclosure rating IP66, IP67, IP69K for harsh environments
- Wide ambient operating temperature range from -40 °C to +60 °C
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with photoelectric sensor wiring and safety standards.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing processes
- Use in harsh environments requiring IP66, IP67, IP69K protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing reduces waste by extending product lifespan
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WL9G-3N1132P11 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and transparent object detection applications.
