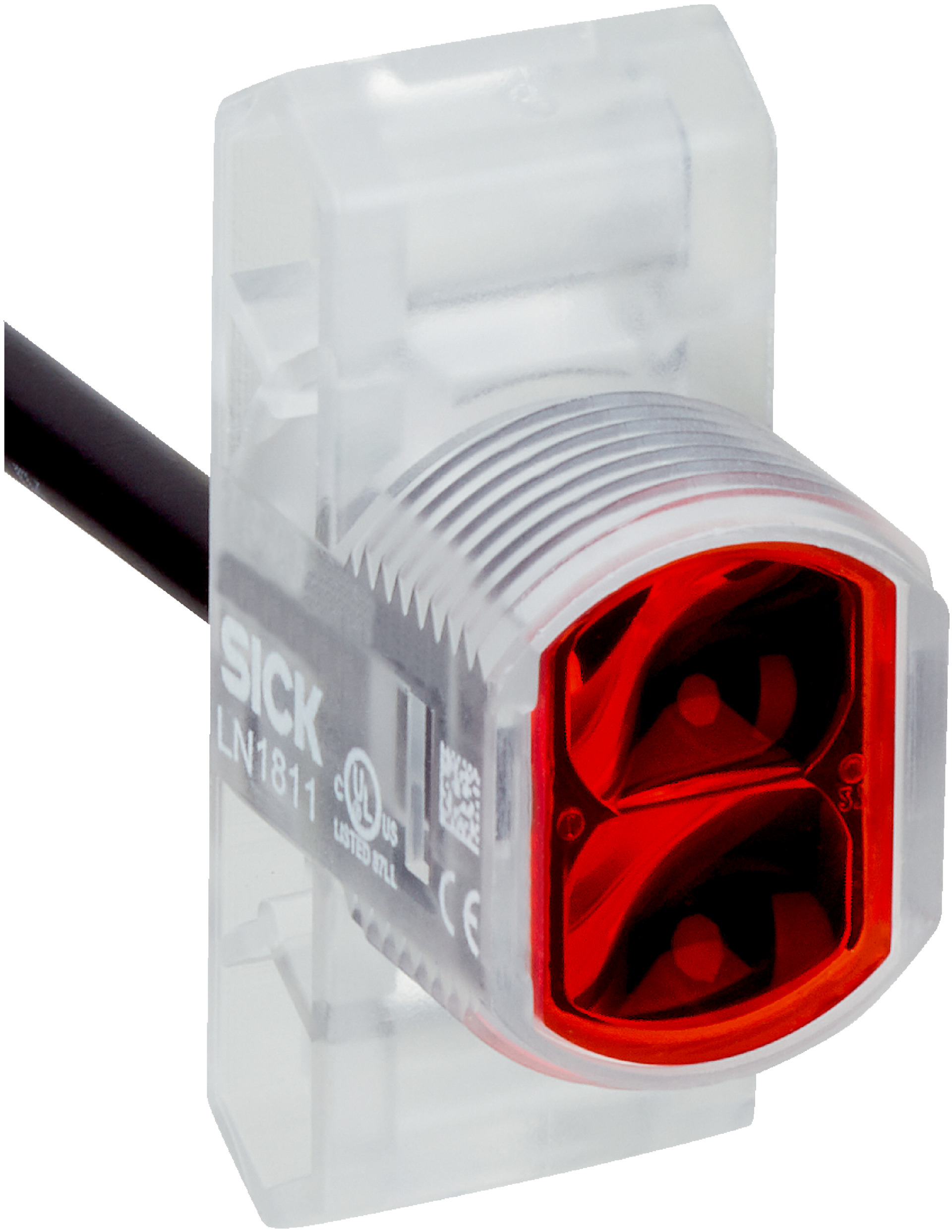

Photoelectric Retro-Reflective Sensor | NPN Output | IP67 Rated | 4.2m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a sensing range of up to 4.2m and a fast response time of ≤ 500 µs. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for manufacturing process control and safety monitoring in production lines, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: NPN, light switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Light source: LED, visible red light, 625 nm wavelength
- Light spot size at 1000 mm: Ø 125 mm
- Housing material: Plastic ABS, optics material: Plastic PMMA
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Connection: Cable with RJ11 6-pin connector, 500 mm length
- Cable material: Plastic PVC, conductor cross section: 0.13 mm²
- Polarisation filter included
- Dimensions (H x L x W): 35mm x 23mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 625 nm
- Sensing range up to 4.2 m, max 5 m
- Hybrid housing design with transparent ABS plastic
- M18 threaded housing for head/side mounting
- Includes mounting bracket and nut
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40°C to +55°C
- NPN light switching output with max 100 mA output current
- Fast response time ≤ 500 µs and switching frequency up to 1,000 kHz
- Cable with RJ11 6-pin connector, 500 mm length
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper mounting, wiring, and compliance with safety standards.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and monitoring in production lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 rated housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLD18-ANZAD8P10 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and manufacturing process control applications.
