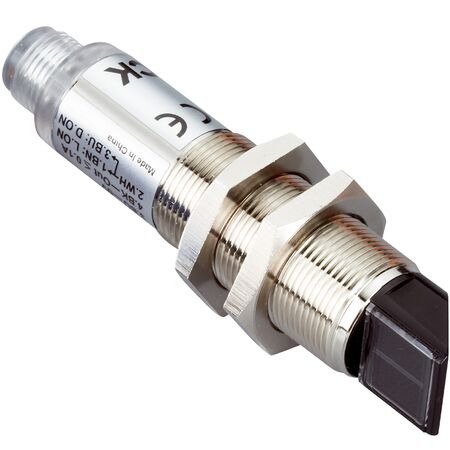

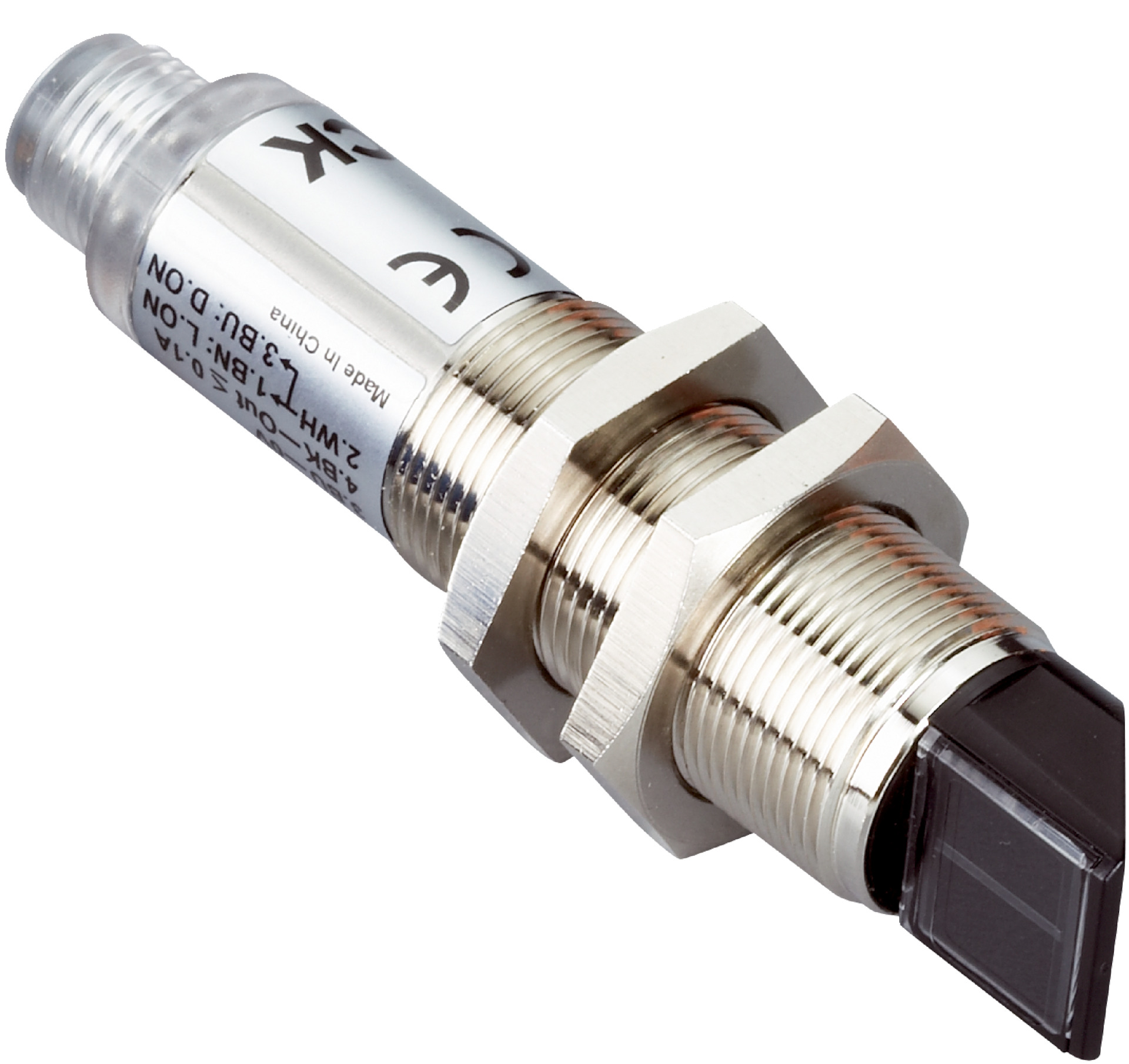

Photoelectric Retro-Reflective Sensor | NPN Output | IP67 Rated | 4.5m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a robust NPN output and a sensing range of up to 4.5 meters. With a high switching frequency of 1,000 Hz and a quick response time of ≤ 0.5 ms, it ensures reliable object detection and safety monitoring in manufacturing processes. Its durable IP67 rated housing makes it ideal for challenging environments, providing long-lasting performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: NPN, light/dark switching
- Signal voltage NPN HIGH/LOW: Approx. VS / < 1.8 V
- Output current max: ≤ 100 mA
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male connector M12, 4-pin
- Circuit protection: Types A, B, D
- Protection class: III
- Polarisation filter included
- Housing material: Metal, nickel-plated brass and PC
- Optics material: Plastic, PMMA
- Enclosure rating: IP67
- Ambient operating temperature: –25 °C to +55 °C
- Storage temperature: –40 °C to +70 °C
- MTTFD: 1,899.4 years
- Wave length: 645 nm
- Light spot size at 4 m: Ø 270 mm
- Focus angle: Approx. 4.5°
- Dimensions (H x L x W): 18mm x 84.2mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light LED with wavelength of 645 nm
- Sensing range from 0.05 m to 4.5 m, max 5.5 m
- Radial optical axis with approx. 4.5° angle of dispersion
- Potentiometer adjustment with 270° sensitivity
- High switching frequency of 1,000 Hz and response time ≤ 0.5 ms
- NPN switching output with light/dark switching mode
- Robust metal housing with nickel-plated brass and PC, IP67 rated
- Operating temperature range from –25 °C to +55 °C
- Includes reflector P250
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 rated housing ensures long product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK VL180-2N42433 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
