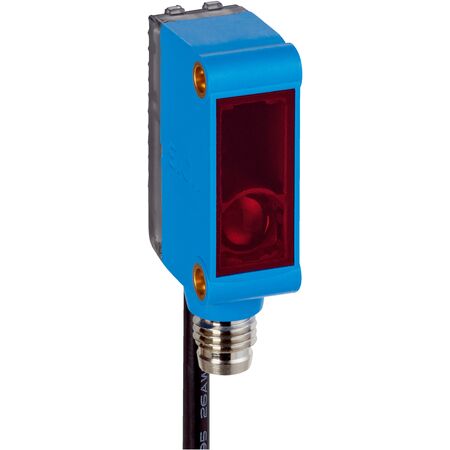

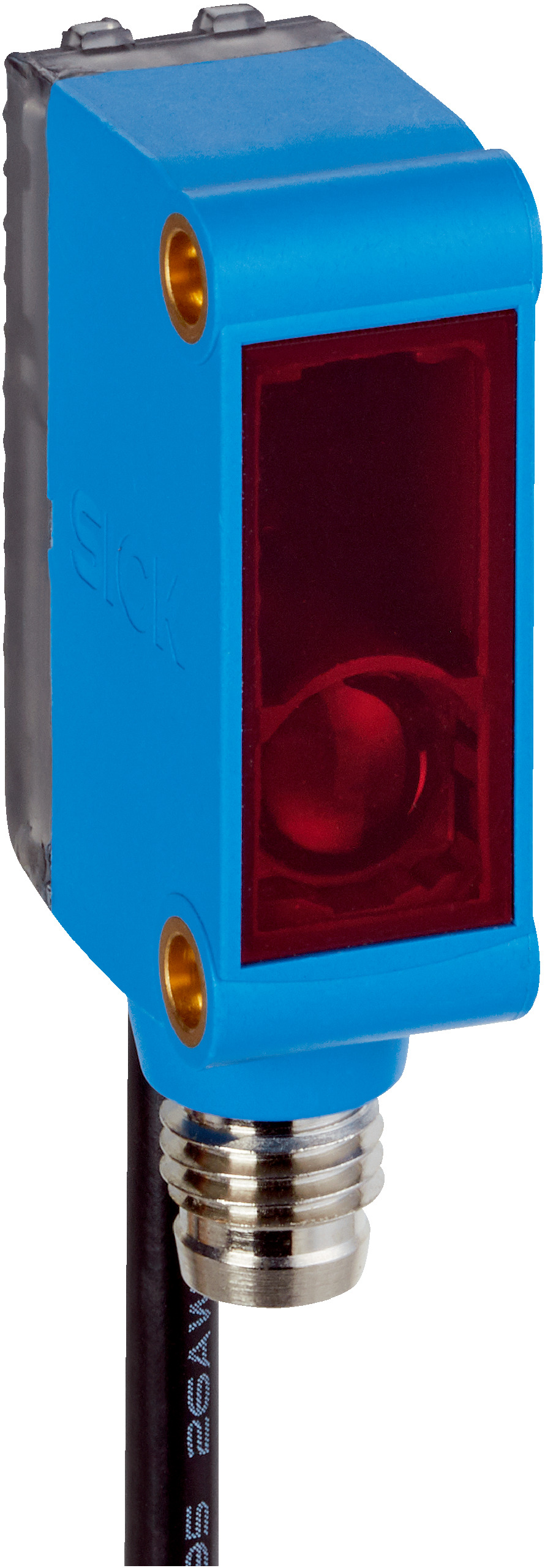

Photoelectric Retro-Reflective Sensor | PinPoint LED | 6m Operating Range | IP65/IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor GL6-CA011K00 features a PinPoint LED light source and operates effectively up to 6 meters. Designed for industrial automation and safety light grid applications, this robust sensor offers IP65/IP67 protection and is built for durability with a compact ABS housing. Ideal for object detection and machine monitoring, it ensures reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Sensor principle: Photoelectric retro-reflective light grid system
- Light source: PinPoint LED, visible red light at 650 nm wavelength
- Light spot size: Ø 8 mm at 350 mm distance
- Supply voltage: 12 V via FlexChain host
- Adjustment: Cable sensitivity via FlexChain host
- Connection type: Male connector M8, 4-pin and cable with female connector M8, 4-pin, 0.5 m
- Housing material: Plastic (ABS)
- Enclosure rating: IP65, IP67
- Protection class: III
- Operating range: 6 m
- Shock resistance: Single shocks 30 g, 11 ms; continuous shocks 25 g, 6 ms
- Vibration resistance: Sinusoidal oscillation 20-2,000 Hz, 10 g
- EMC compliance: EN 61000-6-2, EN 61000-6-3
- Ambient light immunity: Direct 22,000 lx
- Operating temperature range: –25 °C to +55 °C
- Storage temperature range: –25 °C to +70 °C
- Dimensions (H x L x W): 31.5mm x 21mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with light grid system
- PinPoint LED visible red light source
- Operating range up to 6 meters
- Compact dimensions: 12 mm x 31.5 mm x 21 mm
- Robust plastic ABS housing with IP65 and IP67 protection
- Shock resistance up to 30 g and vibration resistance up to 10 g
- Cable sensitivity adjustment via FlexChain host
- Male and female M8 4-pin connectors included
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper connection and configuration with the FlexChain host system.
Applications
- Industrial automation for object detection
- Safety light grid systems
- Machine and equipment monitoring
Standards & Compliance
- Complies with AS/NZS 61000 series for electromagnetic compatibility (EMC)
Environmental Benefits
- Low power consumption via 12 V supply through FlexChain host
- Durable ABS housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK GL6-CA011K00 sensor is available for immediate purchase, ideal for industrial automation and safety light grid applications.
