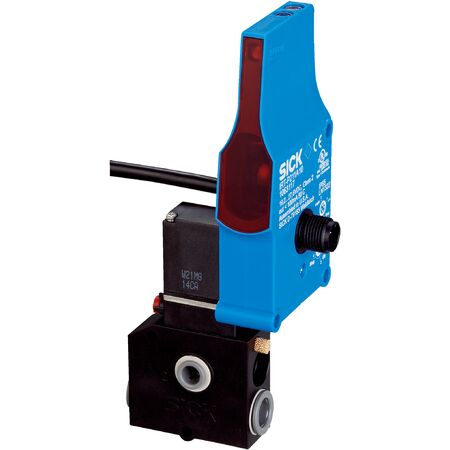

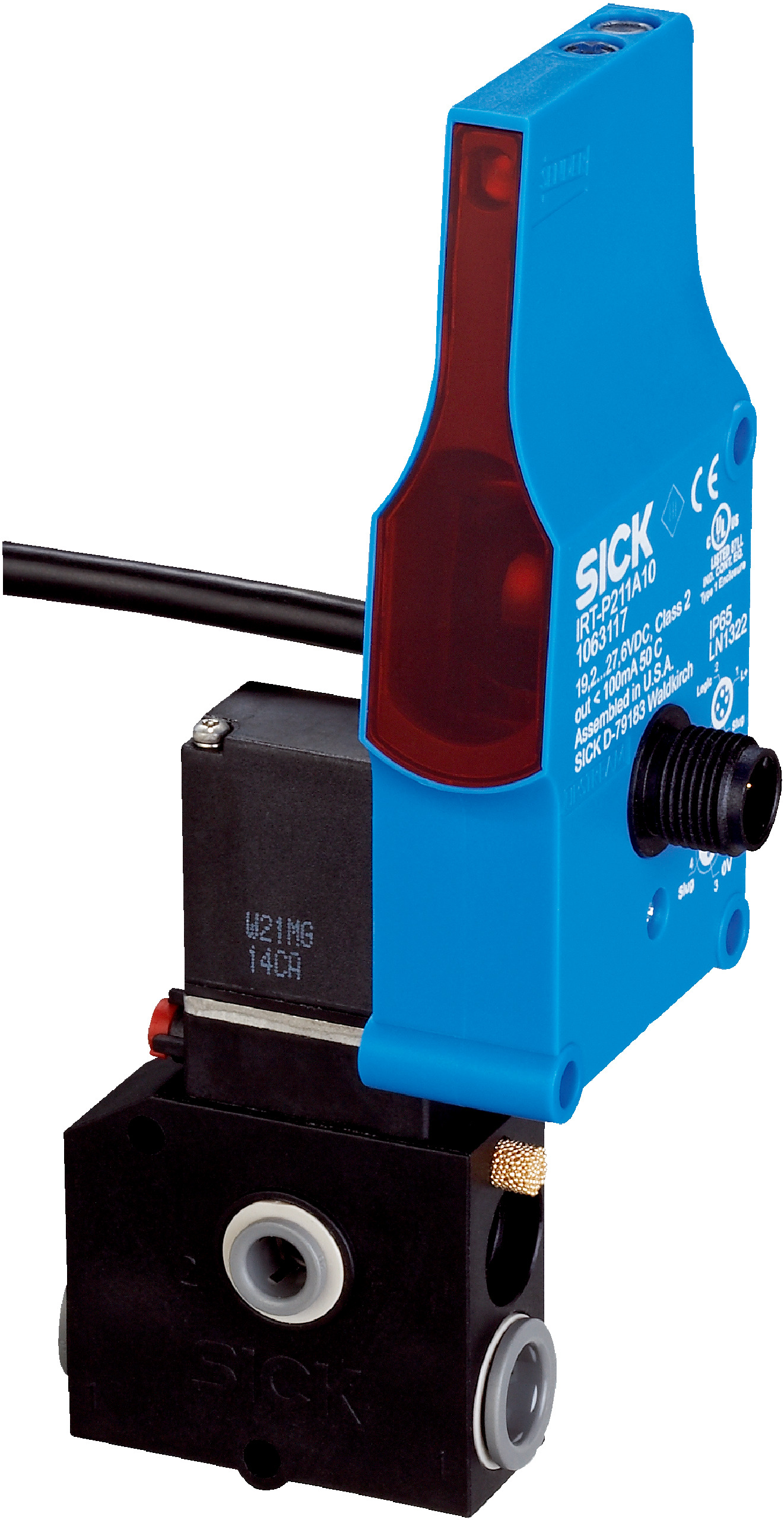

Photoelectric Retro-Reflective Sensor IRL-P211E50 | Pneumatic Actuator | IP65 Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor IRL-P211E50 is designed for industrial automation, featuring a pneumatic actuator and a sensing range of 250 mm to 1500 mm. With a fast response time of 2 ms and an IP65 rated enclosure, it ensures reliable performance in demanding environments, making it ideal for precise object detection and pneumatic valve control systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor
- Actuator: Pneumatic, valve on board (3/2-way valve)
- Max. number of sensors: Approx. 30 to 50 depending on configuration
- Logical principle of operation: Single accumulation
- Type of release: Single release, block (slug) release
- Sensing range: 250 mm to 1500 mm
- Focus: 7°
- Type of light: Visible red light LED
- Light spot size: Ø 20 mm at 500 mm distance
- Adjustment: Potentiometer, 9 turns
- Supply voltage: 19.2 V DC to 27.6 V DC
- Ripple: < 5 V pp
- Current consumption: 20 mA
- Switching output: PNP
- Output current max: ≤ 100 mA
- Response time: 2 ms
- Switching frequency: 250 Hz
- Connection type: Male M12, 4-pin connector
- Circuit protection: Types A, C, D
- Protection class: III
- Housing material: Plastic, ABS
- Enclosure rating: IP65
- Shock and vibration resistance: According to IEC 68
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -40 °C to +75 °C
- Medium for valves: Compressed air or neutral gases filtered, non-lubricated or lubricated
- Coil ratings: 24 V DC, 2 W
- Air flow rate: Approx. 20 Nl/min
- Ventilation capacity: Approx. 100 Nl/min
- Operating pressure range: 4 bar to 7 bar
- Dimensions (H x L x W): 125mm x 49mm x 50mm
- Weight: 0.175 kg
Key Features
- Photoelectric retro-reflective sensor with visible red LED light source
- Pneumatic actuator with valve on board (3/2-way valve)
- Sensing range from 250 mm to 1500 mm with 7° focus and angle of dispersion
- Potentiometer adjustment with 9 turns for sensitivity tuning
- High switching frequency of 250 Hz and fast response time of 2 ms
- IP65 rated enclosure for dust and water protection
- Shock and vibration resistant according to IEC 68
- Connection via male M12 4-pin connector and daisy chain cable with female M12 connector
- Operating temperature range from -10 °C to +55 °C
- Coil ratings of 24 V DC, 2 W for solenoid valve operation
- Operating pressure range of 4 to 7 bar for pneumatic valve
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with pneumatic and electrical sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Pneumatic valve control systems
- ZoneControl applications requiring precise sensing
- Compressed air or neutral gas valve actuation
Standards & Compliance
- AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
- Supports use of non-lubricated or lubricated neutral gases, reducing environmental impact
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK IRL-P211E50 Photoelectric Retro-Reflective Sensor with Pneumatic Valve is available for immediate purchase, ideal for industrial automation and pneumatic control applications.
