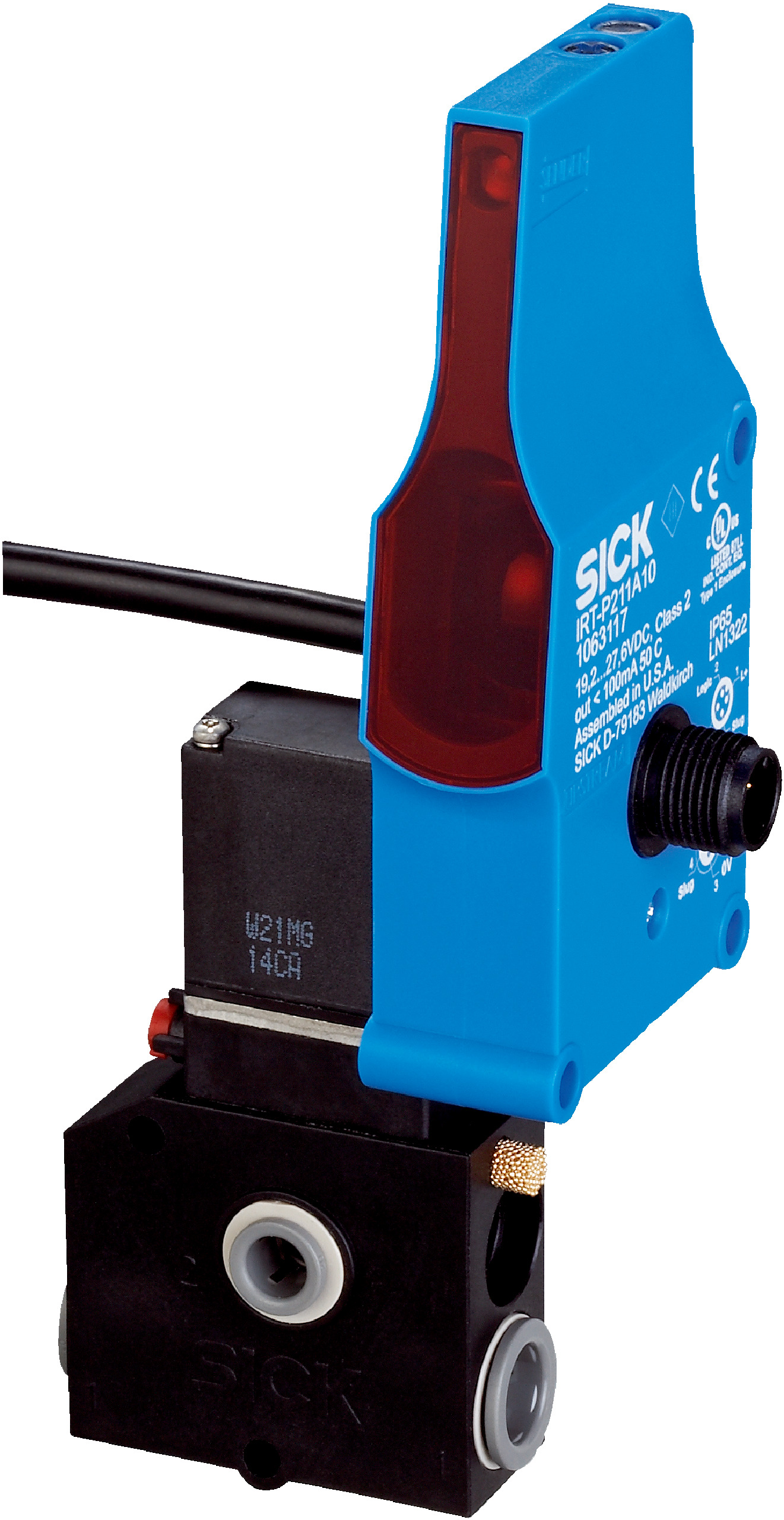

Photoelectric Retro-Reflective Sensor with Pneumatic Valve | Sensing Range 250mm to 1500mm | IP65 Rated | by SICK
The Photoelectric Retro-Reflective Sensor with Pneumatic Valve is designed for industrial automation, featuring a sensing range from 250 mm to 1500 mm and a fast response time of 2 ms. Ideal for pneumatic valve control systems, this sensor ensures precise detection and reliable operation in various applications, with an IP65 rated enclosure for dust and water protection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor
- Actuator: Pneumatic, valve on board (3/2-way valve)
- Max. number of sensors: Approx. 30 to 50 depending on configuration
- Logical principle of operation: Single accumulation
- Type of release: Single release, block (slug) release
- Sensing range: 250 mm to 1500 mm
- Focus: 7°
- Light source: Visible red LED
- Light spot size at 500 mm: Ø 20 mm
- Adjustment: Potentiometer with 9 turns
- Supply voltage: 19.2 V DC to 27.6 V DC
- Current consumption: 20 mA
- Switching output: PNP
- Output current max: ≤ 100 mA
- Response time: 2 ms
- Switching frequency: 250 Hz
- Connection type: Male M12, 4-pin connector
- Circuit protection: Types A, C, D
- Protection class: III
- Enclosure rating: IP65
- Shock and vibration resistance: According to IEC 68
- Operating temperature: -10 °C to +55 °C
- Storage temperature: -40 °C to +75 °C
- Medium for valves: Compressed air or neutral gases, filtered, lubricated or non-lubricated
- Operating pressure range: 2 bar to 8 bar
- Air flow rate: Approx. 20 Nl/min
- Ventilation capacity: Approx. 130 Nl/min
- Dimensions (H x L x W): 147mm x 49mm x 50mm
- Weight: 0.175 kg
Key Features
- Photoelectric retro-reflective sensor with visible red LED light
- Pneumatic actuator with valve on board (3/2-way valve)
- Sensing range from 250 mm to 1500 mm with 7° focus and angle of dispersion
- Potentiometer adjustment with 9 turns for sensitivity tuning
- High switching frequency of 250 Hz and fast response time of 2 ms
- IP65 rated enclosure for dust and water protection
- Shock and vibration resistant according to IEC 68
- Connection via male M12 4-pin connector and daisy chain cable with female M12 connector
- Operating temperature range from -10 °C to +55 °C
- Valve medium: compressed air or neutral gases, filtered, lubricated or non-lubricated
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with electrical and pneumatic systems to ensure proper connection and compliance with safety standards.
Applications
- Industrial automation for object detection
- Pneumatic valve control systems
- ZoneControl applications requiring precise sensing
- Compressed air or neutral gas valve actuation
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable ABS plastic housing extends product lifespan, reducing waste
- Supports use with filtered and neutral gases, minimizing environmental contamination
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now

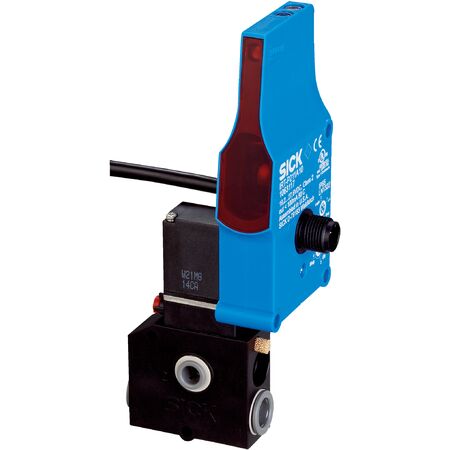

The SICK IRL-P211E41 Photoelectric Retro-Reflective Sensor with Pneumatic Valve is available for immediate purchase, ideal for industrial automation and pneumatic control applications.
