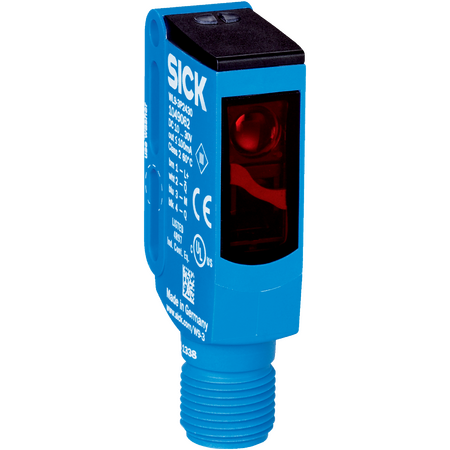

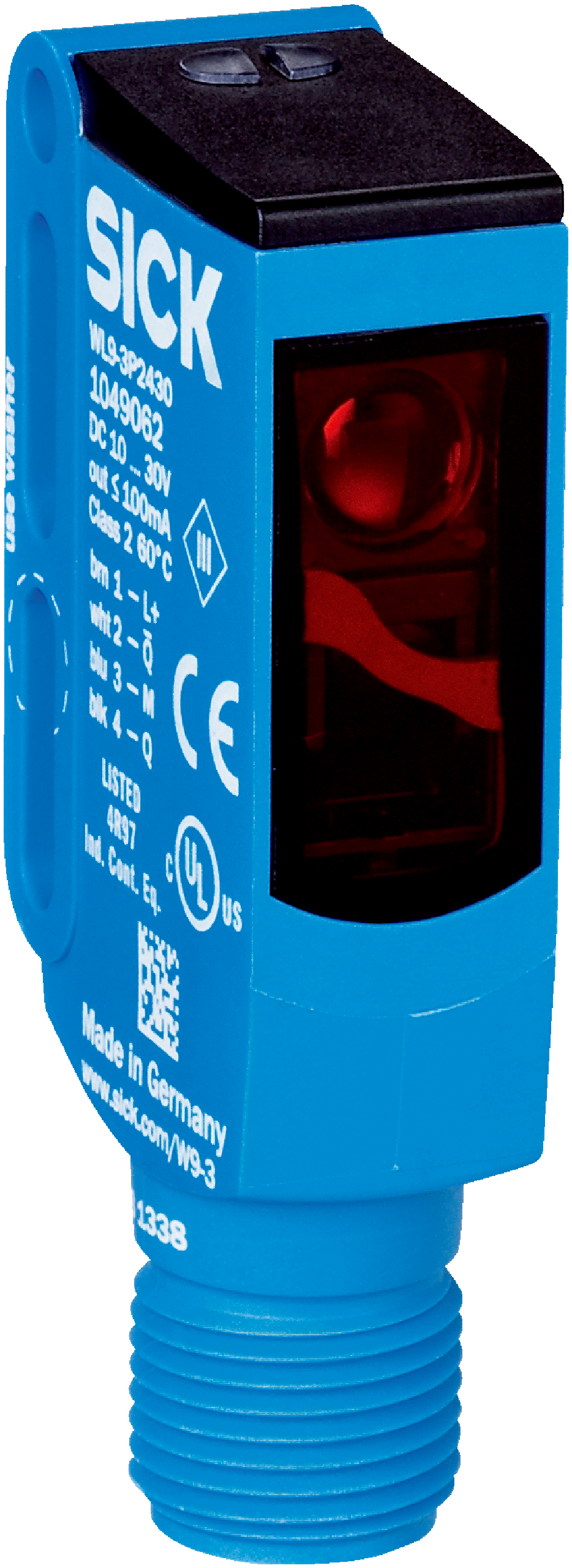

Photoelectric Retro-Reflective Sensor | PNP Output | IP66/IP67/IP69K Rated | 4m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, featuring a PNP output and a robust IP66/IP67/IP69K rating. With a sensing range of up to 4 meters and a high switching frequency of 1,000 Hz, it ensures reliable object detection and safety monitoring in manufacturing processes. Built to withstand harsh environments, this sensor is perfect for material handling and packaging systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Sensor, Retro-Reflective Sensor, PNP Photo Sensor, Industrial Object Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Housing material: Plastic VISTAL®
- Optics material: Plastic PMMA
- Light spot size: Ø 45 mm at 1.5 m
- Wave length: 650 nm
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with visible red light
- Sensing range up to 4 meters without reflector
- PinPoint LED light source with 650 nm wavelength
- Rectangular housing design with M3 mounting hole
- High switching frequency of 1,000 Hz and response time under 0.5 ms
- IP66, IP67, and IP69K rated for robust protection
- Operating temperature range from -40°C to +60°C
- Polarizing filter included to reduce false triggers
- Complementary PNP output with light/dark switching mode
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor systems to ensure proper setup and safety compliance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable housing materials extend product life and reduce waste
- Complies with China RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WL9-3P2430 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety monitoring applications.
