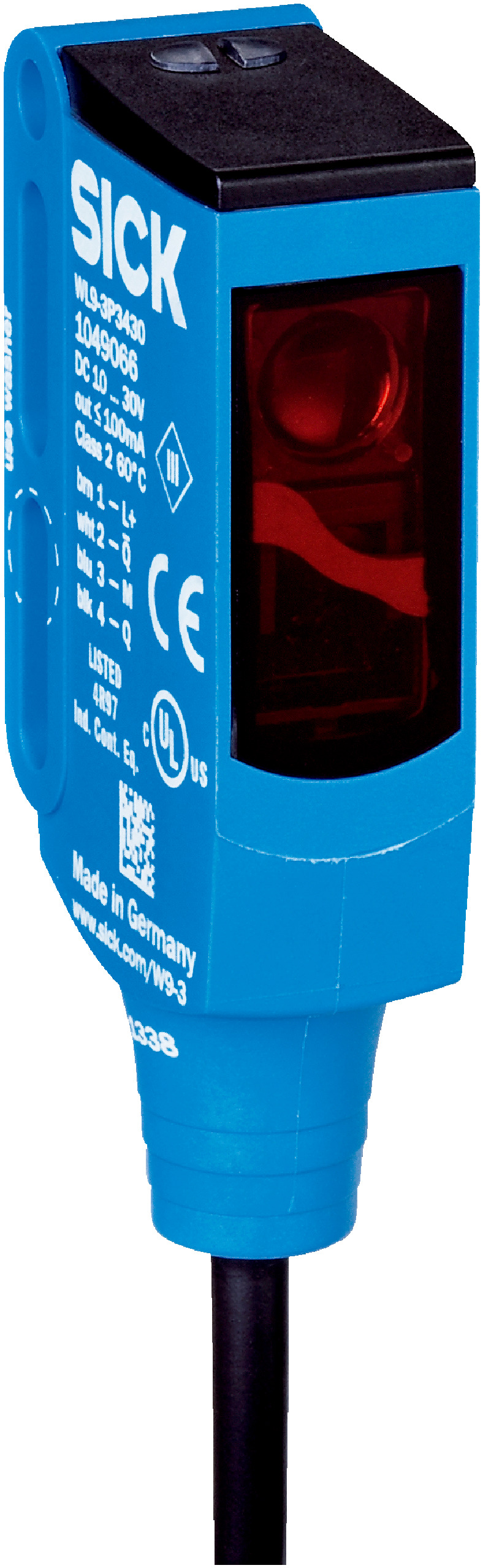

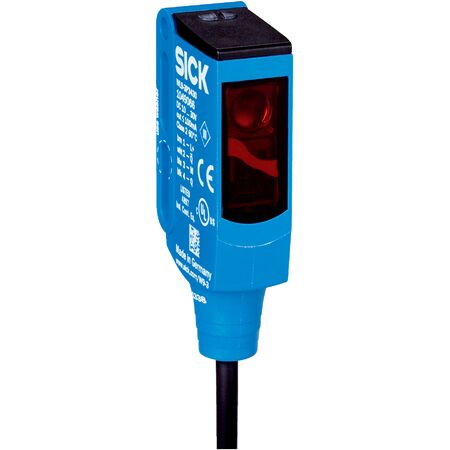

Photoelectric Retro-Reflective Sensor | PNP Output | IP66/IP67/IP69K Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor WL9-3P3030S27 is designed for industrial automation, featuring a PNP output and a sensing range of up to 4 meters without a reflector. With a fast response time of under 0.5 ms and robust IP66/IP67/IP69K protection, this sensor is perfect for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor | PNP Output | IP66/IP67/IP69K Rated | Fast Response Time | by SICK
Brand: SICK
SKU: 1052898
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Optical sensor, PNP sensor, Industrial proximity sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, complementary
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection: Cable with M8 male connector, 4-pin, 200 mm
- Protection class: III
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Light spot size at 1.5 m: Ø 45 mm
- Wave length: 650 nm
- Dimensions (H x L x W): 49.8mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with visible red light
- PinPoint LED light source with 650 nm wavelength
- Sensing range up to 4 meters without reflector
- Rectangular plastic housing with IP66, IP67, and IP69K protection ratings
- Fast response time under 0.5 ms and switching frequency of 1000 Hz
- Complementary PNP output with light/dark switching mode
- Polarizing filter included to reduce false triggers
- Wide operating temperature range from -40°C to +60°C
Professional Installation Requirements
- Installation by a qualified electrician or technician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP69K rated housing minimizes environmental damage and extends product life
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WL9-3P3030S27 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
