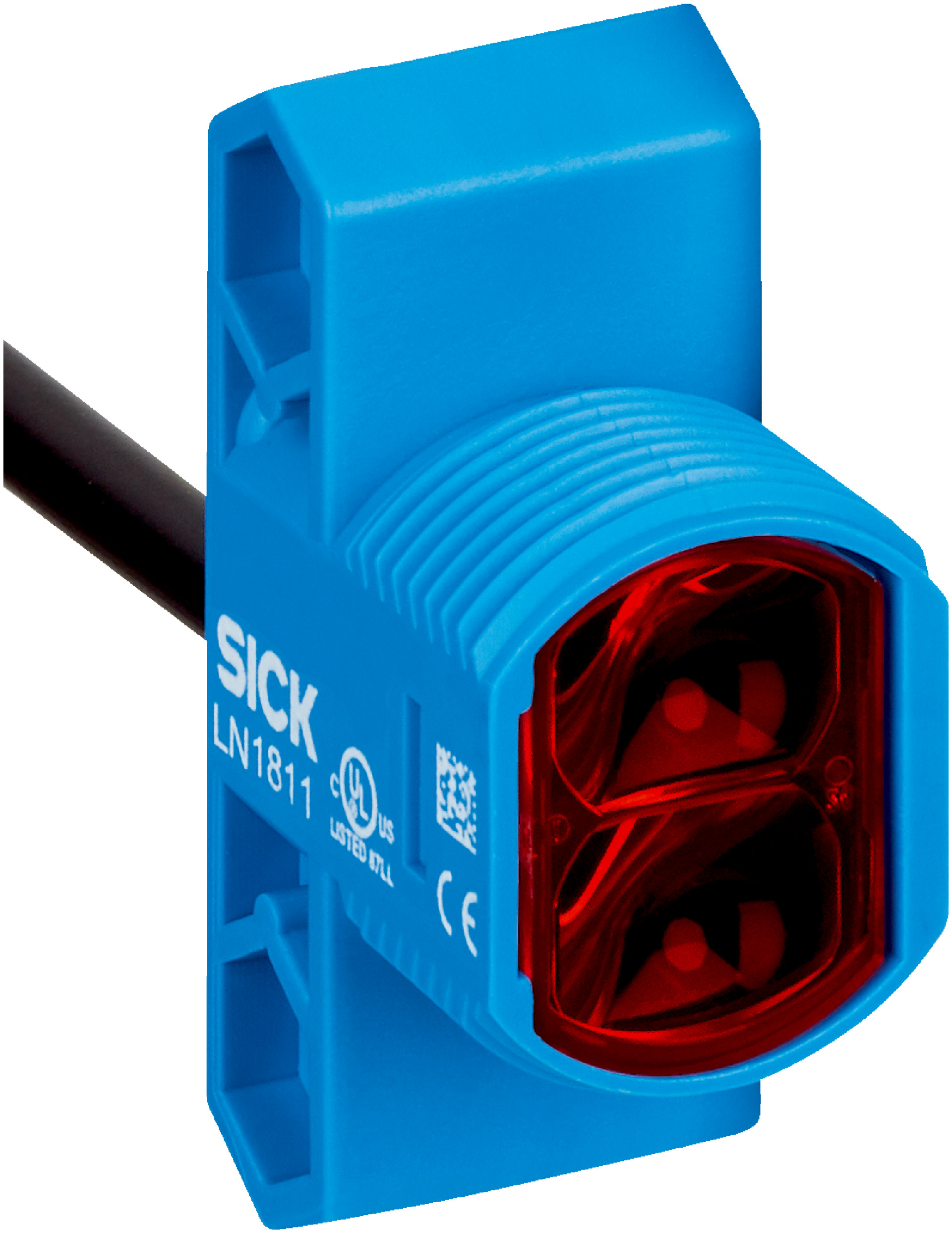

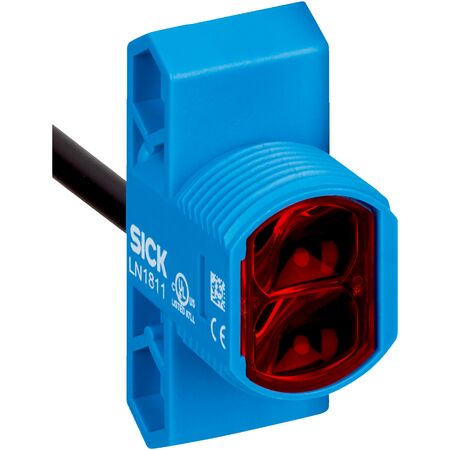

Photoelectric Retro-Reflective Sensor | PNP Output | IP67 Rated | Sensing Range Up to 6.8m | by SICK
The Photoelectric Retro-Reflective Sensor ZLD18-1FZDK2 is designed for industrial automation, featuring a PNP output and a sensing range of up to 6.8 meters. With a fast response time of ≤ 500 µs and an IP67 rated enclosure, it ensures reliable performance in demanding environments. Ideal for safety and presence detection in manufacturing lines, this sensor is built to withstand harsh conditions while providing efficient object detection.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, dark switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Light source: PinPoint LED, wavelength 625 nm
- Light spot size: Ø 25 mm at 1000 mm distance
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Cable: 3 m PVC, 4-pin terminal connection
- Operating temperature: -40°C to +55°C
- Storage temperature: -40°C to +70°C
- Enclosure rating: IP67
- Dimensions (H x L x W): 35mm x 23mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Sensing range up to 6.8 meters
- Hybrid housing design with blue color
- M18 mounting system for head or side installation
- IP67 rated enclosure for dust and water protection
- Operating temperature range from -40°C to +55°C
- Terminal connection Wago 733-104, 4-pin, 3 meter cable included
- Dark switching PNP output with max output current of 100 mA
- Fast response time ≤ 500 µs and switching frequency up to 1,000 kHz
Professional Installation Requirements
- Installation by a qualified electrician or trained technician is recommended to ensure proper wiring and compliance with electrical standards.
Applications
- Industrial automation for object detection
- Safety and presence detection in manufacturing lines
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLD18-1FZDK2 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety detection applications.
