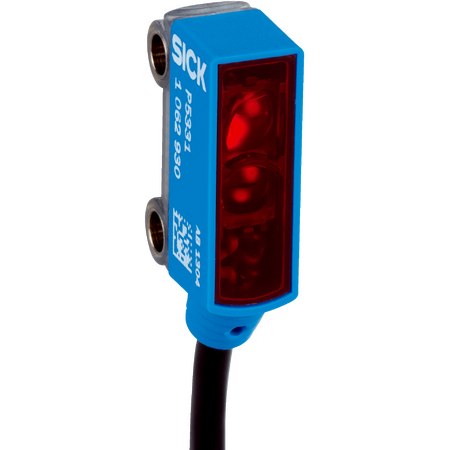

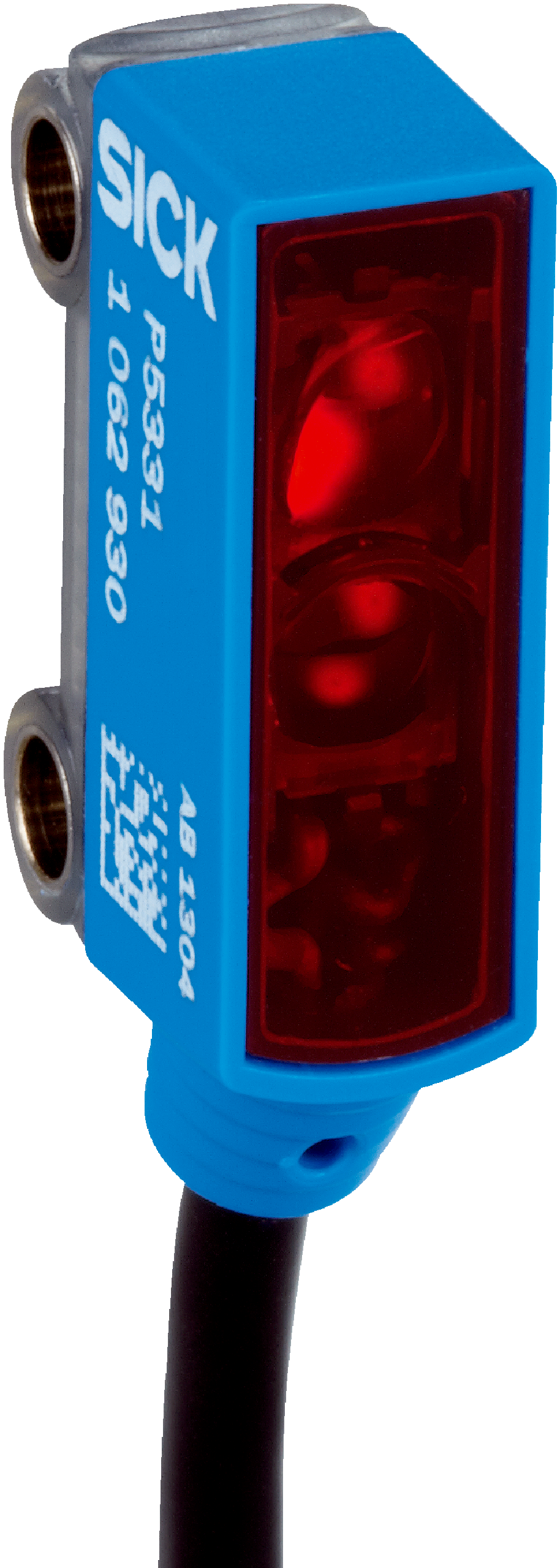

Photoelectric Retro-Reflective Sensor | PNP Output | IP67 Rated | 1.2m Sensing Range | by SICK
The Photoelectric Retro-Reflective Sensor WL2SG-2F1235 is designed for precise object detection, featuring a PNP output and a sensing range of up to 1.2 meters without a reflector. With an IP67 rated enclosure, it ensures durability in industrial automation applications, making it ideal for detecting transparent objects in manufacturing and safety systems.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Transparent object sensor, PNP output sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, dark switching mode
- Maximum output current: ≤ 50 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection: 4-wire cable, 5 m length, PVC material
- Cable diameter: 3 mm
- Housing material: Plastic ABS/PC
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -20 °C to +50 °C
- Storage temperature: -40 °C to +75 °C
- Light wavelength: 640 nm
- Light spot size: Ø 12 mm at 250 mm distance
- Polarizing filter included
- MTTFD: 1,987 years
- Dimensions (H x L x W): 22mm x 14mm x 8mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Visible red light with PinPoint LED light source
- Sensing range up to 1.2 meters without reflector
- AutoAdapt feature for optimized sensing
- Dark switching PNP output with high switching frequency of 1000 Hz
- IP67 rated enclosure for dust and water protection
- Polarizing filter included for enhanced detection
- Compact rectangular housing design
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing
- Safety and control systems requiring precise sensing
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable IP67 housing reduces waste by extending product life
- Complies with China RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific terms.
Available Now
The SICK WL2SG-2F1235 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and transparent object detection applications.
