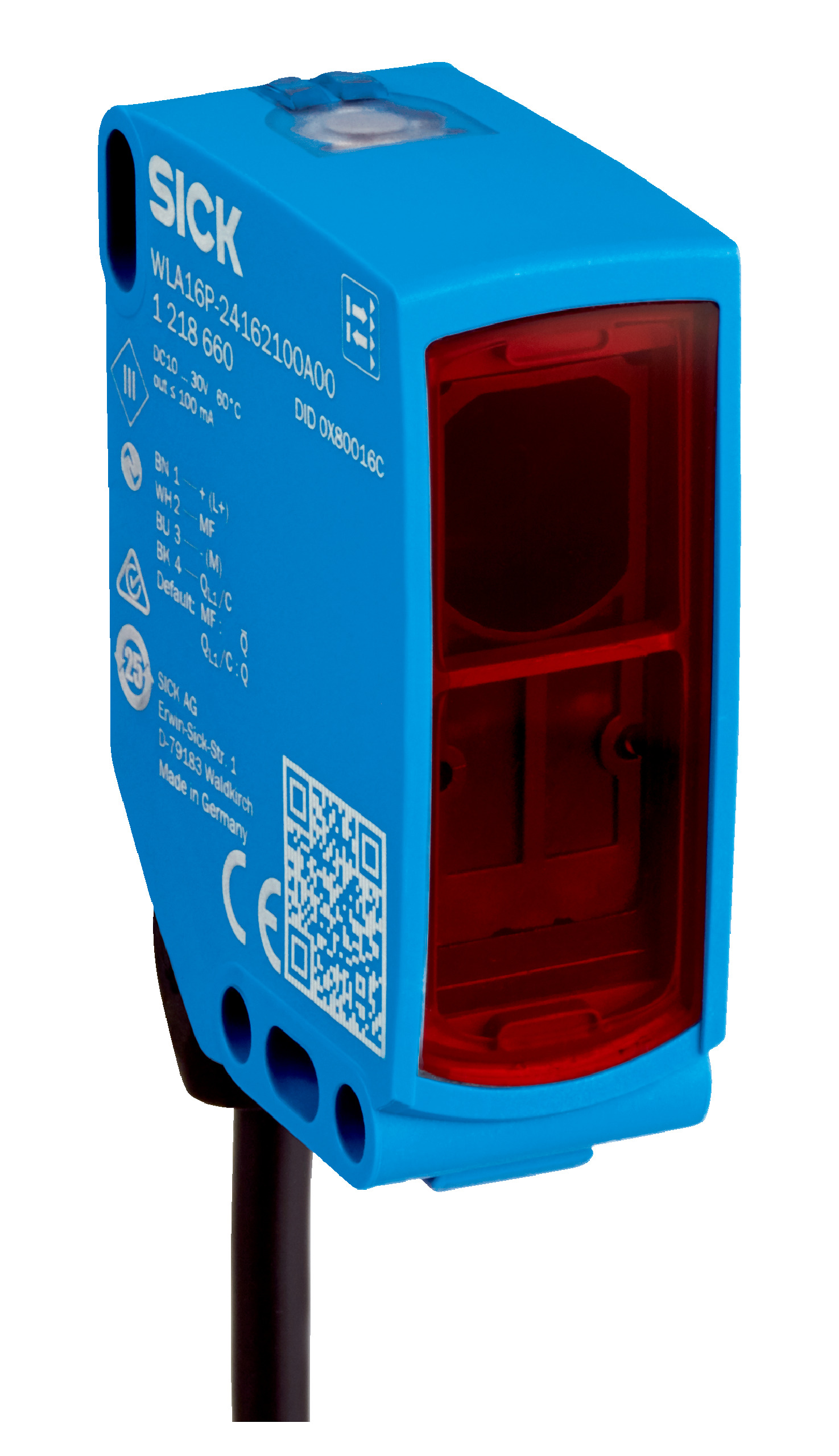

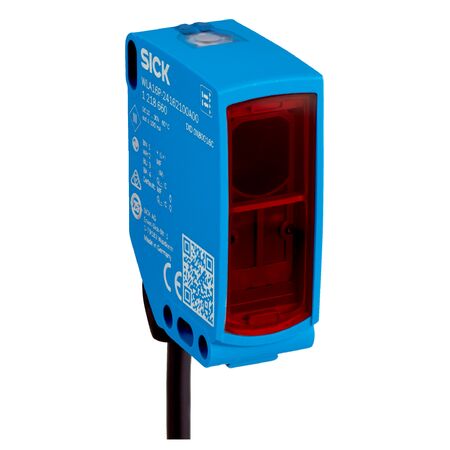

Photoelectric Retro-Reflective Sensor | Sensing Range Up to 10m | IP66 to IP69 Rated | by SICK
The Photoelectric Retro-Reflective Sensor WLA16P-1HG12100ZZZ is designed for precise object detection in industrial automation, featuring a sensing range of up to 10 meters and robust IP66 to IP69 protection. With a fast response time of ≤ 500 µs and high shock resistance, this sensor is perfect for harsh environments, ensuring reliable performance and minimal downtime.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 30 mA at 24 V
- Switching frequency: 1,000 Hz
- Response time: ≤ 500 µs
- Repeatability: 150 µs
- Output type: 2 complementary NPN digital outputs
- Protection rating: IP66, IP67, IP69
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Shock resistance: 50 g, 11 ms and 6 ms
- Vibration resistance: 10 Hz to 2,000 Hz
- Cable: 4-wire, 2 m length, PVC, Ø 4.8 mm
- Housing material: Plastic VISTAL®
- Front screen: Plastic PMMA
- Dimensions (H x L x W): 56mm x 42mm x 20mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 10 m with recommended range 0 to 7 m
- PinPoint LED visible red light with 635 nm wavelength
- LED indicators for alignment, power, and object detection status
- On delay pre-set to 200 ms
- High shock and vibration resistance
- Protection class III with reverse polarity and short-circuit protection
- Cable connection with 2 m length and deep-freeze property
Professional Installation Requirements
- Installation by qualified personnel recommended to ensure proper alignment and electrical connection according to safety standards.
Applications
- Object detection in industrial automation
- Detecting objects wrapped in film
- Use in harsh environments requiring IP66 to IP69 protection
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Long LED service life of 100,000 hours reduces waste and replacement frequency
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for details.
Available Now
The SICK WLA16P-1HG12100ZZZ Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
