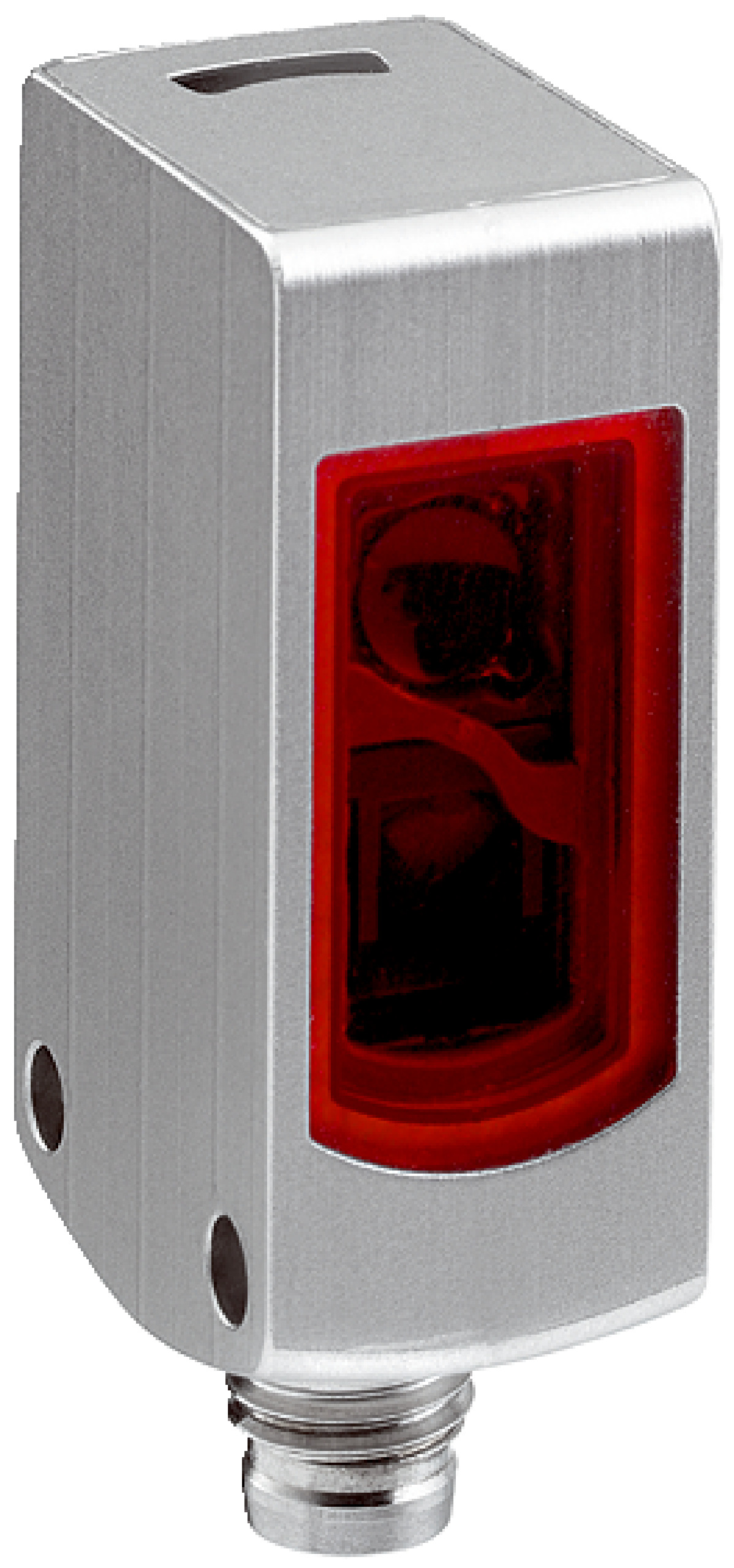

Photoelectric Retro-Reflective Sensor | Sensing Range Up to 5m | IP66/IP67/IP68/IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor is designed for hygienic and washdown zones, featuring a sensing range of up to 5 meters and a fast response time of under 0.5 ms. With its durable stainless steel housing and PNP light/dark switching output, this sensor is perfect for industrial automation and safety systems, ensuring reliable detection of transparent objects in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor | Sensing Range Up to 5m | IP66/IP67/IP68/IP69K Rated | by SICK
Brand: SICK
SKU: 1046449
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Washdown sensor, Stainless steel photoelectric sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor without reflector minimum distance
- Sensing range max.: 0 m to 5 m
- Polarisation filters: Yes
- Light source: PinPoint LED, visible red light, 650 nm wavelength
- Light spot size: Ø 45 mm at 1.5 m
- Adjustment: Single teach-in button
- Housing: Metal, Stainless steel V4A (1.4404, 316L), Plastic PMMA front screen
- Connection: Cable with M12 male connector, 4-pin, 150 mm cable length
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Protection class: III
- Output type: PNP, light/dark switching, max output current ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Enclosure rating: IP66, IP67, IP68, IP69K
- Operating temperature: -30 °C to +60 °C
- Storage temperature: -30 °C to +75 °C
- Dimensions (H x L x W): 49mm x 22mm x 15mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Sensing range up to 5 meters
- Polarisation filters included
- PinPoint LED visible red light with 650 nm wavelength
- Single teach-in button for adjustment
- Washdown housing design made of stainless steel V4A (1.4404, 316L)
- IP66, IP67, IP68, IP69K rated enclosure
- AutoAdapt feature for optimized sensing
- Fast response time under 0.5 ms and switching frequency up to 1000 Hz
- Complementary output function with PNP light/dark switching
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Hygienic and washdown zones
- Detecting transparent objects
- Industrial automation and safety systems
Standards & Compliance
- Complies with AS/NZS 61010 for electrical equipment safety
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Durable stainless steel housing reduces waste by extending product life
- Energy-efficient LED light source minimizes power consumption
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK WLG4S-3P3432V Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and hygienic zone applications.
