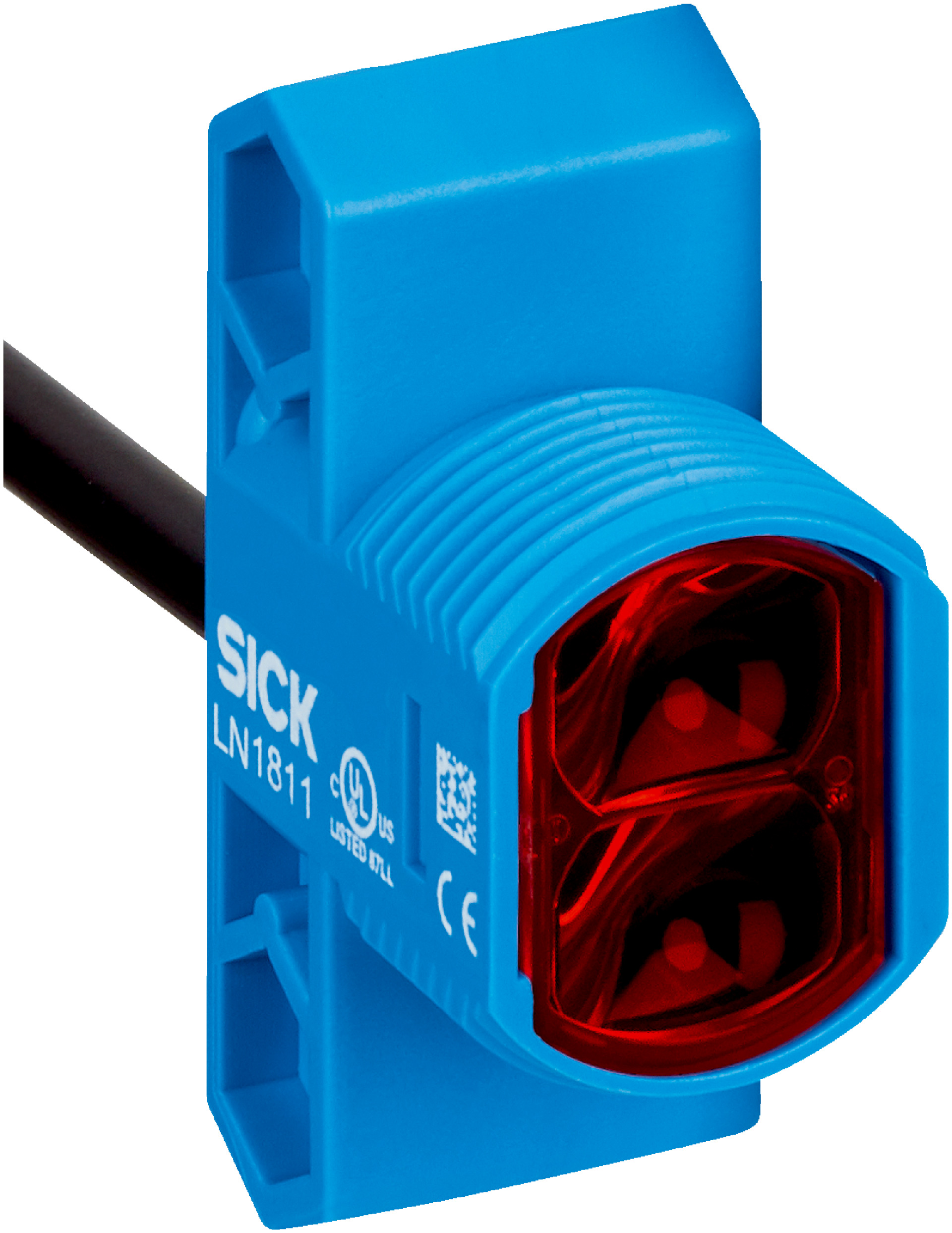

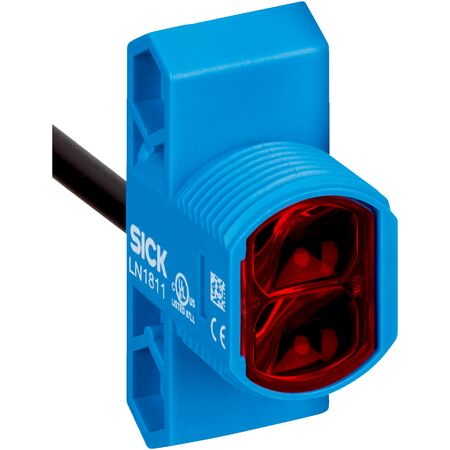

Photoelectric Retro-Reflective Sensor | Sensing Range up to 6.8m | IP67 Rated | Dual Lens System | by SICK
The Photoelectric Retro-Reflective Sensor ZLD18-1PZ1G2 is designed for industrial automation, featuring a sensing range of up to 6.8 meters and a high switching frequency of 1,000 kHz. With its durable IP67 rated enclosure and visible red light source, this sensor is perfect for object detection in manufacturing and safety systems, ensuring reliable performance in various environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: PNP, light switching
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection type: 4-wire cable, 2 m length, PVC material
- Conductor cross section: 0.13 mm²
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Wave length: 625 nm
- Light spot size at 1000 mm: Ø 25 mm
- Dimensions (H x L x W): 35mm x 23mm x 14mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red light with PinPoint LED light source
- Sensing range up to 6.8 meters
- Hybrid housing design with blue color
- M18 mounting system for head or side installation
- High switching frequency of 1,000 kHz
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -40°C to +55°C
- Polarisation filter included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems
- Material handling and packaging
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product life
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLD18-1PZ1G2 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and object detection applications.
