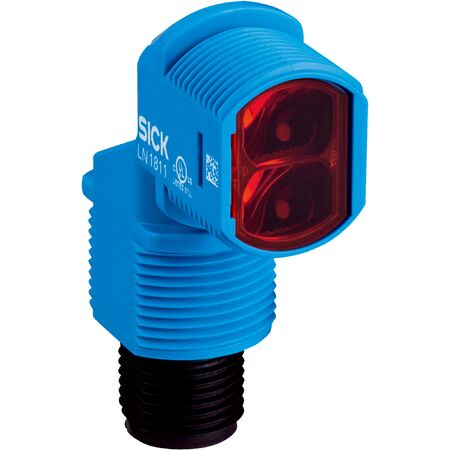

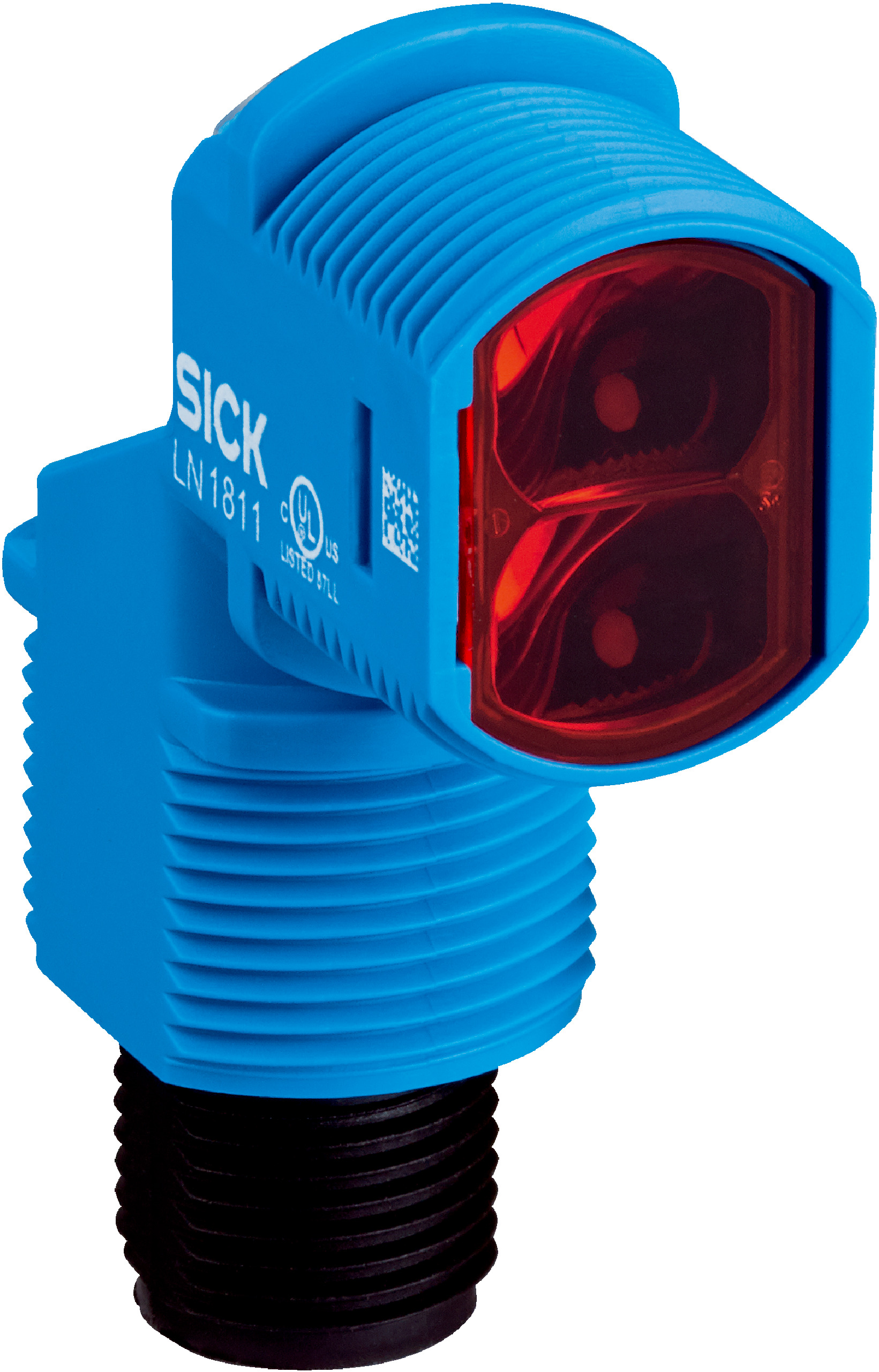

Photoelectric Retro-Reflective Sensor | Sensing Range up to 4.2m | IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor ZLD18-4AB4A8 is designed for industrial automation, featuring a sensing range of up to 4.2 meters and a high switching frequency of 1,000 kHz. With its robust IP67-rated housing and dual lens system, it ensures reliable object detection in manufacturing and safety applications, making it ideal for precise sensing in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: ≤ 15 mA
- Switching output: Push-pull PNP/NPN
- Output current max: 100 mA
- Response time: ≤ 500 µs
- Switching frequency: 1,000 kHz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Housing material: Plastic ABS
- Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -40 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Light spot size at 1000 mm: Ø 125 mm
- Wave length: 625 nm
- Dimensions (H x L x W): 44.2mm x 33.3mm x 13.6mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with 625 nm wavelength
- Sensing range up to 4.2 meters
- Push-pull PNP/NPN switching outputs with light and dark switching modes
- High switching frequency of 1,000 kHz and response time ≤ 500 µs
- Robust plastic ABS housing with IP67 enclosure rating
- Operating temperature range from -40 °C to +55 °C
- Polarisation filter included for improved sensing reliability
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Manufacturing process control
- Safety and security systems requiring precise sensing
- Material handling and packaging lines
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable IP67 housing reduces waste by extending product lifespan
- Complies with China-RoHS for restricted hazardous substances
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK ZLD18-4AB4A8 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and manufacturing applications.
