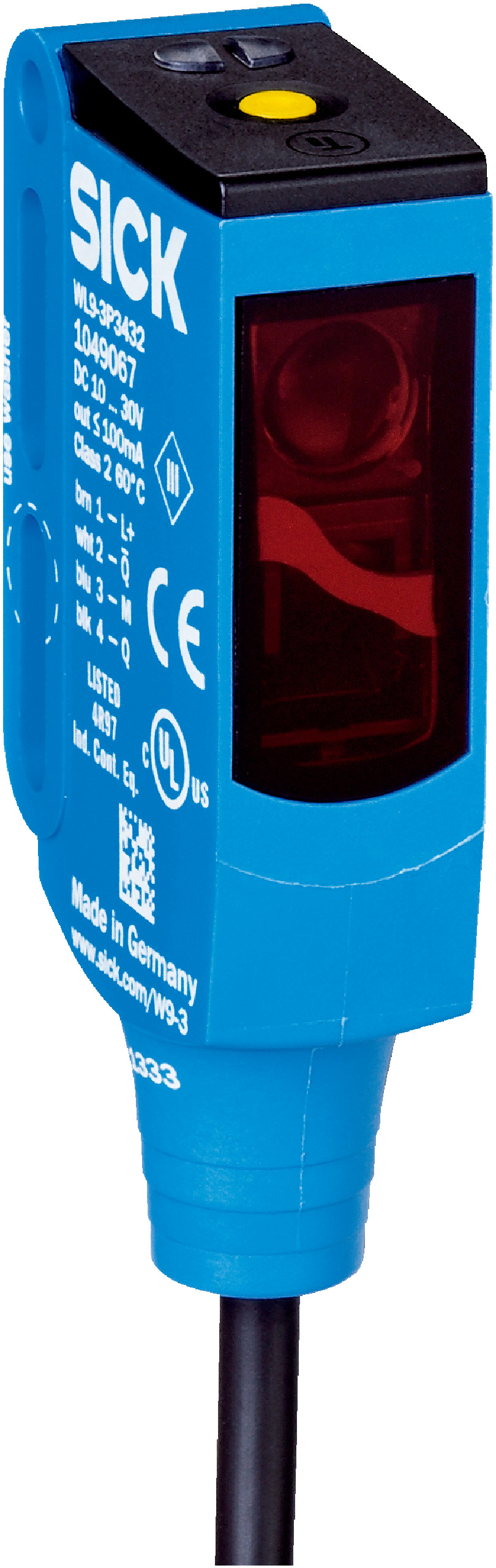

Photoelectric Retro-Reflective Sensor | Detects Transparent Objects | Fast Response Time | IP66/IP67/IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL9G-3N1132P05 is designed for industrial automation, effectively detecting transparent objects with its fast response time of under 0.5 ms. Featuring a high protection rating of IP66/IP67/IP69K and a visible red light source, this sensor is perfect for machine safety and process control applications, ensuring reliable performance in demanding environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: NPN complementary
- Switching mode: Light/dark switching
- Output current max: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1000 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Housing material: Plastic, VISTAL®
- Optics material: Plastic, PMMA
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Mounting hole: M3
- Light wavelength: 650 nm
- Light spot size at 1.5 m: Ø 45 mm
- Includes mounting bracket BEF-WN-W9-2 and reflector PL20F
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Detects transparent objects effectively
- Visible red light with PinPoint LED light source
- Single teach-in button for easy adjustment
- AutoAdapt feature for optimized sensing
- Polarizing filter included
- High protection rating: IP66, IP67, IP69K
- Fast response time under 0.5 ms and switching frequency of 1000 Hz
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper setup and compliance with safety standards.
Applications
- Industrial automation for object detection
- Detection of transparent objects
- Machine safety and process control
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable housing materials extend product lifespan, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for detailed warranty terms.
Available Now
The SICK WL9G-3N1132P05 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and transparent object detection applications.
