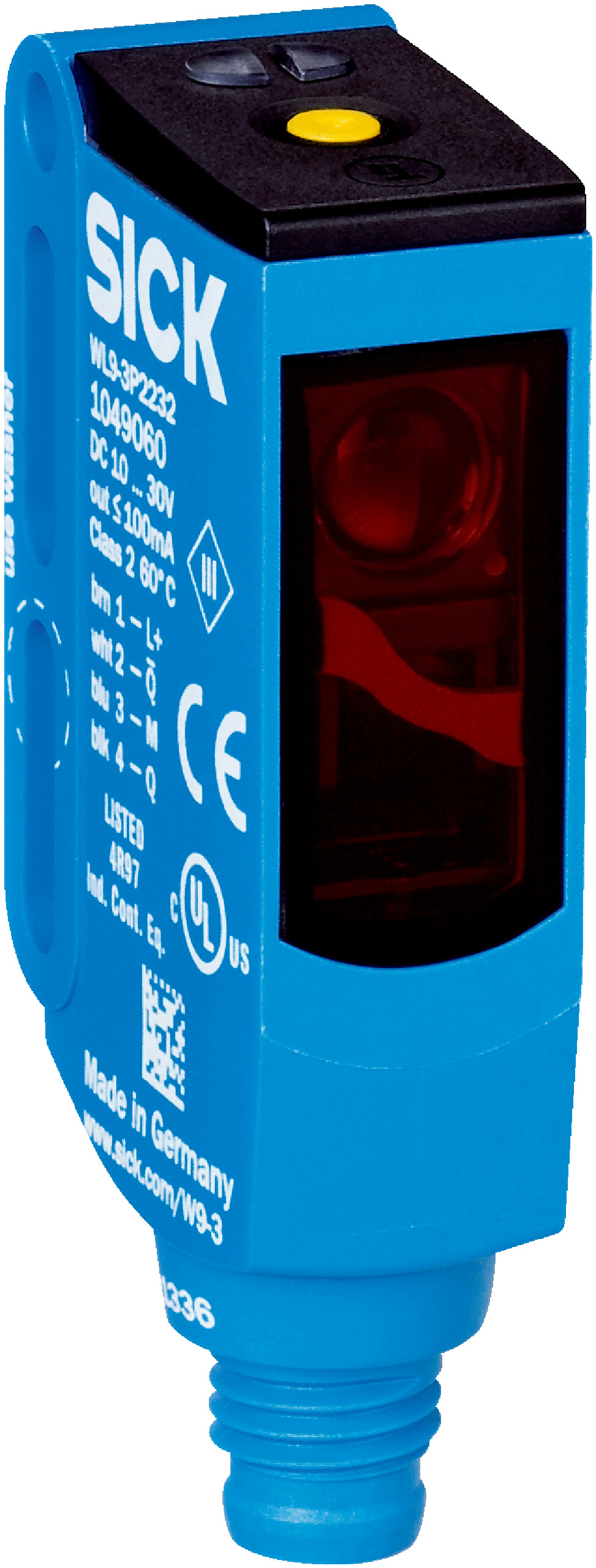

Photoelectric Retro-Reflective Sensor | Detects Transparent Objects | Fast Response Time | IP66/IP67/IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL9G-3F2232S01 is designed for industrial automation, effectively detecting transparent objects with its advanced autocollimation optics. With a fast response time of under 0.5 ms and a high switching frequency of 1,000 Hz, this sensor is perfect for manufacturing lines and harsh environments, featuring robust IP66/IP67/IP69K protection for reliable performance.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP, dark switching mode
- Maximum output current: ≤ 100 mA
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male M8, 4-pin connector
- Protection class: III
- Enclosure rating: IP66, IP67, IP69K
- Housing material: Plastic (VISTAL®)
- Optics material: Plastic (PMMA)
- Operating temperature: -40°C to +60°C
- Storage temperature: -40°C to +75°C
- Light source: PinPoint LED, 650 nm wavelength
- Light spot size at 1.5 m: Ø 45 mm
- Dimensions (H x L x W): 49.8mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Detects transparent objects effectively
- Visible red light with 650 nm wavelength using PinPoint LED
- Single teach-in button for easy adjustment
- AutoAdapt feature for optimized sensing
- High switching frequency of 1,000 Hz and fast response time under 0.5 ms
- Robust plastic housing (VISTAL®) with IP66, IP67, IP69K protection
- Polarizing filter included to reduce interference
- Wide ambient operating temperature range from -40°C to +60°C
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing lines
- Use in harsh environments requiring IP66, IP67, IP69K protection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL9G-3F2232S01 sensor is available for immediate purchase, ideal for industrial automation and transparent object detection applications.
