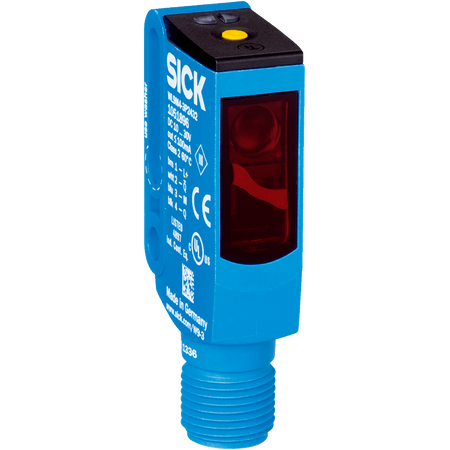

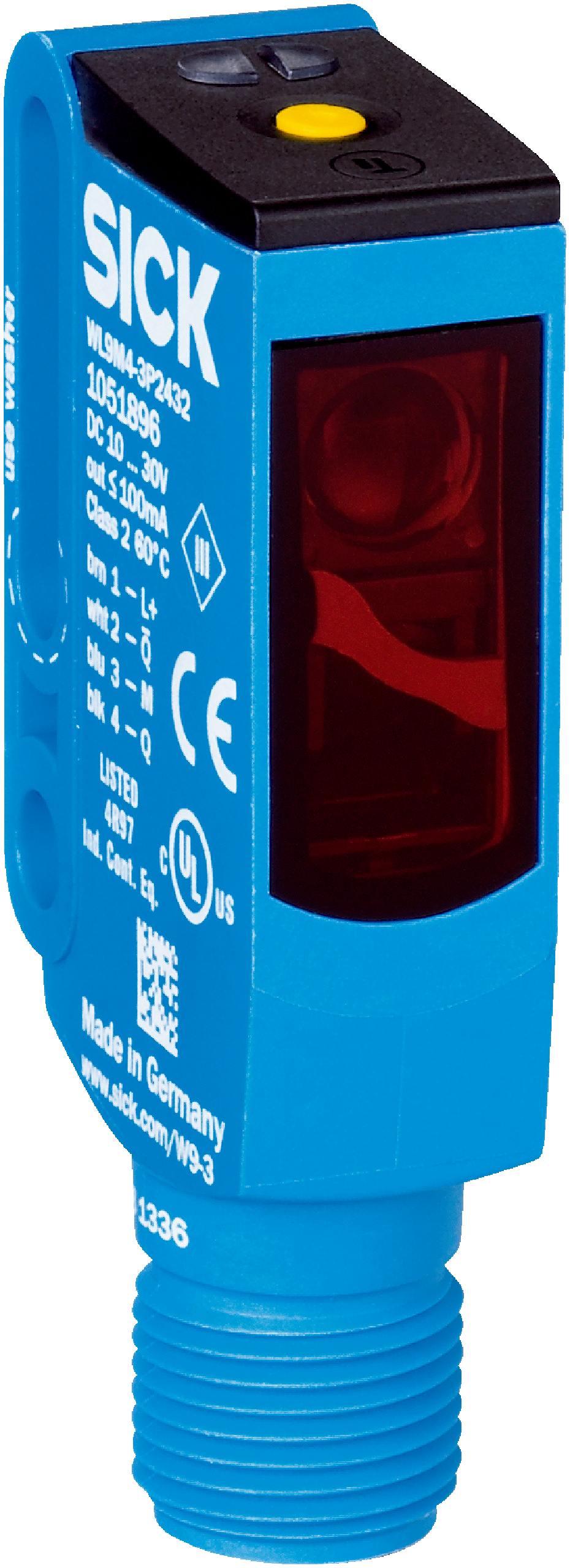

Photoelectric Retro-Reflective Sensor | Detects Transparent Objects | IP66/IP67/IP69K Rated | by SICK
The Photoelectric Retro-Reflective Sensor is designed for industrial automation, effectively detecting transparent objects with a high switching frequency of 1,000 Hz and a response time under 0.5 ms. Built with robust VISTAL® plastic housing and PMMA optics, it operates in harsh environments with IP66, IP67, and IP69K protection, making it ideal for manufacturing processes and object detection applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Transparent object sensor, Industrial proximity sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP complementary
- Output current max: ≤ 100 mA
- Switching mode: Light/dark switching
- Response time: < 0.5 ms
- Switching frequency: 1,000 Hz
- Connection type: Male M12, 4-pin connector
- Circuit protection: Types A, B, C
- Protection class: III
- Housing material: Plastic (VISTAL®)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP66, IP67, IP69K
- Operating temperature: -40 °C to +60 °C
- Storage temperature: -40 °C to +75 °C
- Light source: PinPoint LED, 650 nm wavelength
- Light spot size: Ø 45 mm at 1.5 m
- Mounting hole: M4
- Dimensions (H x L x W): 52.2mm x 23.6mm x 12.2mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Detects transparent objects effectively
- Visible red light with PinPoint LED at 650 nm wavelength
- Single teach-in button for easy adjustment
- AutoAdapt feature for optimized sensing
- High switching frequency of 1,000 Hz and response time under 0.5 ms
- Robust plastic housing (VISTAL®) and PMMA optics
- Protection rating IP66, IP67, IP69K suitable for harsh environments
- Wide ambient operating temperature range from -40 °C to +60 °C
- Male M12 4-pin connector for easy integration
Professional Installation Requirements
- Installation should be performed by qualified personnel familiar with industrial sensor integration and electrical safety standards.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing processes
- Use in harsh environments requiring IP66, IP67, IP69K protection
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable design minimizes waste and replacement frequency
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL9M4G-3P2432 sensor is available for immediate purchase, ideal for industrial automation and transparent object detection applications.
