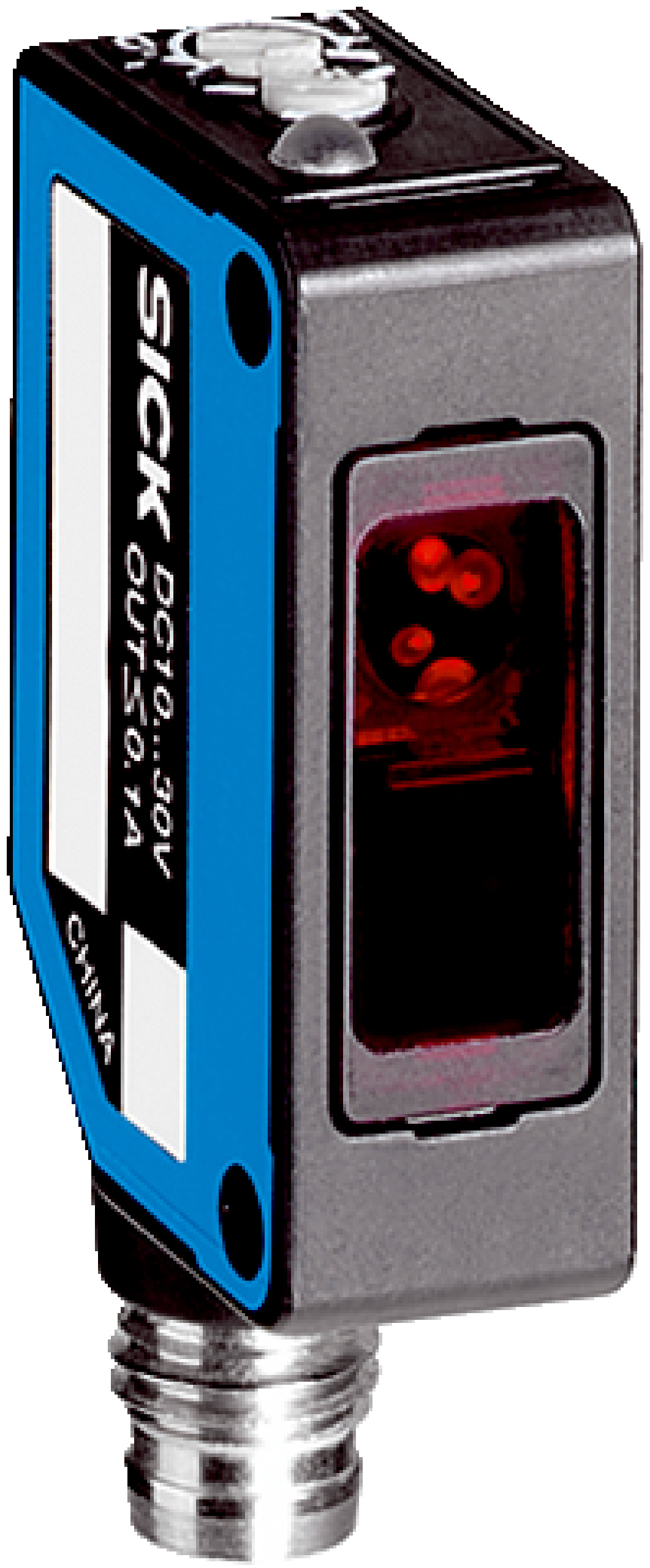

Photoelectric Retro-Reflective Sensor | Detects Transparent Objects | IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL8G-P1131S02 is designed for industrial automation, effectively detecting transparent objects with a sensing range of up to 1.7 m. Featuring a visible red LED light source and an IP67 rated enclosure, this sensor ensures reliable performance in challenging environments, making it ideal for manufacturing lines and precise sensing applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Product Name/Title: Photoelectric Retro-Reflective Sensor | Detects Transparent Objects | IP67 Rated | by SICK
Brand: SICK
SKU: 1051347
Alternatively Known As: Photoelectric sensor, Retro-reflective sensor, Transparent object sensor, SICK WL8G sensor
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor
- Sensing range: 0 m to 1.7 m (up to 3 m without reflector)
- Light source: Visible red LED, 650 nm wavelength
- Light spot size: Ø 70 mm at 2 m distance
- Supply voltage: 10 V DC to 30 V DC with ±10% ripple
- Current consumption: 30 mA
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light/dark selectable via rotary switch
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 3-pin M8 connector cable, 600 mm length
- Housing material: Plastic ABS; Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Includes stainless steel mounting bracket and reflector
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Detects transparent objects effectively
- Visible red light LED with 650 nm wavelength
- Potentiometer adjustment with 270° rotation
- IP67 rated enclosure for dust and water protection
- Polarizing filter included to reduce interference
- High switching frequency of 1,000 Hz
- Light/dark switching mode selectable via rotary switch
Professional Installation Requirements
- Installation should be performed by a qualified technician or electrician to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing lines
- Use in environments requiring precise sensing with retro-reflective technology
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life, reducing waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy for details.
Available Now
The SICK WL8G-P1131S02 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and transparent object detection applications.
