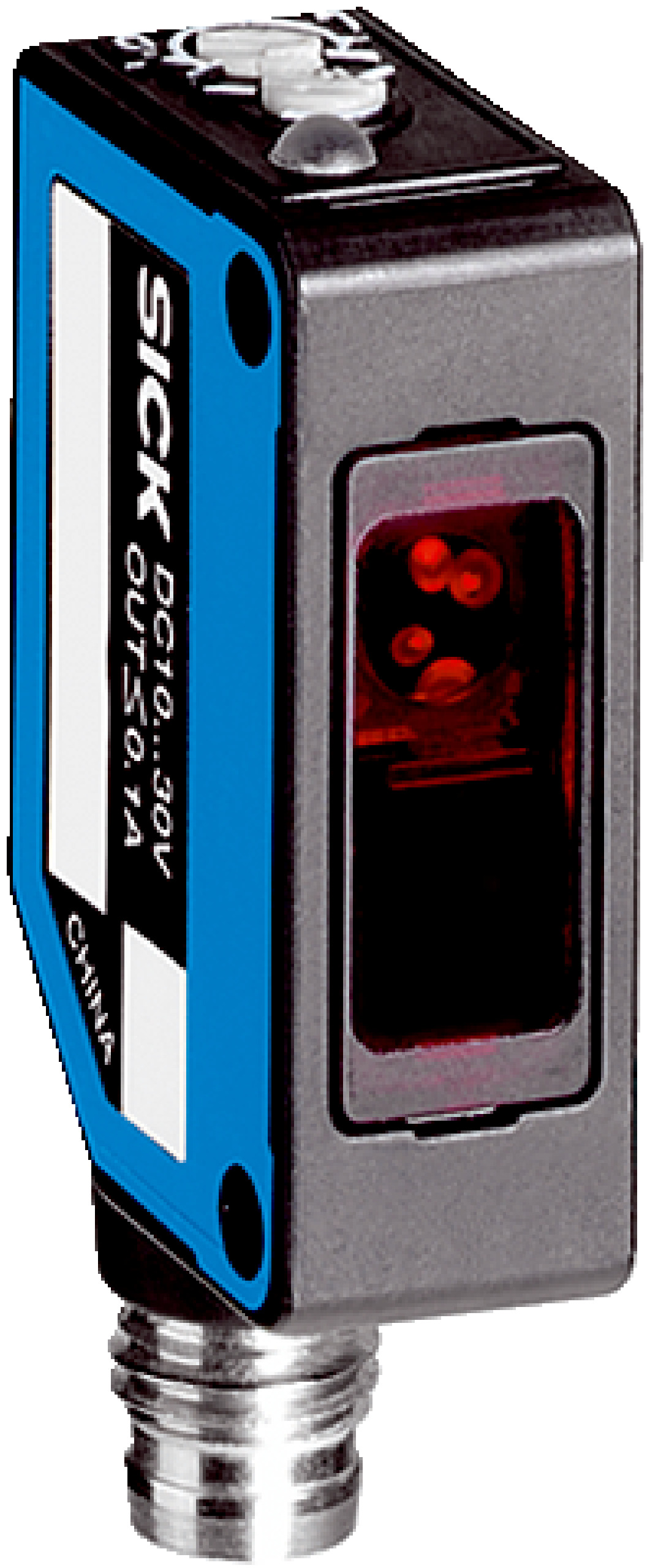

Photoelectric Retro-Reflective Sensor | Detects Transparent Objects | IP67 Rated | by SICK
The Photoelectric Retro-Reflective Sensor WL8G-N1131 is designed for industrial automation, effectively detecting transparent objects with a sensing range of up to 1.7 m. Featuring a visible red LED light source and a high switching frequency of 1,000 Hz, this sensor is perfect for manufacturing processes requiring reliable photoelectric sensing. Its IP67 rated enclosure ensures durability in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor
- Sensing range: 0 m to 1.7 m (up to 3 m without reflector)
- Light source: Visible red LED, 650 nm wavelength
- Adjustment: Potentiometer, 270°
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: NPN, max 100 mA
- Switching mode: Light/dark selectable
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: 3-wire cable, 2 m length, PVC material
- Housing material: Plastic ABS, Optics material: Plastic PMMA
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Includes stainless steel mounting bracket and reflector
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Detects transparent objects effectively
- Visible red light LED with 650 nm wavelength
- Potentiometer adjustment with 270° rotation
- NPN switching output with selectable light/dark switching mode
- High switching frequency of 1,000 Hz
- IP67 rated enclosure for dust and water protection
- Includes stainless steel mounting bracket and reflector
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure proper sensor alignment and electrical connection.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing processes
- Use in environments requiring reliable photoelectric sensing
Standards & Compliance
- Complies with AS/NZS 4801 – Occupational Health & Safety Management Systems
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL8G-N1131 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and transparent object detection applications.
