Photoelectric Retro-Reflective Sensor | Detects Transparent Objects | IP67 Rated | by SICK

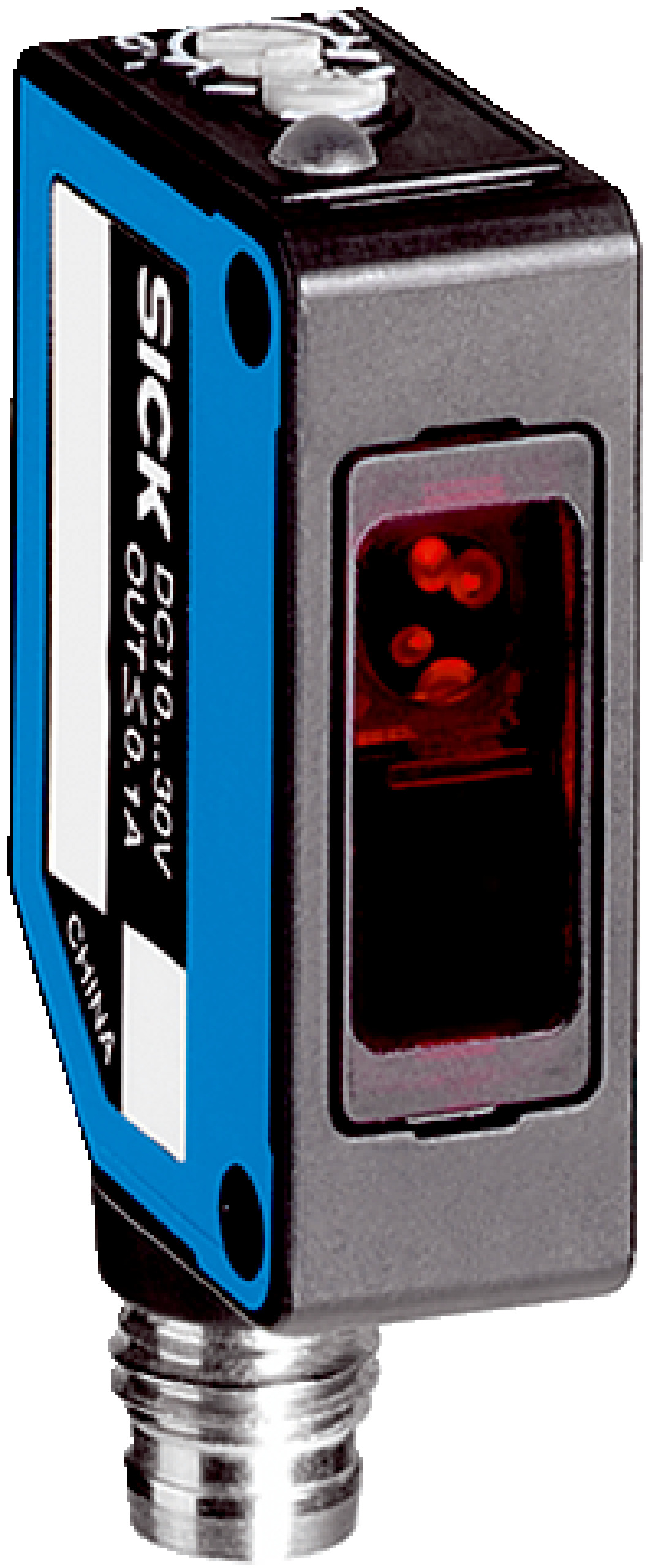

The SICK WL8G-P1131S03 Photoelectric Retro-Reflective Sensor is designed for industrial automation, effectively detecting transparent objects in manufacturing environments. With a rapid response time of ≤ 0.5 ms and an IP67 rating for dust and water protection, this sensor ensures reliable performance in conveyor systems and packaging lines. Its visible red light LED and adjustable potentiometer enhance detection capabilities, making it a versatile choice for various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, light/dark switching selectable
- Response time: ≤ 0.5 ms
- Switching frequency: 1000 Hz
- Signal voltage PNP HIGH/LOW: Approx. VS – 1.8 V / 0 V
- Output current max: ≤ 100 mA
- Cable with M12 male connector, 4-pin, 300 mm
- Housing material: Plastic ABS; Optics material: Plastic PMMA
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Enclosure rating: IP67
- Weight: 50 g
- Dimensions (H x L x W): 31mm x 20mm x 11mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with autocollimation/coaxial optics
- Detects transparent objects effectively
- Visible red light LED with 650 nm wavelength
- Adjustable potentiometer with 270° rotation
- IP67 rated for dust and water protection
- Includes stainless steel mounting bracket and reflector
- Polarizing filter for enhanced detection
Professional Installation Requirements
- Installation by qualified personnel is recommended to ensure correct sensor alignment and electrical connections.
Applications
- Industrial automation for object detection
- Detecting transparent objects in manufacturing
- Use in conveyor systems and packaging lines
Standards & Compliance
- AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Energy-efficient LED light source reduces power consumption
- Durable IP67 housing extends product life and reduces waste
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK WL8G-P1131S03 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and transparent object detection applications.
