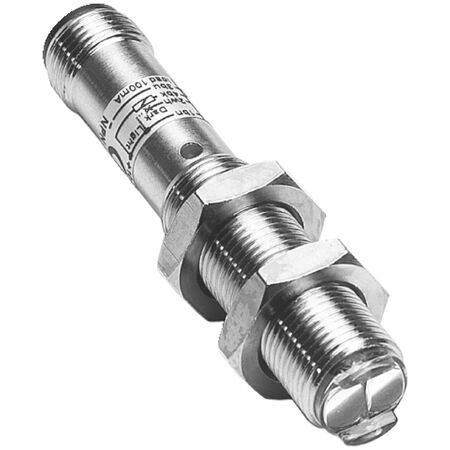

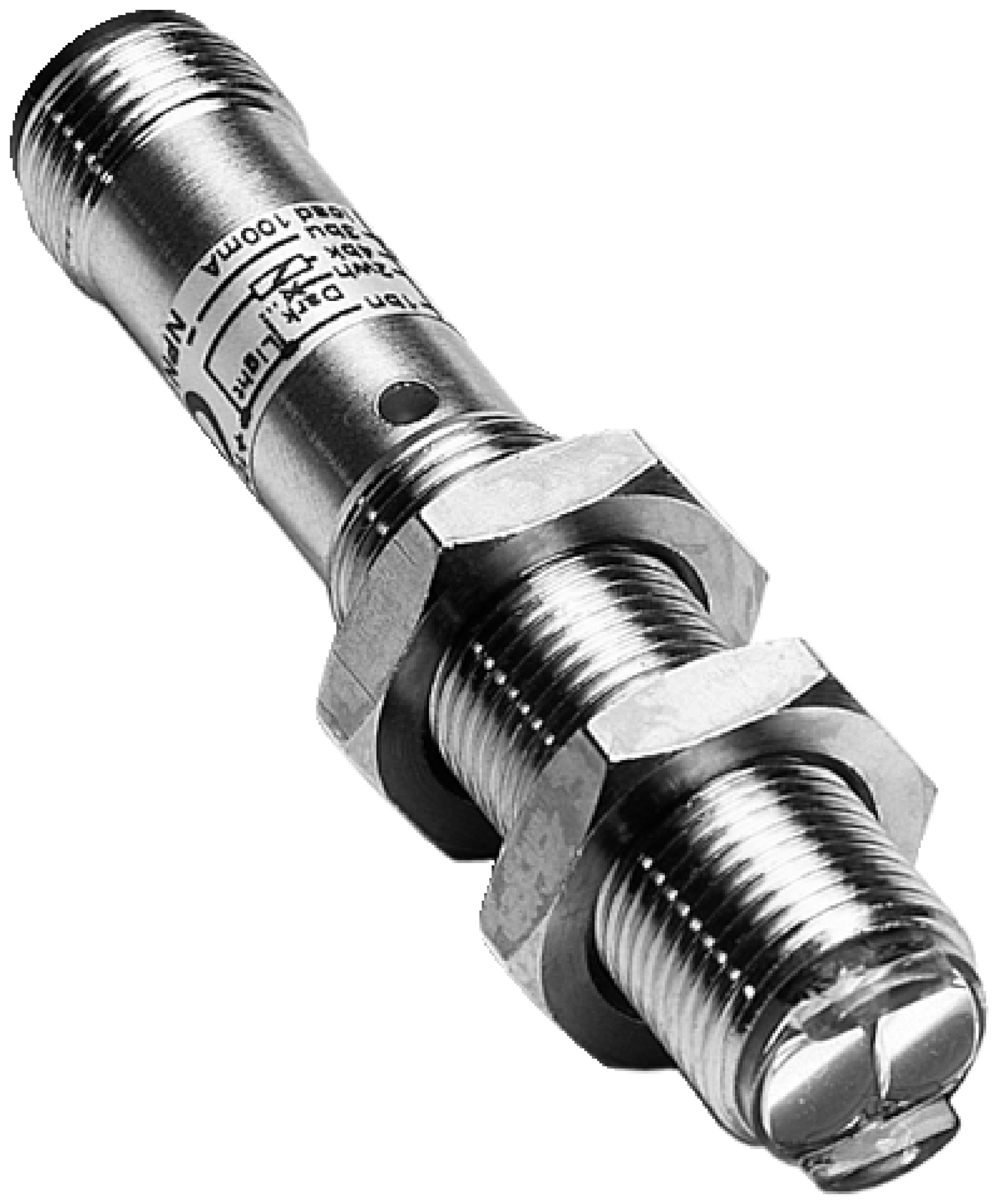

Photoelectric Retro-Reflective Sensor VL12-2P132 | IP67 Rated | Fast Response Time | Selectable Light/Dark Mode | by SICK
The Photoelectric Retro-Reflective Sensor VL12-2P132 is designed for industrial automation, featuring a sensing range of 0.03 m to 2.3 m and a fast response time of ≤ 1.25 ms. With an IP67 rating for dust and water protection, this sensor is perfect for safety and security systems, ensuring reliable performance in challenging environments.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 1.25 ms
- Switching frequency: 400 Hz
- Connection: 4-wire cable, 2 m length, PVC material
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +70 °C
- Housing material: Metal, nickel-plated brass/PA
- Optics material: Plastic, PMMA
- Light spot size at 2 m: Ø 80 mm
- Angle of dispersion: Approx. 2.3°
- Wave length: 660 nm
- Dimensions (H x L x W): 12mm x 55mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensing principle
- Visible red LED light source with 660 nm wavelength
- Sensing range from 0.03 m to 2.3 m
- Compact cylindrical metal housing with nickel-plated brass
- IP67 rated for dust and water protection
- Selectable light/dark switching mode
- Fast response time of ≤ 1.25 ms
- Polarisation filter included
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Safety and security systems
- Manufacturing process control
- Material handling and packaging
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with efficient LED light source
- Durable metal housing reduces waste through extended product life
- IP67 rating ensures protection against environmental contaminants
Warranty Information
Standard manufacturer warranty applies. Please refer to SICK's official warranty policy for details.
Available Now
The SICK VL12-2P132 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety system applications.
