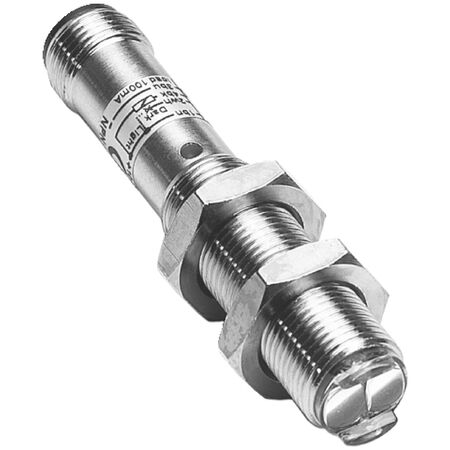

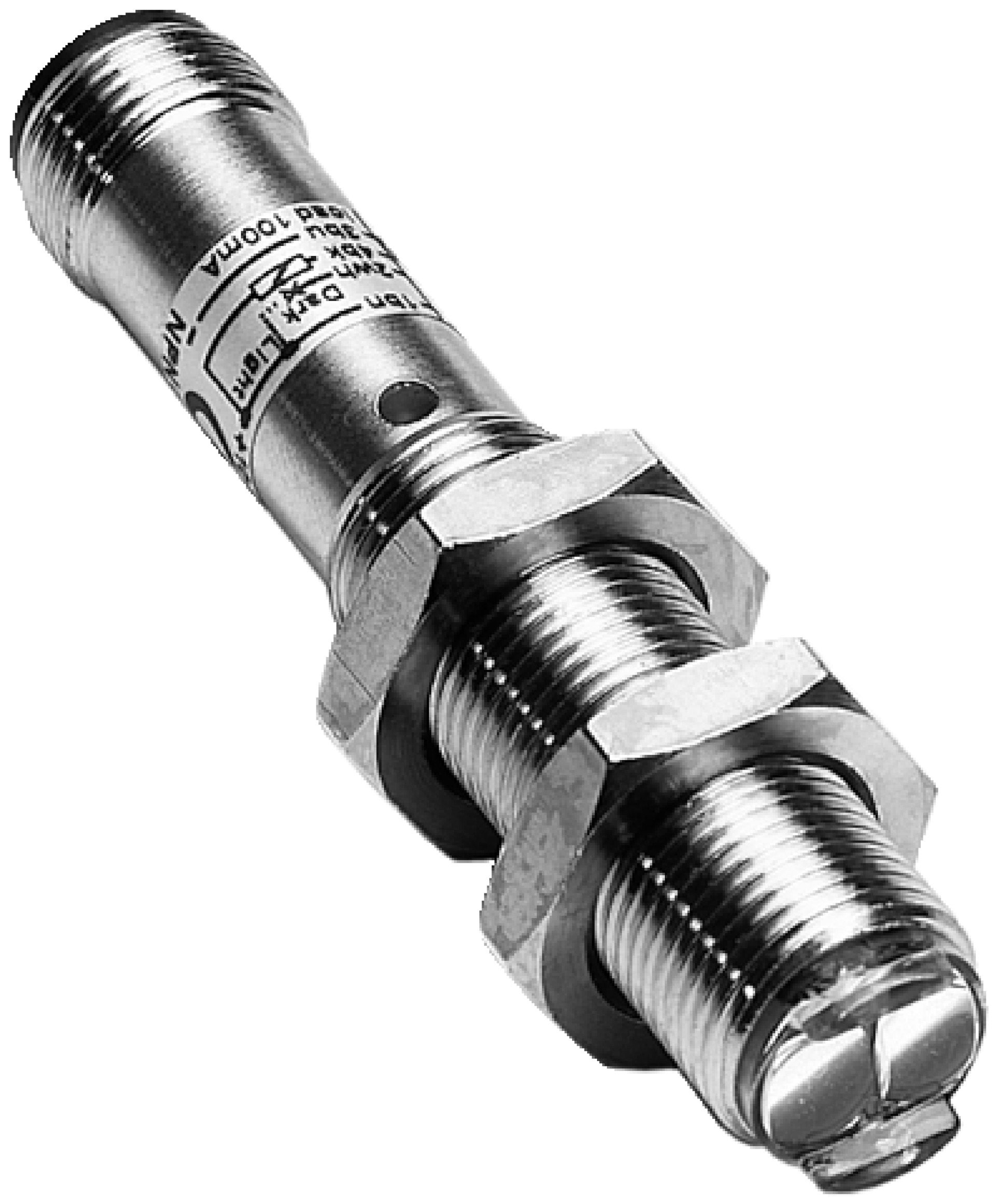

Photoelectric Retro-Reflective Sensor VL12-2P430 | IP67 Rated | Fast Response Time | Selectable Light/Dark Switching | by SICK
The Photoelectric Retro-Reflective Sensor VL12-2P430 is designed for industrial automation, featuring a sensing range of 0.03 m to 2.3 m and a fast response time of ≤ 1.25 ms. With an IP67 rated enclosure for dust and water protection, this sensor is perfect for safety and monitoring in manufacturing processes, ensuring reliable object detection in various applications.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 20 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 1.25 ms
- Switching frequency: 400 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Operating temperature range: -25 °C to +70 °C
- Housing material: Metal, nickel-plated brass/PA
- Optics material: Plastic, PMMA
- Polarisation filter: Yes
- Dimensions (H x L x W): 12mm x 66mm x 12mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensing principle
- Visible red LED light source with 660 nm wavelength
- Sensing range from 0.03 m to 2.3 m
- Cylindrical metal housing with nickel-plated brass and PA
- IP67 rated enclosure for dust and water protection
- Selectable light/dark switching mode via control cable
- Fast response time of ≤ 1.25 ms and switching frequency of 400 Hz
- Polarisation filter included for reliable detection
- Male M12, 4-pin connector for easy integration
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment for optimal performance.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 20 mA current draw
- Durable metal housing extends product lifespan reducing waste
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VL12-2P430 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
