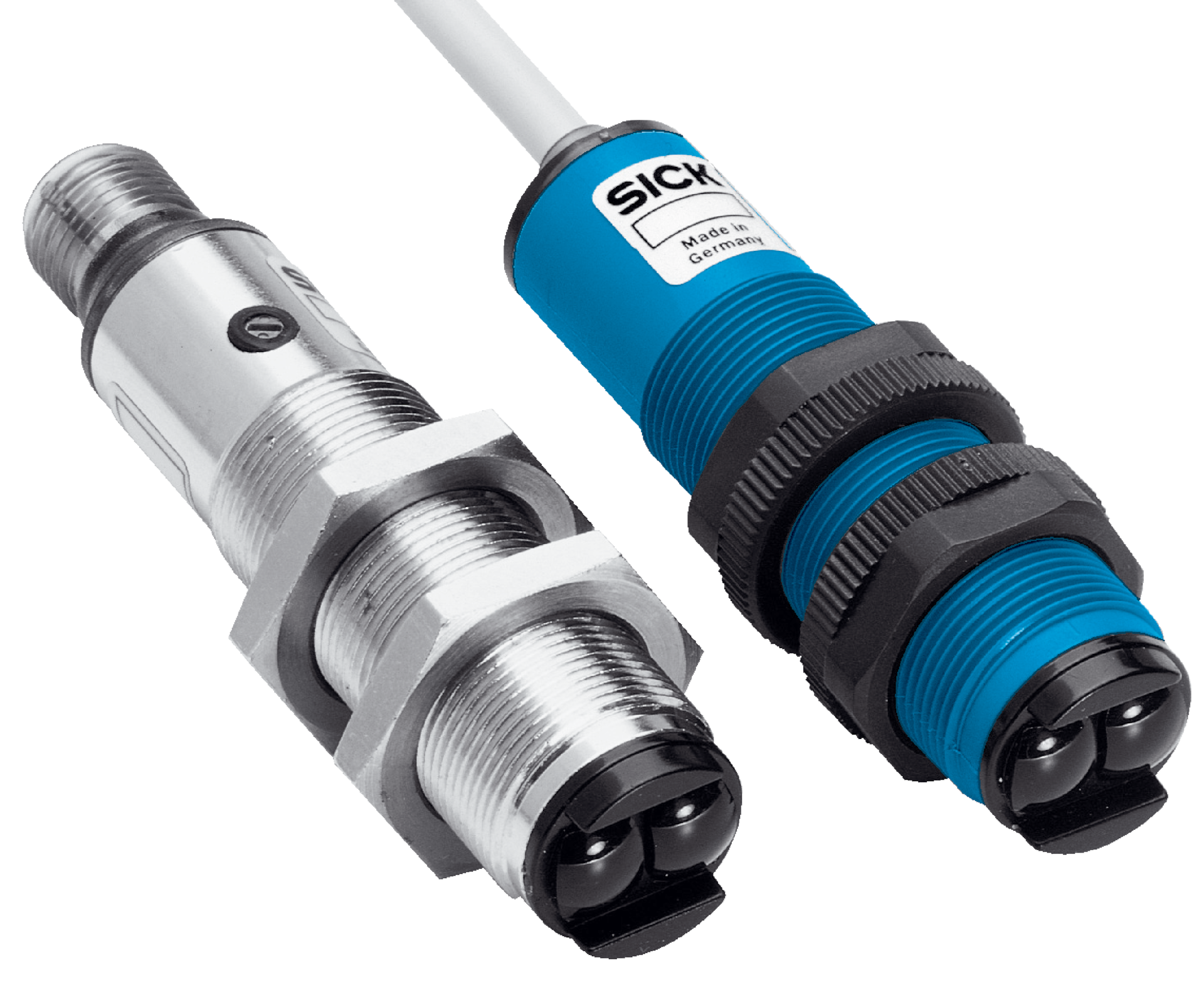

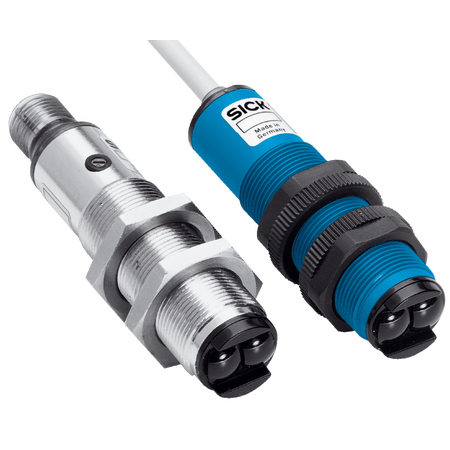

Photoelectric Retro-Reflective Sensor VL18-4P3640 | IP67 Rated | 250 Hz Switching Frequency | Selectable Light/Dark Mode | by SICK
The Photoelectric Retro-Reflective Sensor VL18-4P3640 is designed for industrial automation, featuring a high switching frequency of 250 Hz and an IP67 rated enclosure for dust and water protection. With selectable light/dark switching mode and a wide operating temperature range from -25°C to +70°C, this sensor is perfect for object detection and safety monitoring in manufacturing processes.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Alternatively Known As: Photoelectric Sensor VL18, Retro-Reflective Sensor VL18-4P3640, SICK Proximity Sensor
Technical Specifications
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP
- Switching mode: Light/dark switching selectable
- Output current max: ≤ 100 mA
- Response time: ≤ 2 ms
- Switching frequency: 250 Hz
- Connection type: Male M12, 4-pin connector
- Protection class: III
- Housing material: Plastic (PBT/PC)
- Optics material: Plastic (PMMA)
- Enclosure rating: IP67
- Operating temperature: -25°C to +70°C
- Weight: 100 g
- Polarizing filter: Yes
- Dimensions (H x L x W): 18mm x 78mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensing principle
- Visible red LED light source
- Axial optical axis with approx. 2.8° focus and angle of dispersion
- Selectable light/dark switching mode via control cable
- High switching frequency of 250 Hz
- IP67 rated enclosure for dust and water protection
- Wide ambient operating temperature range from -25°C to +70°C
- Polarizing filter included to reduce false triggering
Professional Installation Requirements
- Installation by a qualified technician or electrician is recommended to ensure proper wiring and sensor alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 housing reduces waste by extending product life
- Complies with China RoHS for hazardous substance reduction
Warranty Information
Standard manufacturer warranty applies; please refer to SICK's official warranty policy.
Available Now
The SICK VL18-4P3640 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
