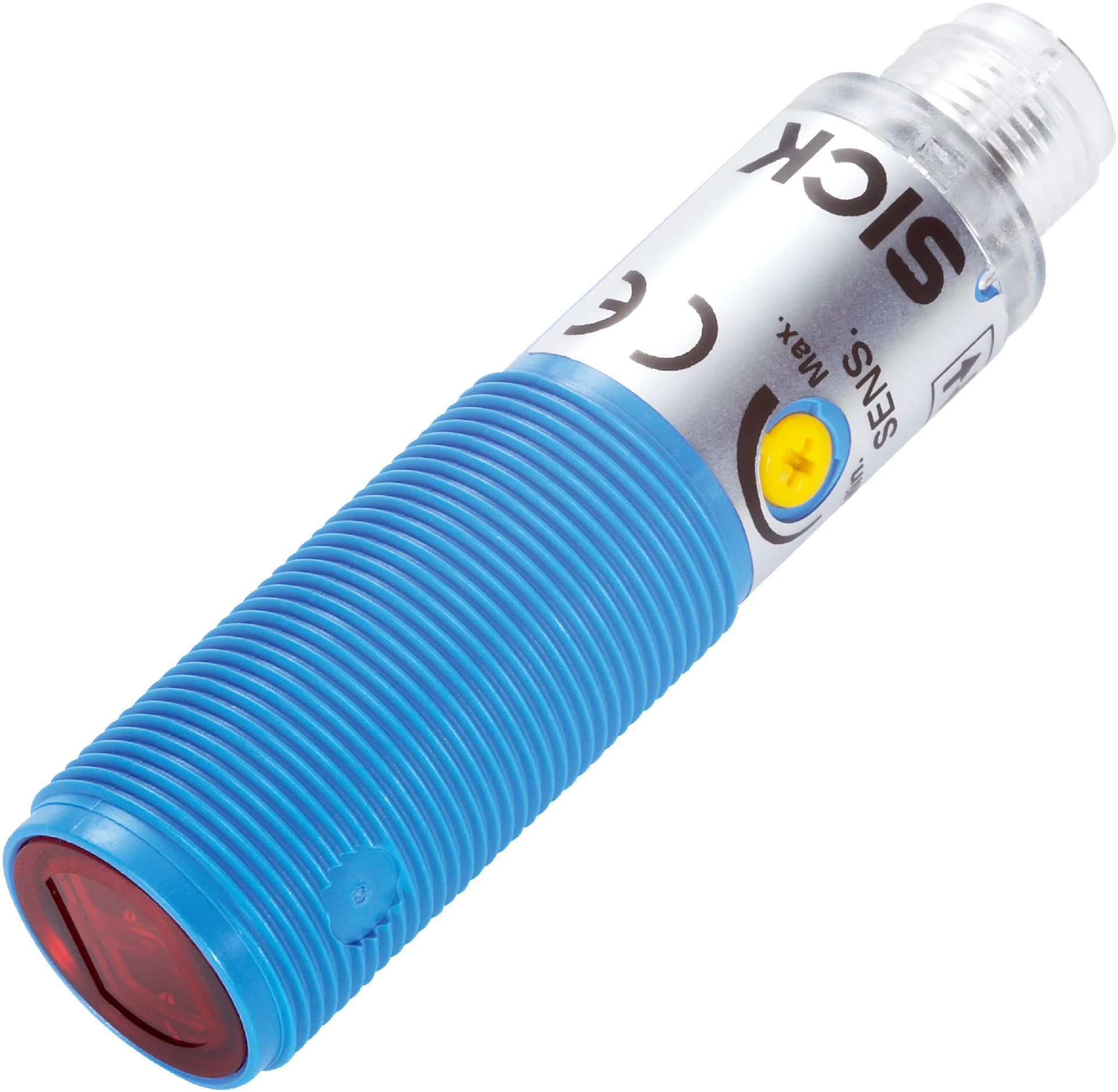

Photoelectric Retro-Reflective Sensor VL180 | Dual Lens System | IP67 Rated | Fast Response Time | by SICK
The Photoelectric Retro-Reflective Sensor VL180 is designed for industrial automation, featuring a dual lens system for precise object detection up to 7 meters. With a fast response time of ≤ 0.5 ms and an IP67 rated enclosure, it ensures reliable performance in challenging environments. Ideal for safety and monitoring in manufacturing processes, this sensor is built for durability and efficiency.
Please sign in so that we can notify you about a reply
Sign in
Please login to continue to your account.
Technical Specifications
- Functional principle: Photoelectric retro-reflective sensor with dual lens system
- Sensing range max: 0.05 m to 7 m
- Light source: Visible red LED, 645 nm wavelength
- Adjustment: Potentiometer, 270° sensitivity
- Supply voltage: 10 V DC to 30 V DC
- Current consumption: 30 mA
- Switching output: PNP, max output current ≤ 100 mA
- Switching mode: Light/dark selectable
- Response time: ≤ 0.5 ms
- Switching frequency: 1,000 Hz
- Connection: Male M12, 4-pin connector
- Protection class: III
- Enclosure rating: IP67
- Operating temperature: -25 °C to +55 °C
- Storage temperature: -40 °C to +70 °C
- Housing material: Plastic PBT/PC
- Optics material: Plastic PMMA
- Weight: 18 g
- Dimensions (H x L x W): 18mm x 70.2mm x 18mm
- Weight: 0.1 kg
Key Features
- Photoelectric retro-reflective sensor with dual lens system for minimum distance to reflector
- Visible red LED light source with wavelength of 645 nm
- Sensing range from 0.05 m to 7 m
- Potentiometer adjustment with 270° sensitivity control
- IP67 rated enclosure for dust and water protection
- Plastic housing made of PBT/PC and optics made of PMMA
- Fast response time of ≤ 0.5 ms and switching frequency of 1,000 Hz
- Selectable light/dark switching mode via control cable
- Includes reflector P250 and fastening nuts
Professional Installation Requirements
- Installation should be performed by a qualified electrician or technician familiar with photoelectric sensor systems to ensure proper wiring and alignment.
Applications
- Industrial automation for object detection
- Safety and monitoring in manufacturing processes
- Material handling and packaging systems
Standards & Compliance
- Complies with AS/NZS 3000 – Wiring Rules (Electrical Installation)
- Complies with AS/NZS 3820 – Essential Safety Requirements for Electrical Equipment
Environmental Benefits
- Low power consumption with 30 mA current draw
- Durable IP67 housing reduces need for frequent replacements
- Complies with China-RoHS for hazardous substance restrictions
Warranty Information
Standard manufacturer warranty applies; please refer to SICK for specific warranty terms.
Available Now
The SICK VL180-2P42436 Photoelectric Retro-Reflective Sensor is available for immediate purchase, ideal for industrial automation and safety applications.
